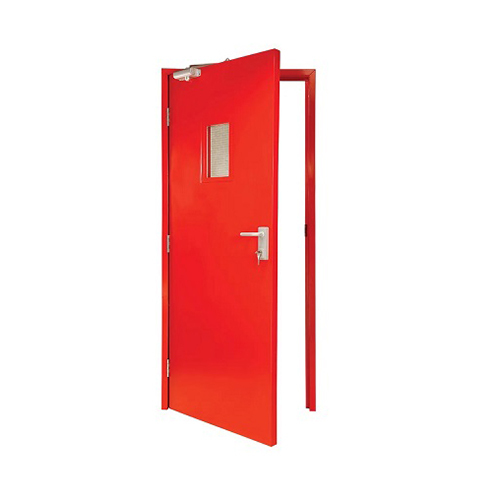

Fire Resistant Door - Stainless Steel, Custom Size, Red Oxide Primer | Fire Rating 120 Min, Vision Panel, Sound Insulation

Name: Fire Resistant Door
Price: 4100 INR
Availability: InStock

Price: 4100.00 INR / Square Meter

(4100.00 INR + 0% GST)

Get Latest Price

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Function	Fire Protection, Smoke Control, Compartmentation
Thickness	46 mm to 70 mm
Usage & Applications	Emergency exits, fire escape routes, stairwells, fire rated partitions
Coating Type	Fire retardant enamel / Powder coated
Anti Corrosion	Galvanized / Stainless steel for enhanced corrosion resistance
Security Features	Automatic door closer, intumescent fire seals
Surface Finish	Smooth, Matt / Glossy
Glass Thickness	6 mm to 12 mm (if applicable)
Height	Up to 2400 mm
Operating Temperature	Up to 1000C (fire exposure)
Tensile Strength	>240 MPa (steel sheets)
Weather Resistance	Yes
Load Capacity	Standard door leaf up to 150 kg
Finish Type	Powder coated, Painted
Capacity	Fire rating up to 120 minutes
Glass Type	Fire-rated ceramic or wired glass (as per requirement)
Color	Red oxide primer/Custom RAL shades
Mesh Type	Non-mesh solid core
Operation Type	Swing, single or double leaf
Width	Up to 1200 mm (single leaf), up to 2400 mm (double leaf)
Standard	IS 3614, BS 476 Part 22, EN 1634
Product Type	Other, Fire Resistant Door
Material	Other, Galvanized steel / stainless steel sheet with mineral wool infill
Size	Customizable as per requirement
Weight	Approx. 45-60 kg/m2
Application	Industrial, Commercial, Residential, Institutional Areas
Design Type	Flush, Double-skin, Seamless
Mounting Type	Wall-mounted
Window Type	Other, Vision panel (optional) with fire-rated glass
Product Model	FD-60/90/120
Locking Type	Mortise lock, panic bar, push/pull handle
Installation Type	Other, Pre-hung with frame
Price Type	fixed
Mop	1
Price	4100.00 INR (Approx.)
Product Unit	1 Square Meter/Square Meters
Brand Name	Diagonals Technologies
Moq	1
Currency	INR
Packsize	1
Color	Red oxide primer/Custom RAL shades
Returnable	No
Stock Quantity	5
Unit Type	Square Meter/Square Meters
Minimum Ordered Packs	1
Minimum Order Quantity	1
GSTIN	0%
