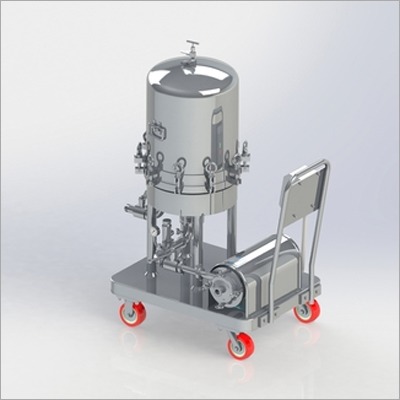

Filter Press Zero Hold Up By Riddhi Pharma Machinery Ltd

We are renowned manufacturer, supplier and exporter of Filter Press Zero Hold Up in Mumbai, Maharashtra, India available with following details.


Specifications:
Sizes available 8a , 14a , 18a , 24a & 33a Diameter
MOC SS 316 / 316L.
Available models 8a , 14a , 18a , 24a & 33a plate diameter.
Available with centrifugal / gear / lobe pump.
Fitted with pressure gauge, safety valve & airvent.
cGMP with documentation.
Sizes available 8a , 14a , 18a , 24a & 33a Diameter
MOC SS 316 / 316L.
Available models 8a , 14a , 18a , 24a & 33a plate diameter. Available with
centrifugal / gear / lobe pump. Fitted with pressure gauge, safety valve & airvent.
cGMP with documentation.

Technical Specification:
SIZE 8"DIA WITH 6 PLATES
DESIGN PRESSURE 4 KG/CM2.
FILTERATION AREA 0.20M2
CAKE HOLDING CAP- 4.9Ltr
OUT PUT LTR/HR 500Ltrs
STRUCTURAL SPECIFICATIONS:
SHELL- 2 MM
TOP GUSKET SILICON
KEYBOLT/WINGNUT/PIN 04 nos
TOP LID COVER 2 mm
PRESSURE GAUGE 0 TO 7 KG-SS.
AIR VENT VALVE 1/4bsp
BOTTOM PLATE 10mm
PRESSURE BUSH CUP 06nos
FILTER PLATES 8"DIA 06 nos
FILTER SIEVES 07 nos
CAVENGER(GRUV) PLATE 10 MM 01NO
SIDE TIE RODS 04 nos
CENTRE ROD 01 NO
BOTTOM WASHER 01 NOS SILICON
TRANSFER VALVE 1/2"BSP
OUT LET BALL VALVE 1/2"Bsp
DETAIL OF PUMP
HEAD 3Mtr
INLET &OUTLET 3/4" od nozel
MOC- 304 SS
COUPLING MONOBLOCK
SEAL- 22 Dia TC v/sTC.
MOTOR- 1 HP HBB -2800 RPM 3PHASE.
PUSH BUTTON BCH MAKE
WORKING PRESS. 0- 2 kg/cm2.
