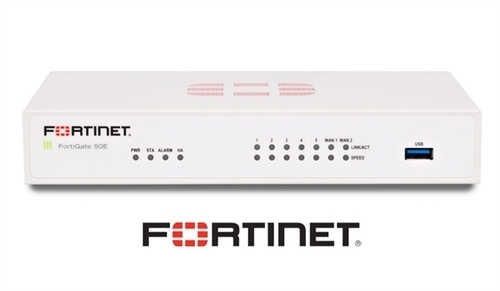

Fg-50e Fortinet Dimension(l*w*h): 5.5x8.52.1.44 Inch (In)

Firewall Throughput
(1518/512/64 byte UDP) 0.95 Gbps **** 2.5 Gbps **** 3 / 3 / 3
Gbps
4 / 4 / 4
Gbps
7.4 / 7.4 / 4.4
Gbps
Firewall Latency 130 s 180 s 3 s 3 s 3 s
Concurrent Sessions 900,000 1.8 Million 1.3 Million 1.3 Million 2 Million
New Sessions/Sec 15,000 21,000 30,000 30,000 30,000
Firewall Policies 5,000 5,000 5,000 5,000 10,000
IPsec VPN Throughput (512 byte) 1 75 Mbps 90 Mbps 2 Gbps 2.5 Gbps 4 Gbps
Max G/W to G/W IPSEC Tunnels 200 200 200 200 2,000
Max Client to G/W IPSEC Tunnels 250 250 500 2,500 10,000
SSL VPN Throughput 35 Mbps 100 Mps 150 Mbps 200 Mbps 250 Mbps
Concurrent SSL VPN Users
(Recommended Maximum, Tunnel Mode) 100 200 200 200 500
IPS Throughput (Enterprise Mix) 2 300 Mbps 350 Mbps 400 Mbps 450 Mbps 500 Mbps
SSL Inspection Throughput (IPS, avg. HTTPS) 3 125 Mbps 150 Mbps 135 Mbps 135 Mbps 130 Mbps
Application Control Throughput (HTTP 64K) 2 400 Mbps 450 Mbps 650 Mbps 900 Mbps 1 Gbps
NGFW Throughput (Enterprise Mix) 2, 4 200 Mbps 220 Mbps 250 Mbps 360 Mbps 360 Mbps
Threat Protection Throughput (Ent. Mix) 2, 5 150 Mbps 160 Mbps 200 Mbps 250 Mbps 250 Mbps
Max FortiAPs (Total / Tunnel) 2 / 2 10 / 5 30 / 10 32 / 16 64 / 32
Max FortiSwitches 8 8 16 16 24
Max FortiTokens 500 500 500 500 5,000
Max Registered FortClient 200 200 200 200 600
Virtual Domains ( Default/Max) 5 / 5 5 / 5 10 / 10 10 / 10 10 / 10
Interfaces 5x GE RJ45 7x GE RJ45 10x GE RJ45 14x GE RJ45, 2x Shared
Port Pairs
20x GE RJ45, 2x Shared
Port Pairs
Local Storage 32 GB (51E) 128 GB (61E) 128 GB (81E/-POE) 480 GB (101E)
Power Supplies Single AC PS Single AC PS Single AC PS Single AC PS Single AC PS, opt. Ext RPS
Form Factor Desktop Desktop Desktop Desktop 1 RU
Variants WiFi, 3G4G, LENC
