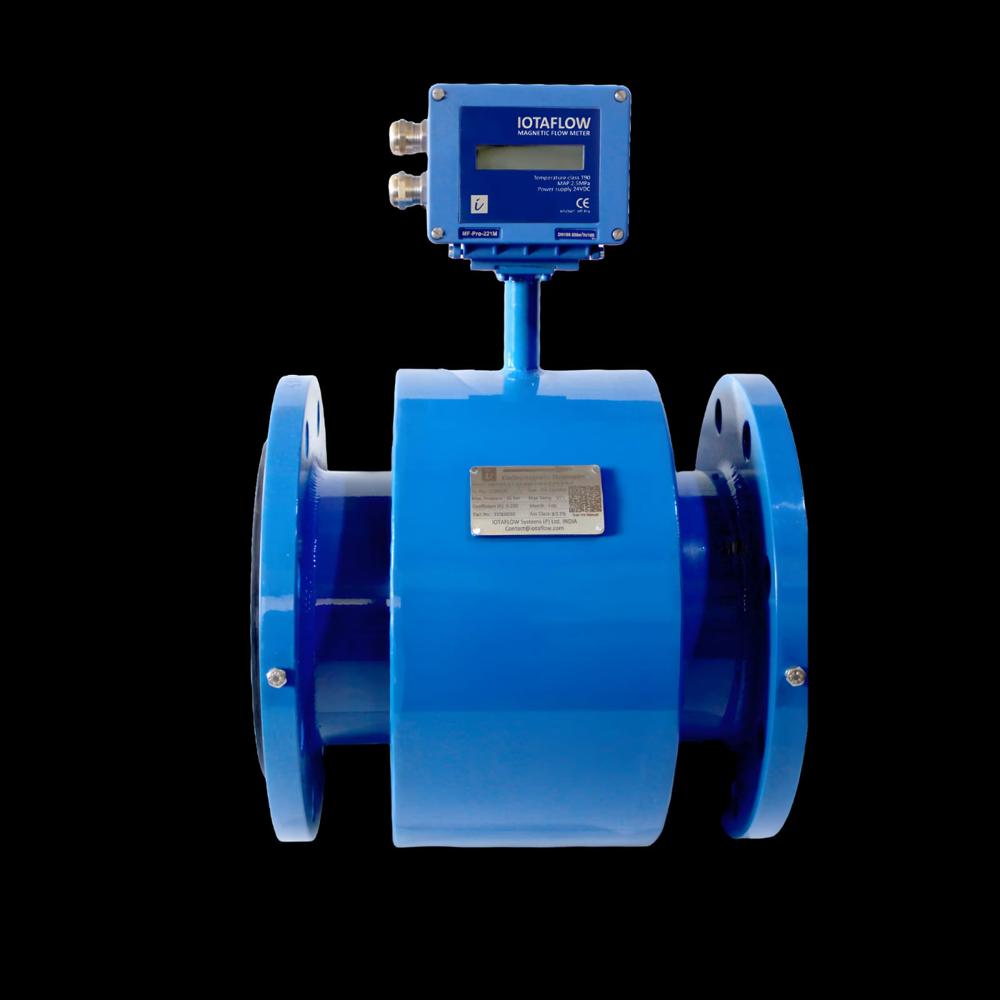

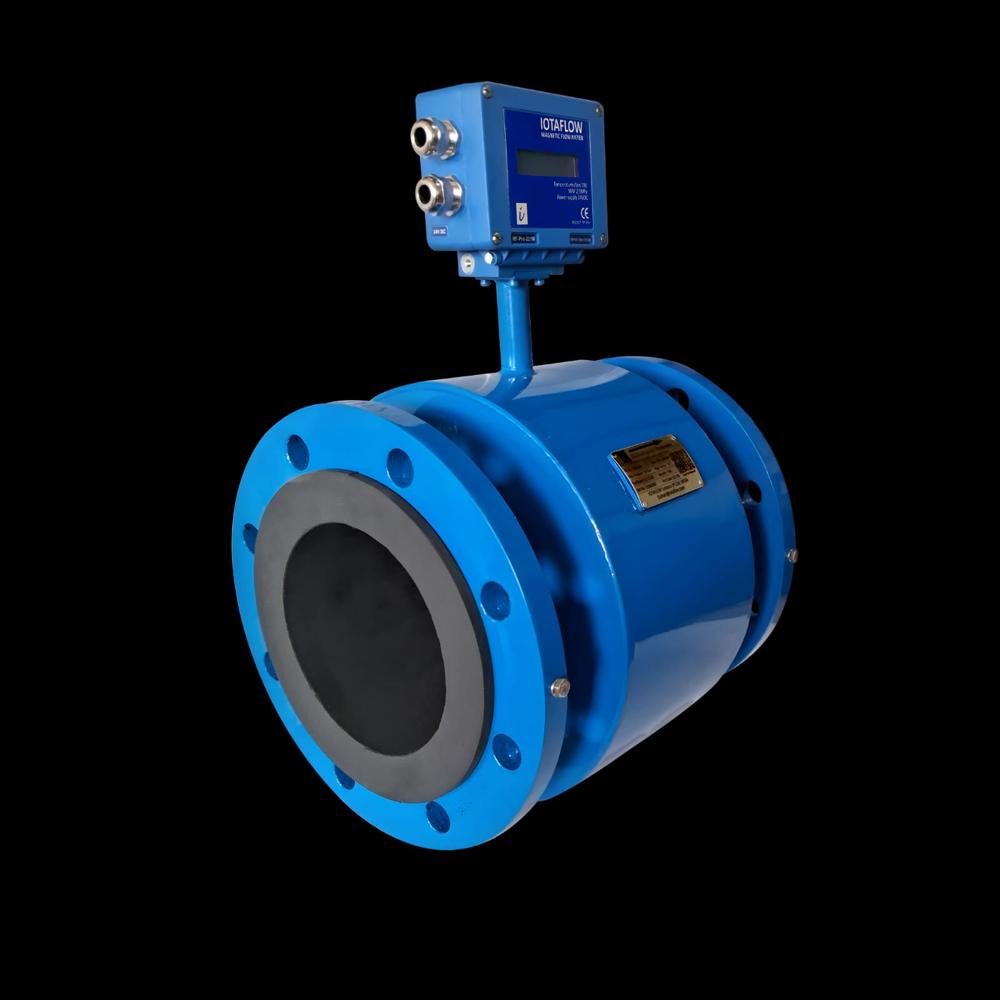

Electromagnetic Flow Meter

Name: Electromagnetic Flow meter
Price: 35400 INR
Availability: InStock

Price: 35400.00 INR / Number

(30000.00 INR + 18% GST)

Get Latest Price

MRP:

35400.00 INR / Number

Weight :

15.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-3+

Product Specifications

Pressure Range	Up to 16 bar
Length	Depends on diameter Meter (m)
Model	IOTAFLOW
Mounting	Flange Mounting
Current Range	4-20 mA Milliamperes (mA)
Language	English
Resolution	0.001 m3/h
Process Connection	Flanged
Flow Rate	User selectable (m3/h, L/h, L/min)
Velocity Range	0.05 m/s to 10 m/s
Color	Blue
Frequency	50 / 60 Hz Hertz (HZ)
Stability	Long-term Stability (<0.1% per year drift)
Diameter	15 mm to 600 mm Meter (m)
Dimension (LWH)	Depends on diameter (Customized) Meter (m)
Sensitivity	High
Equipment Type	Electromagnetic Flow Meter
Response Time	< 0.5 seconds Hours
Measuring Units	m3/h, L/h, L/min
Signal Type	Analog / Digital
Connecting Type	Flanged Ends
Input	Pulse / Current Loop
Operating Temperature	-10C to +60C Fahrenheit (oF)
Storage Temperature	-20C to +70C Fahrenheit (oF)
Housing Material	Mild Steel (Powder Coated)
Application Media	Liquids (Conductive)
Axis Type	Single (Inline)
Humidity %	0-95% non-condensing
Sensor Type	Magnetic
Protection	IP65 / IP68
Connectivity Type	Wired
Connector	Cable Gland
Output	4-20 mA, RS485, Pulse
Temperature Range	-10C to +60C Celsius (oC)
Measurement Range	0-6000 m3/h (Pipe size dependent)
Usage	Industrial/Water flow measurement
Material	Mild Steel with FEP/PTFE Lining
Size	DN 20- DN 250
Power Supply	230V AC / 24V DC
Height	300 Meter (m)
Power Consumption	< 15 VA Volt (V)
Product Type	Magnetic Flow meter
Weight	15 Kilograms (kg)
Accuracy	0.5% of reading %
Display Type	Digital Only
Width	300 Millimeter (mm)
Range	0.05 m/s to 10 m/s
Delivery Time	5 Week
Color	Blue
Brand Name	IOTA
Returnable	No
Currency	INR
Stock Quantity	30
Weight	15.00 Kilogram
Shipping Type	actual
Mop	3
Pkg Box Length	300.00 inches
Pkg Box Height	25.00 inches
MRP	35400.00 INR
GSTIN	18%
Packsize	1
Price Type	fixed
Price	30000.00 INR (Approx.)
Pkg Box Breadth	300.00 inches
Unit Type	Number
Minimum Ordered Packs	3
