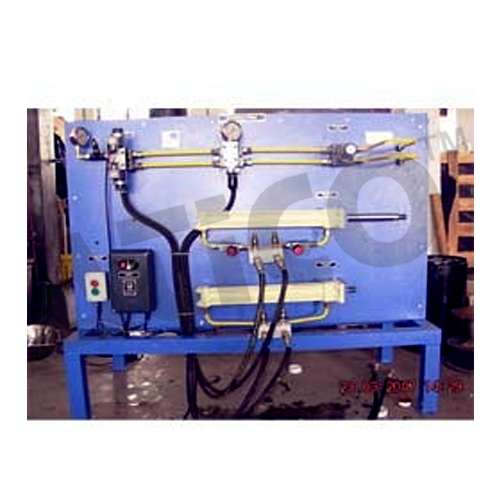

Electrohydraulic Trainer - Precision Honed Cylinders 160 Bar, 0.020mm Run Out | Mobile Unit, Software Simulation, Class A Cleanliness, Two Pressure Relief Valves

We are highly exalted manufacturer, supplier and exporter of a precision range of ElectroHydraulic Trainer in Ambala, Haryana, India available with following details: Specifications: 1. software for simulation of Hydraulic circuits. 2. We are manufacturing cylinders for industrial applications. Our cylinders can withstand pressure up to 160 Bar. 3. Mobile and self-contained unit, only electrical connections are required. 4. Simplicity of operation and designed for amateur use. 5. Two pressure relief valves are provided in the system. One is provided inside the tank to increase the safety. 6. Hoses can withstand pressure of 188 Bar. 7. Test Pressure : 80 Bar ; Operating Pressure : 40 Bar. 8. Realistic Industrial circuits are demonstrated 9. Special Bell housing is provided to maintain the Run out between Pump and Motor below 0.020mm. 10. Special fixtures used for pipe bending and ferrule fitting arrangement. 11. Specially designed front mounting plate. 12. System is flushed with very high velocity (4 times the working pressure) by separate oil which maintains class A cleanliness of system. 13. Lowest pressure drop in the system to avoid overheating. 14. Cylinder are manufactured from precision honed tubes, hardened ground, hard chrome plated piston rods and imported quality seals.
