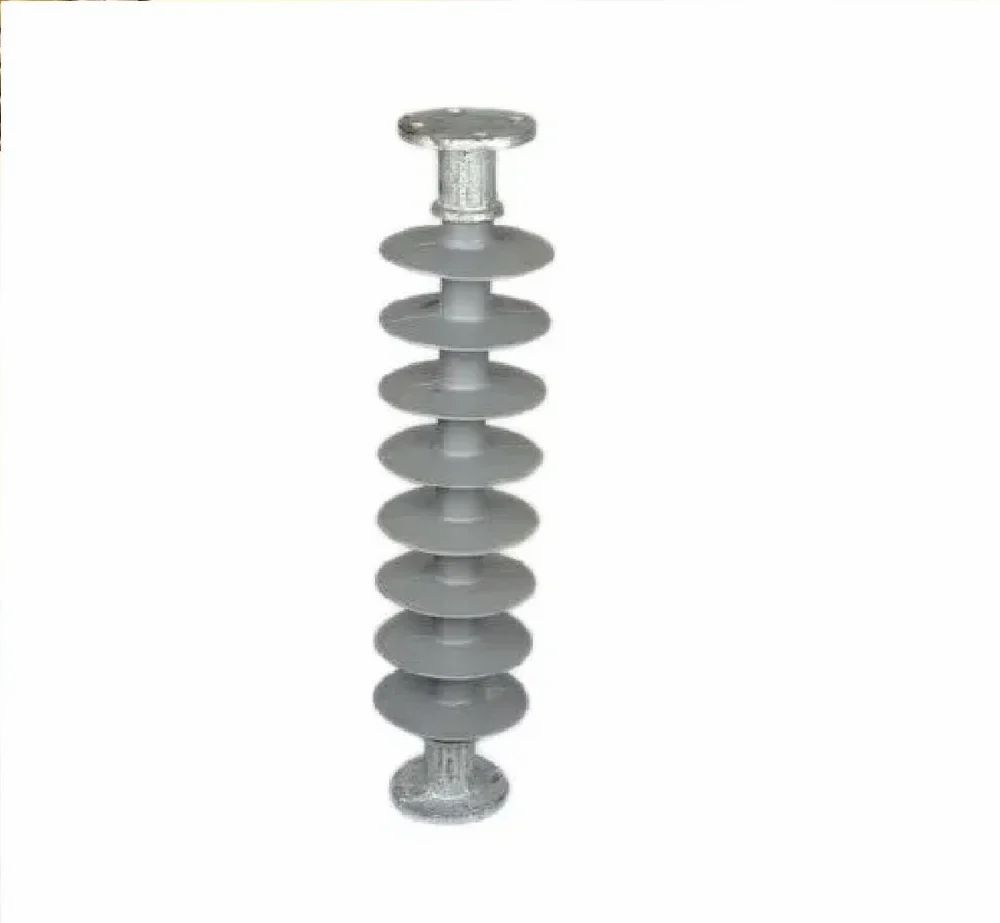

Electrical Insulators - Application: Industrial

Electrical Insulators are crucial components in electrical systems, preventing unwanted current flow and ensuring safety. Here's a detailed overview of their specifications:

General Specifications- Material: Ceramics (porcelain, alumina), glass, polymers (epoxy, silicone, EPDM), composites
- Voltage Rating: Low voltage (LV: <1 kV), medium voltage (MV: 1-36 kV), high voltage (HV: >36 kV)
- Insulation Resistance: Typically >109 ohms
- Dielectric Strength: Withstand voltage (e.g., 10 kV/mm for ceramics)

Mechanical Specifications- Tensile Strength: Resistance to stretching forces (e.g., 50-100 MPa for porcelain)
- Compressive Strength: Resistance to crushing forces (e.g., 500-1000 MPa for porcelain)
- Bending Strength: Resistance to bending forces (e.g., 50-100 MPa for porcelain)

Environmental Specifications- Temperature Range: Typically -40C to +80C (varies by material)
- Humidity Resistance: Resistance to moisture and humidity
- UV Resistance: Resistance to ultraviolet radiation
- Pollution Resistance: Resistance to environmental pollutants (e.g., salt, dust)

Standard Specifications- IEC (International Electrotechnical Commission): IEC 60071, IEC 60815
- ANSI (American National Standards Institute): ANSI C29.1, ANSI C29.2
- IEEE (Institute of Electrical and Electronics Engineers): IEEE Std 4, IEEE Std 48
- IS (Indian Standards): IS 731, IS 3188
