Electric Driven Pumps

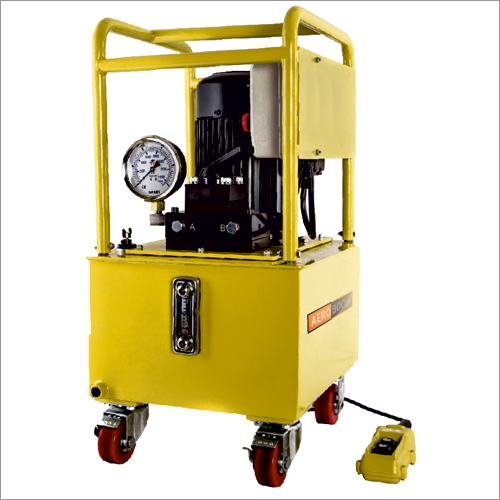

We are trader & supplier of Electric Driven Pumps in Navi Mumbai, Maharashtra, India. Specification: HIGH TONNAGE DOUBLE-ACTING CYLINDERS, SINGLE OR MULTIPLE CYLINDER APPLICATIONS. UP TO 1,000 TONS Two-speed high output pump delivers up to 5 gpm of oil. Low noise level of 73-80 dBA. Integral electrical shut-down feature prevents unintentional restarting of motor following an electrical service interruption. Over-current protection prevents damage to motor as a result of overheating. Stop and Start control buttons are 24 volt. PE4004 has a 4-way/3-position manual valve. The PE4004S has a 4- way/3-position solenoid valve with a 24 volt remote hand switch. External pressure relief valve is adjustable from 1,500 to 10,000 psi. Heavy duty 4" dia. casters assure easy maneuvering. 20 gallon (3,927 cu. in. usable) reservoir has a low oil level sight gauge. Powered by a dual voltage 10 hp, 3 phase, 1,725 rpm motor. 3 phase motor has all the electrical components necessary to operate the pump.The customer has no hidden charges when making purchase. Deliver 1,200 cu. in./min. of oil @ 200 psi, 420 cu. in./min. of oil @ 10,000 psi. Order No. Max Pressure Output (psi) rpm dBa at Idle and 10,000 (psi) Amp Draw 115 V - at 10,000 (psi) Oil Del. (cu. in./min. @) A (in.) B (in.) C (in.) D (in.) E Caster Mfg. (in.) F Caster Mfg. (in.) Prod. Weight w/ Oil (lbs.) 200 (psi) 1,200 (psi) 5,000 (psi) 10,000 (psi) PE4004 10,000 1,725 73/80 34 @230 V. 1,200 1,050 450 420 36 3/8 25 24 21 1/4 15 1/2 21 1/2 492 PE4004S 10,000 1.725 73/80 17 @460 V. 1,200 1,050 450 420 36 3/8 25 24 21 1/4 15 1/2 21 1/2 506 * Add 5" and 8 lbs. when casters are mounted. (Units are supplied with four 4" dia. swivel casters.) Order No. For Use with Cyl. Type Description Valve Type Valve No. Valve Function Motori? i? Reservoir Usable (cu. in.) PE4004 Double-Acting 10 hp pump with 20 gal. reservoir and manual valve. 4-Way 9506 Advance Hold Return 10 hp, 208/230/460 volt* 60 Hz, 3 Phase 3,927i? PE4004S Double-Acting PE4004, except has solenoid operated remote valve. 4-Way 9512* Advance Hold Return 10 hp, 208/230/460 volt* 60 Hz, 3 Phase 3,927i? * Factory wired for this voltage. For 230V, 60Hz order PE4004S-230. **Solenoid valve with remote control. i? Usable oil is calculated with oil fill at recommended level at 2 1/4" below cover plate. i? i? PE400 series available in 220/380V, 50Hz and 575V, 60Hz. Please specify when ordering. Example: PE4004-50-380 or PE4004-575. NOTE: Valves for spring return cylinders are available upon request. Consult the factory.
