Name: Efficient Municipal Solid Waste Drum Screening Machine Garbage Vibration Screening Machine
Price: 6709 USD
Availability: InStock

Efficient Municipal Solid Waste Drum Screening Machine Garbage Vibration Screening Machine - Capacity: 50 T/hr

Price: 6709 USD / Unit

Get Latest Price

Minimum Order Quantity :

5 Unit

In Stock

Product Specifications

Type	Efficient Municipal Solid Waste Drum Screening Machine Garbage Vibration Screening Machine, Other
Operating Type	Automatic
Usage Level	Other
Portable	No
Recyclable	Yes
Dimension (LWH)	customized Meter (m)
Weight (kg)	2000 Kilograms (kg)
Color	customized
Capacity	50 T/hr
Payment Terms	Paypal, Telegraphic Transfer (T/T), Others, Letter of Credit (L/C)
Supply Ability	35 Per Month
Delivery Time	2-3 Week
Sample Available	No
Sample Policy	Contact us for information regarding our sample policy
Packaging Details	container
Main Export Market(s)	Asia
Main Domestic Market	All India
Certifications	CE,ISO,CCC

Product Overview

Key Features

Municipal solid waste drum screening machine garbage vibration screening machine, construction waste sorting equipment

PRODUCT DESCRIPTION

Description of Trommel screen

As people focus more on resources, environment, and sustainable development, theyve concerned more about waste recycling, thus garbage recycling has become a very potential and profitable industry.

Trommel screen, or rotary screen, is a kind of mechanical screening machine which is widely used in the rubbish separation plant. It controls the material separation by the particle size, and the separation precision is high. The cylinder of the trommel screen is generally divided into several sections, depending on the specific situation. The mesh holes are arranged from small to large, and the mesh hole diameter on each section is the same.
Trommel screen is mainly composed of motor, reducer, roller device, frame, sealing cover, inlet, outlet.

Working Principle ofTrommel screen

Urban waste, construction waste, or stale waste enters the feeder Belt conveyor Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) Magnetic separator(sorting metal) Air separation machine(Screening waste by materials weight).
Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the baller machine.

APPLICATION

Application of rotary trommel screen

Urban or Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc.Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks, waste plastics, waste metal, waste bamboo and wood, industrial waste.All of these sorted waste can be recycled after reprocessing.

Parameters of rotary trommel sieve

Model	Weight(t)	Motor Power(kw)	Working time(h)
KTS1000*3000mm	2	4.4	8-10
KTS1200*4000mm	3	6	8-10
KTS1500*6000mm	4	8	8-10
KTS1800*6000mm	6	11	8-10
KTS2000*6000mm	7	15	8-10
KTS2000*8000mm	8	15	8-10
KTS2200*8000mm	10	22	8-10
KTS2500*8000mm	15	30	8-10
KTS2800*11000mm	19	37	8-10

Advantages of rolling drum screen separator

1. High sorting rate. Kunteng municipal recycling facility adopts a special design which greatly improves the efficiency. The sorting rate is so high that can reach 90%. Therefore, it is highly appreciated by foreign customers. 2. Superior parts. Due to the serious attitude of the Kunteng garbage recycling plant, we are dedicated to doing our best. The parts we adopt all have excellent quality. For example, stainless steel has an anti-corrosive function. The frame adopts international steel welding,which has a compact structure.
3. Automation. The waste recycling systems are fully automatic. Therefore, the whole operation
process just needs few people to manage, which saves large labor costs and reduces the rate of mistakes. 4. Environmental method.
All-electric machinery is covered with an anti-noise outer cover. Therefore, the noise can be controlled to less than 80db.
5.Safety design. We all know the health of humans is crucial. When we design this waste recycling plant for sale, we give pride of place to the health of workers.

RELATED PRODUCTS

WHOLE PRODUCTION LINE

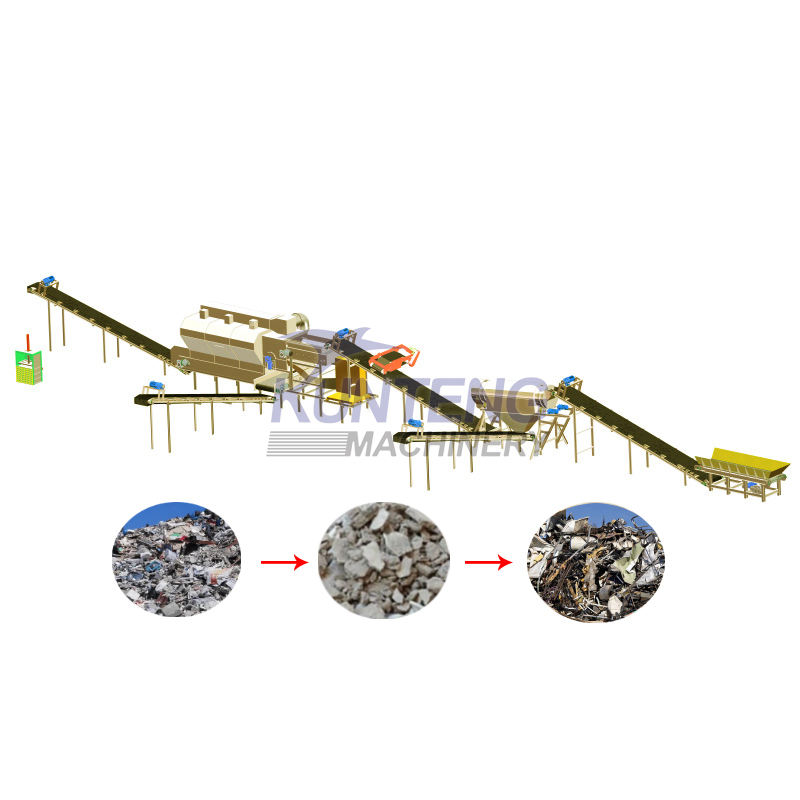

Trommel Screenwaste sorting line

Kunteng Garbage segregation machine also called garbage sorting machine, which can separate various garbage like urban waste, construction waste, industrial wastes as well as mining waste. We have learned from the advanced waste sorting technology of developed countries and combined our own designs together with the technology to create our own waste sorting machine with high-cost performance. Now this plant has gained a good reputation and sold well in Europe, Southeastern Asia, South Africa and Australia, etc. At present, Guoxin has different types of the plant for sale according to different capacities for our clients to choose from.

COMPANY PROFILE

About Kunteng

Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting machines. include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.

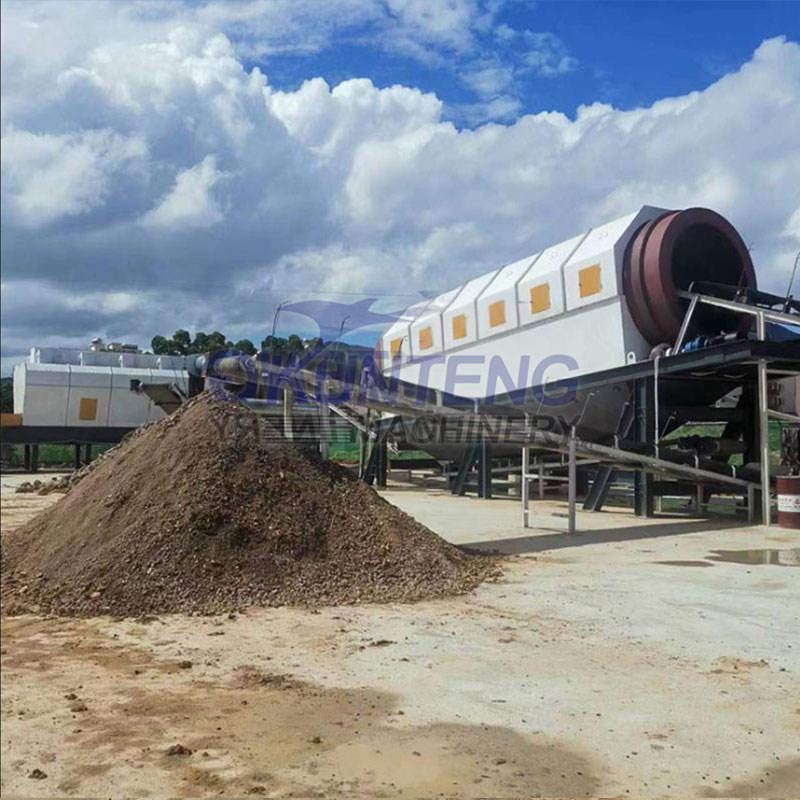

CUSTOMER INSTALLATION SITE

PACKING & SHIPPING

FAQ

Q1. Are you factory or trade company?

A1. We are manufacturer, we also supply trade service.

Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.

Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.

Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
