E-plane Tee - Brass Material, Power Decision Application | Precision Engineering For Optimal Performance

E-plane Tee - Brass Material, Power Decision Application | Precision Engineering For Optimal Performance

Get Latest Price

Minimum Order Quantity :

1

Brand Name :

Vidyut

In Stock

In Stock

Product Specifications

SizeWR-90 (standard), customizable sizes available
Range8.2 GHz to 12.4 GHz (X-band)
Mounting TypeFlange mount
Shelf Life10+ years under standard conditions
Operating Temperature-40AdegC to +85AdegC
Connectivity TypeFlanged
Interface TypeRectangular waveguide flange
FeaturesLow VSWR, High precision flange, Corrosion resistant, Wide frequency range
FrequencyX-band (8.2 to 12.4 GHz)
ModelE-Plane Tee (WR-90 Example)
Product TypeE-Plane Tee
ApplicationTo dicide the power
Dimension (L*W*H)120mm x 70mm x 50mm
MaterialBrass
WeightApprox. 500 g
CapacityHandles power levels up to 1 kW
Delivery Time7-10 Days

Company Details

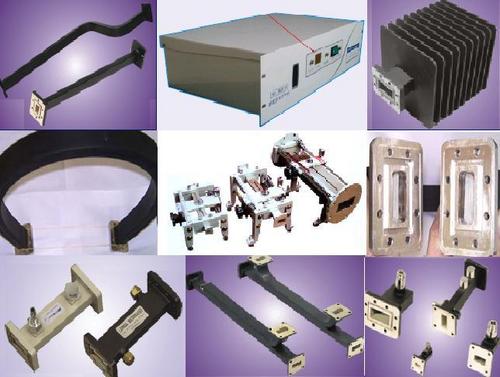

Vidyut Yantra Udyog has produced and sold a wide range of microwave instruments and components since its founding in 1974. Today, customers can get Waveguide Taper Transitions, Three Stub Band Stop Filter, Heavy Duty Waveguide Filter, Precision Sliding Termination and a lot more products from our manufacturer and supplier firm. With the best raw materials and most advanced technologies, our highly skilled and efficient workforce produces extraordinary results. These goods are therefore quite popular in many niche marketplaces all over the world.Our companys primary competitive advantage is its highly effective Research & Development division. The active collaboration of our research associates allows us to offer a cutting-edge range of microwave components and instruments. We have constructed a fully equipped produ

Business Type

Exporter, Manufacturer, Supplier

Employee Count

16

Establishment

1974

Working Days

Monday To Sunday

GST NO

09ACFPJ4959G1ZB
