Digital Ultrasonic Detector (Ut)

With a sole aim in delivering quality products, we are the prominent Exporter & Manufacturer of Digital Ultrasonic Detector (UT) in Dandong, Liaoning, China.

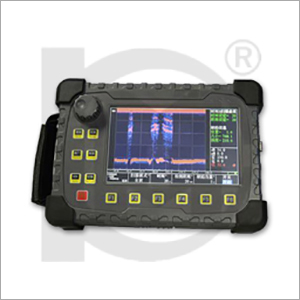

RSTUD-6 digital ultrasonic detector is the miniaturization of portable ultrasonic testing instrument, which is especially suitable for the assessment and positioning of material defects, thickness measurement, etc. It suitable for measurement of all kinds of large-size workpiece and meet the requirement of high resolution.
Main Technical Specifications

Pulser/receiver
Pulser Energy: 250V/450V
Pulse Width: 40i 1000ns
Acquisition Freq.: 150MHzi max.i
Pulse Repetition Freq. (RPT): 60Hzi 1980Hz
Damping: 50IC/150IC/200IC/500IC
Pulse Mode: Pulse Echo/Dual/Through Transmission
Resolution: a Y45dBi 5N14i
Average Electrical Noise: a clip_image001.gif40 i '10i -9V / Hz

Amplification/Rectification
Sensitivity Margin: a Y66dB(200mm depthi I 2 FBHi
Gain: 0i 110dB; step 0.1dB/1dB/2dB/6dB/12dB
Frequency band (-3dB): Wide band: 0.5~20MHz;
Band pass: 1~5MHz/2~10MHz/5~20MHz
Amplification Accuracy: A 1dB/40dB
Vertical Linear Error: a 3i
Auto Gain: 10i i 90i
Dynamic range: a Y40dB
Rectification: Positive halfwave, Negative halfwave, Fullwave and RF

Timebase
Testing Range: 0i 20m; Adjustable Step 0.1, 1 and 10mm
Horizontal Linear Error: a 0.1i
Sound Velocity: 250~16000m/s, step 1m/s
Zero offset (delay): 0i 1000.0us
Display Shift: 0~1000.0mm; Adjustable Step 0.1/1mm

Signal Processing
Reject (Suppression): 0i 90i Linear
