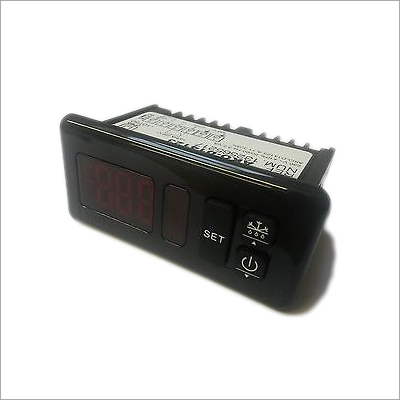

Digital Thermostat Temperature Controller Application: Industrial

- High precision with 0.1C / 0.1F for better readability and market requirement.
- Wide temperature measuring range from -40C to +150C.
- High performance and durable thermoplastic materials housing.
- Water and humidity proof on front panel.
- High working temperature up to 70C ambient.
- Heating / Cooling control possible.
- Cooling control with auto or manual defrost cycling.
- Internal buzzer or output relay for alarm application.
- Configuration of parameter via smart card.

General Specifications :
- Control temperature range : -40C ~ +150C / -40F ~ + 302F
- Maximum ambient temperature : 70C
- Input power : 12V~24Vac/dc, 120Vac, 220Vac, 50/60Hz
- Input Sensor : NTC
- Output Relay : 8A, 250Vac for heater / compressor
- Mounting : Panel mount with locking clip.
- Indication : 3 digits 7 segments Red LED with output function indication.
- Control Accuracy : +/- 0.5% of FS
- Indication resolution : 0.1C / 0.1F < 99.9C
- Alarm : Internal buzzer or output alarm relay
- Protection : IP65
- Security : Password locking
