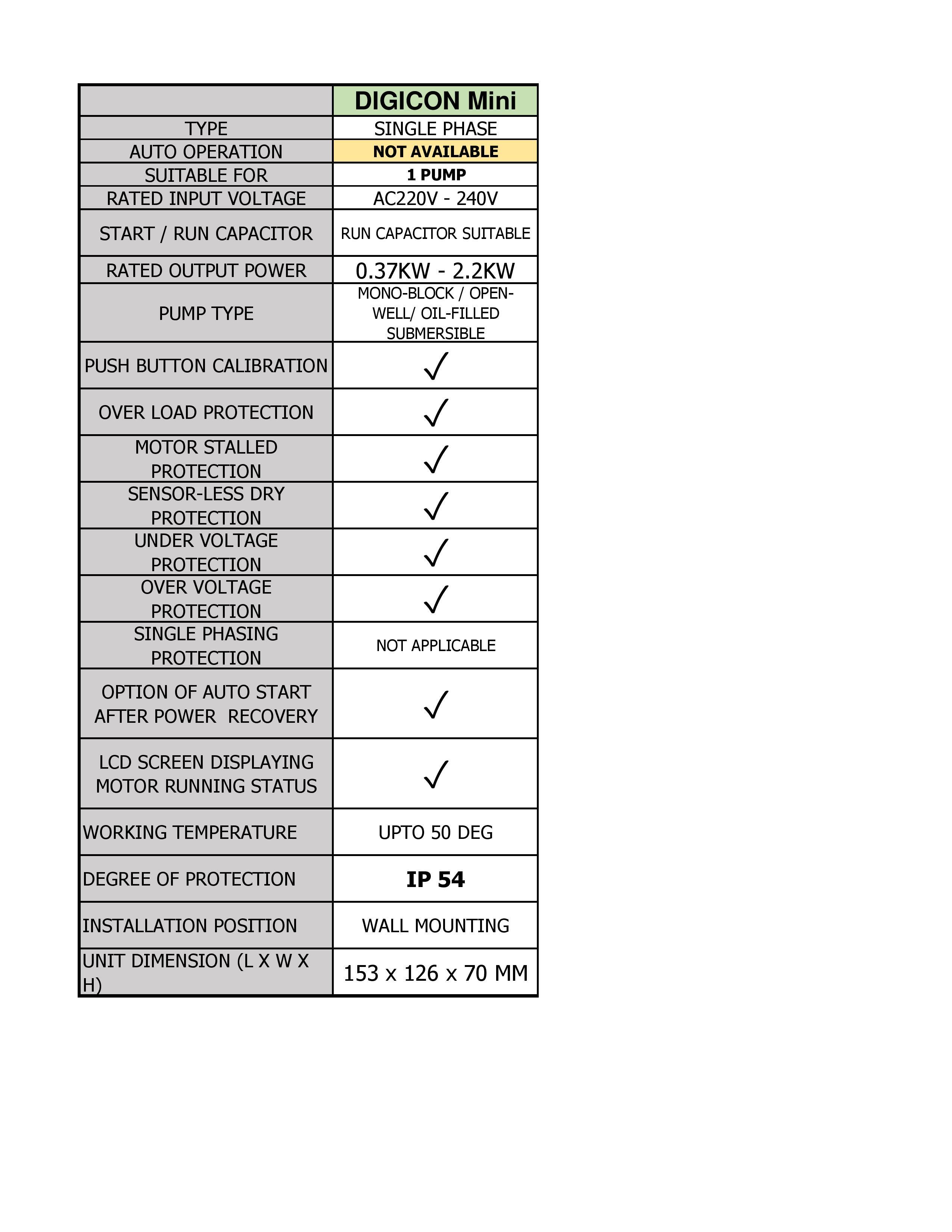

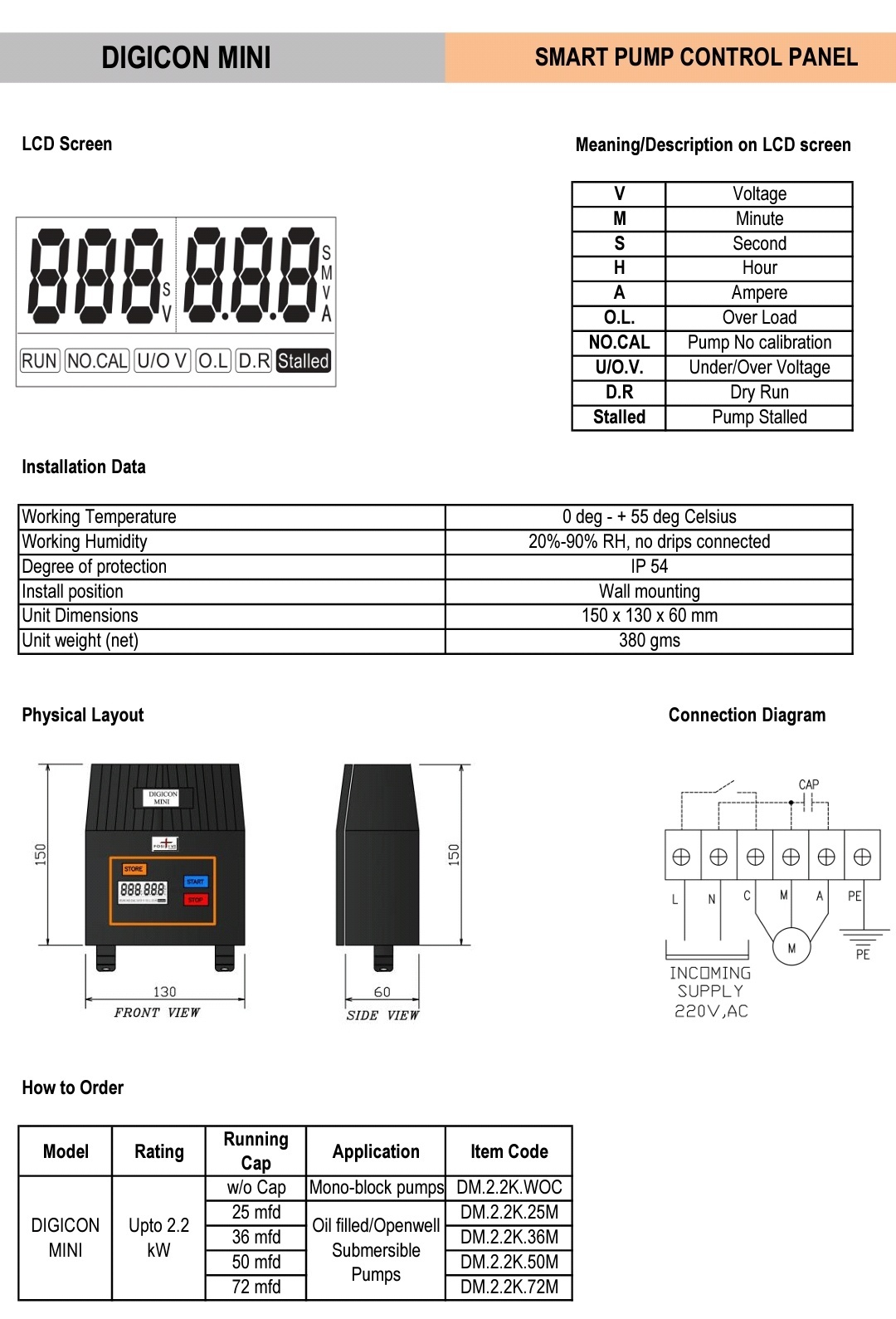

Digicon Mini Dimension(l*w*h): 130 X 150 X 60 Millimeter (Mm)

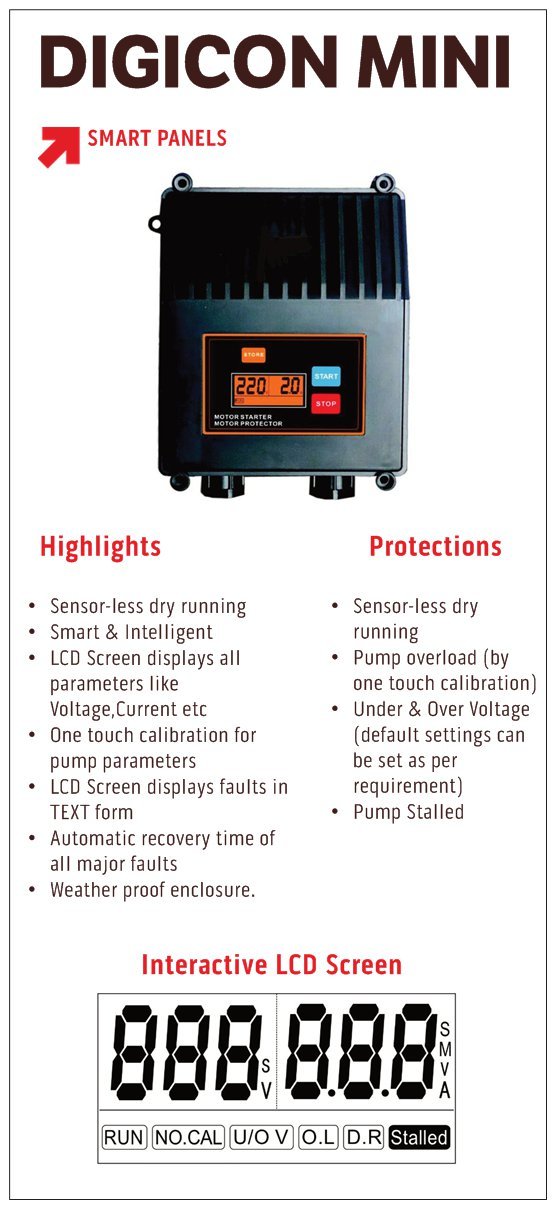

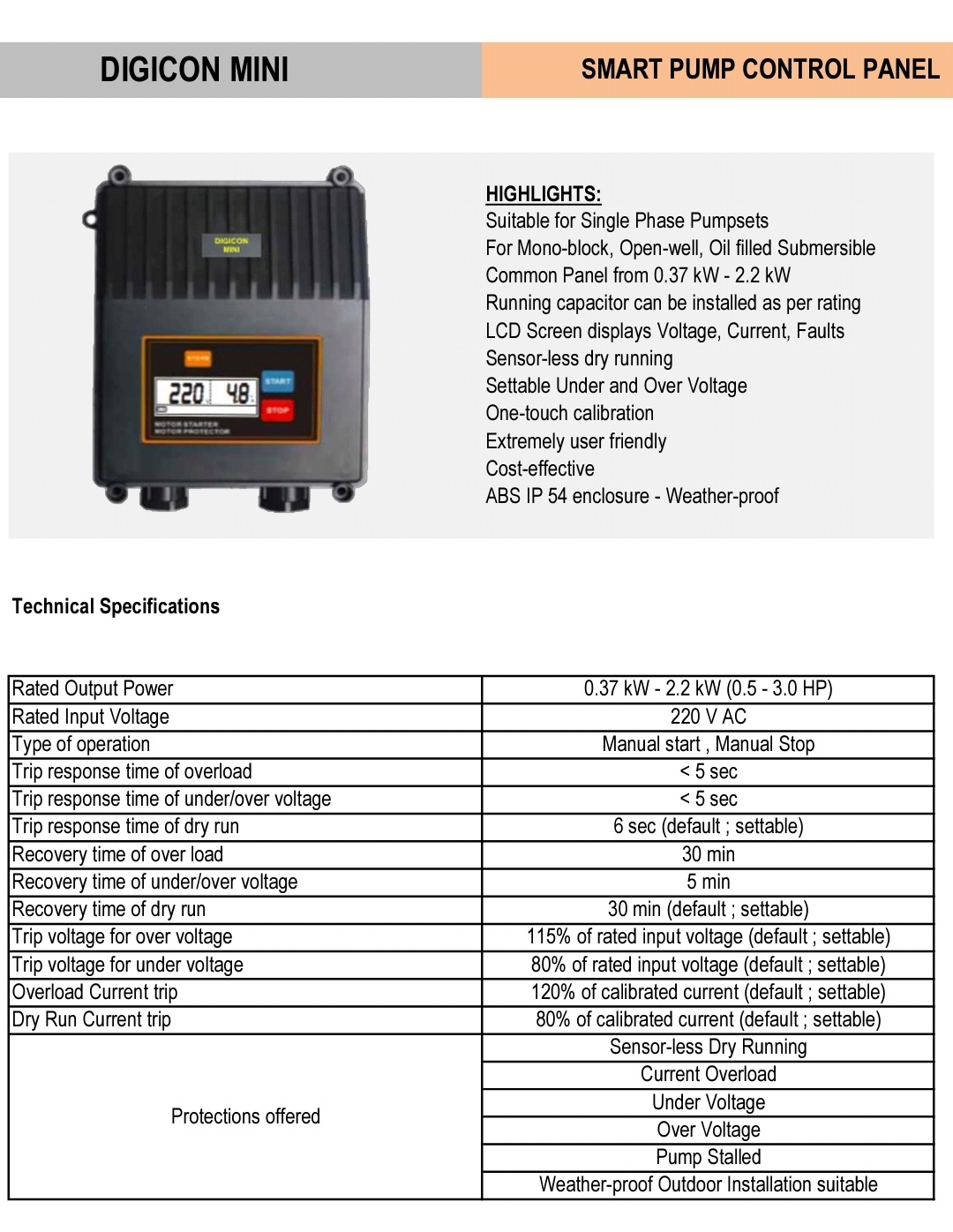

For the first time in India we have introduced a wide variety of SMART CONTROL PANELS for water pumps used for common applications like water supply, pressure boosting, drainage etc. from 1 HP to 300 HP in 1 Pump, 1 Working + 1 Standby, 2 Working + 1 Standby options at affordable prices that offer unmatched features and protections that maximizes the life of your expensive pump / motor and minimizes the down time due to breakdowns. Many of the features like one touch calibration, LCD screen that displays all parameters, faults and status in TEXT form, current sensing single phasing protection (Single phasing on incoming as well as outgoing side), 3 stage current related protections i.e Under current, Over current and High current (Pump Stalled), settable under and over voltage limits are available in all basic entry level models apart from offering common panel for many ratings and applications. Other models offer even more useful features like last five faults information, run hours information, anti-jamming features, this feature is of great importance in drainage and firefighting applications where the pumps do not run frequently and sometimes for very long time they are idle and get prone to getting jammed, this can result in pump failure at the time when it is supposed to perform resulting in huge losses, these models offer RS485 connectivity by default. For automation applications choice of devices like level probes, level / float switches / pressure switches / time switch / level transmitters / pressure transmitters etc. We are showcasing our standard range of SMART PANELS, however we design, manufacture and supply customized control panels as per customerA A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A AcA A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A s design and specifications as well including SMART MCC Panels for multiple pumps.
