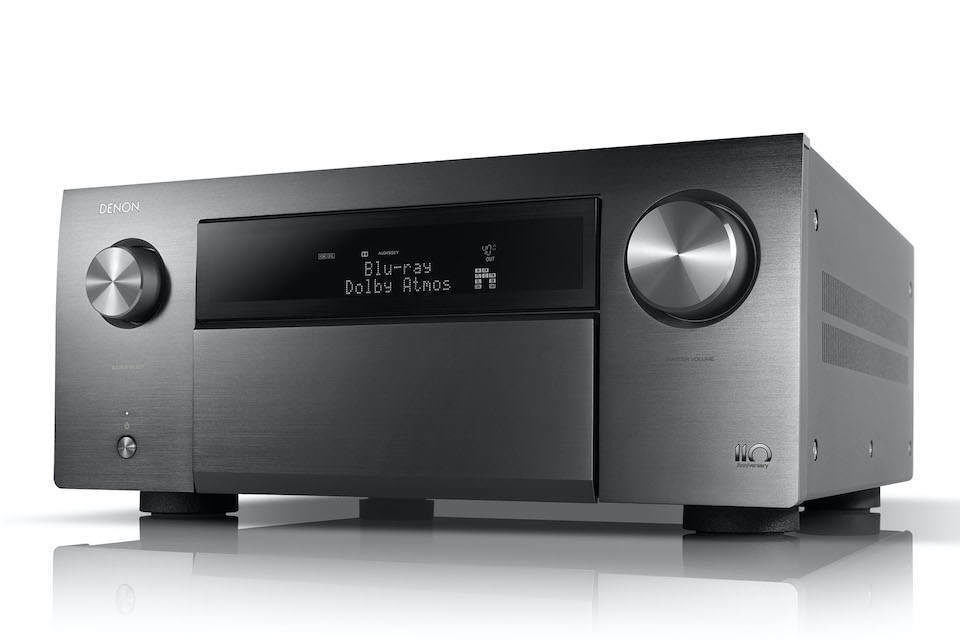

Denon Avc-a110 - Color: Black

Channels

13.2

Object-Based Configuration: 9.2.4
Object-Based Configuration: 7.2.6
Power Output per Channel

2-Channel Driven: 150 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD, 190 W at 6 Ohms / 1 kHz / 0.7% THD
1-Channel Driven: 210 W at 6 Ohms / 1 kHz / 1% THD
Frequency Response

10 Hz to 100 kHz +1/-3 dB (Direct Mode)

Speaker Impedance

4 to 16 Ohms

DTS Compatibility

DTS:X, DTS:X Pro

Dolby Compatibility

Dolby Atmos

Auro 3D Support

Yes

Upmixing Technology

Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology

Supported File Formats

ALAC, DSD, FLAC, MP3, WAV, WMA

HDR Compatibility

HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma

Pass-Through Support

8K60p 4:4:4 (BT.2020)

Upscaling

8K

GUI

Yes

Rear A/V Inputs

7 x HDMI
3 x 3RCA Component
4 x RCA Composite
2 x Optical TOSLINK
2 x Digital Coaxial
6 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
1 x 7.1-Channel RCA
Rear A/V Outputs

3 x HDMI
1 x 3RCA Component
2 x RCA Composite
2 x RCA Subwoofer
1 x 15-Channel RCA Pre-Out
1 x Stereo RCA Zone 2 Pre-Out
1 x Stereo RCA Zone 3 Pre-Out
Front I/O

1 x HDMI Input
1 x USB Type-A Input
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O

2 x Bluetooth/Wi-Fi Antenna Terminal Input
1 x AM Antenna Terminal Input
1 x FM Antenna Terminal Input
1 x RJ45 (Ethernet)
1 x DE-9 (RS-232C)
2 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x 1/8" / 3.5 mm (IR) Input
1 x 1/8" / 3.5 mm (IR) Output
1 x USB Type-A (Power) Output
1 x Denon Link HD
Speaker Connectors

15 x Binding Post Pairs

HDCP Support

Version 2.3

Audio Return Channel (ARC)

Yes, eARC

HDMI CEC

Yes

Input Sensitivity

200 mV

Signal to Noise Ratio

102 dB (Direct Mode / IHF-A)

Wireless Audio Protocols

AirPlay 2, HEOS

Dimensions (W x H x D)

17.1 x 10.2 x 19.0" / 43.4 x 25.9 x 48.3 cm (Antenna Up)
17.1 x 7.7 x 19.0" / 43.4 x 19.6 x 48.3 cm (Antenna Down)
17.1 x 7.7 x 18.6" / 43.4 x 19.6 x 47.2 cm (Antenna Removed)
Weight

51.4 lb / 23.3 kg
