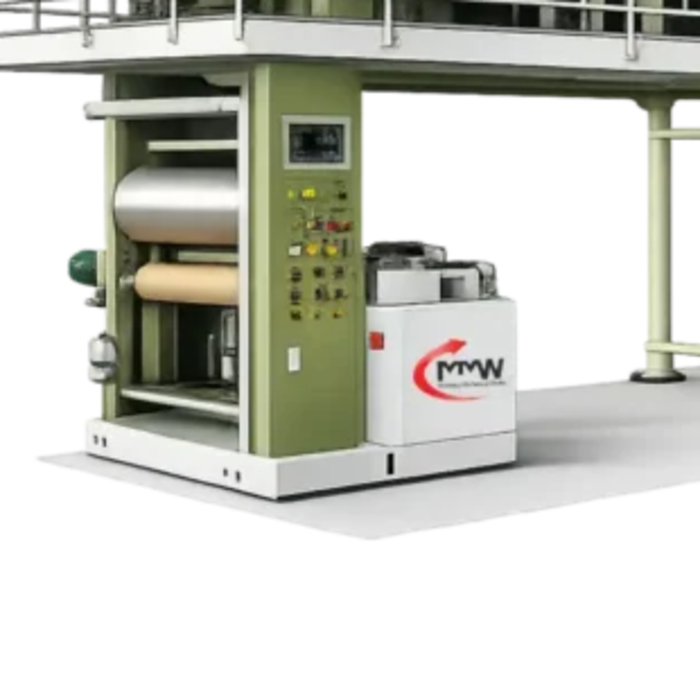

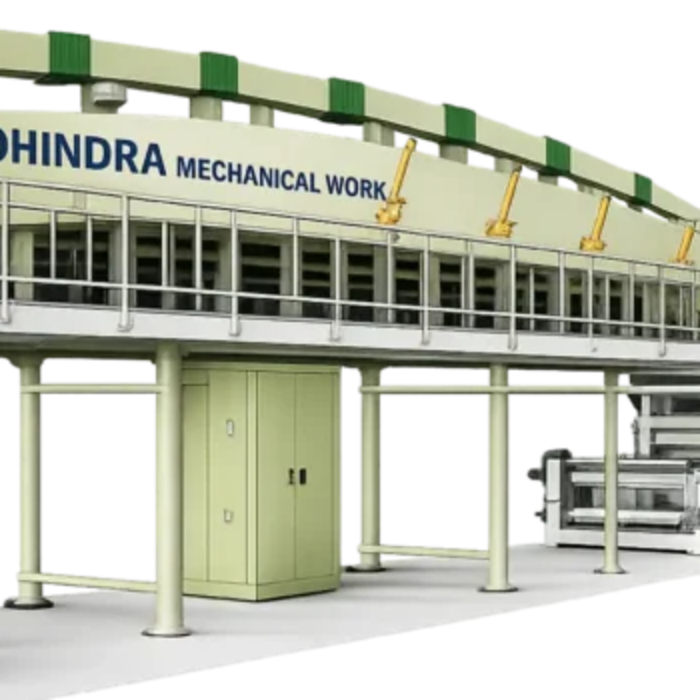

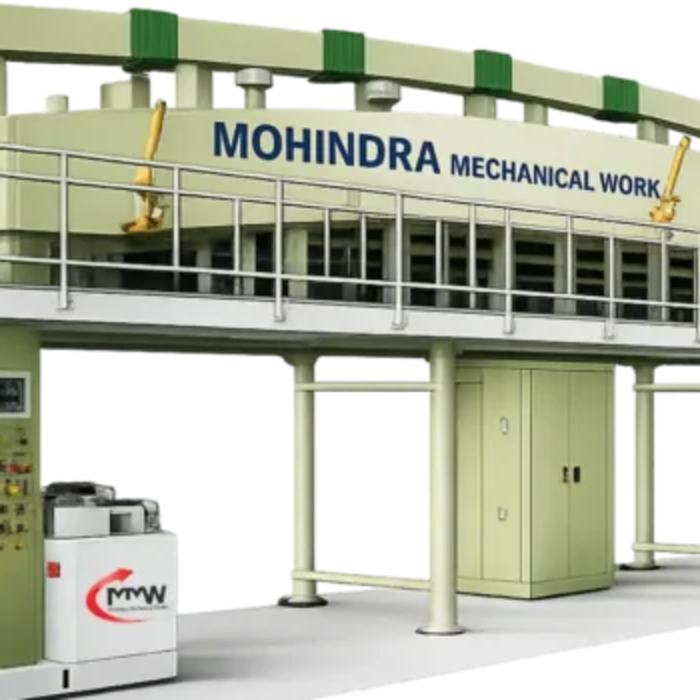

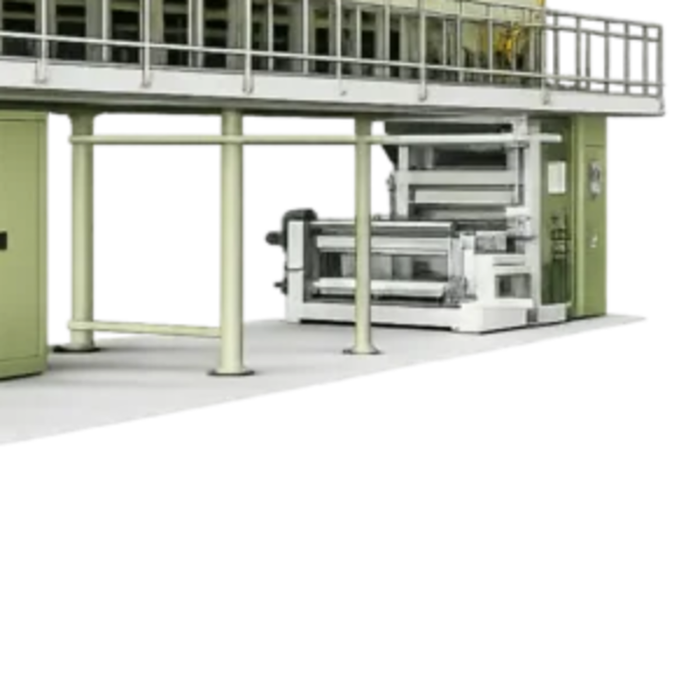

Ddp (Diamond Dotted Paper) Paper Coating Machine - Coating Head: Gravure Roller
Price: 4130000.00 INR / Piece
(3500000.00 INR + 18% GST)
Get Latest Price
MRP:
4130000.00 INR / Piece
Weight :
14000.00 Kilogram
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Power Requirement | 120 200 kW |
| Coating Format | Roll to Roll |
| Max. Sheet Area | 36 Inch |
| Machine Speed | Up to 100 m/m |
| Varnish Type | B-Stage Heat-Curable Epoxy Resin |
| Max. Coating Area | Full Web Width in Diamond Pattern |
| Registration | Automatic Web Alignment |
| Feeding Type | Continuous Roll Feeding |
| Color | Green, White or Customized |
| Coating Type | Diamond Dotted Epoxy Resin Coating |
| Min. Sheet Area | As per Customer Requirement |
| Coating Transfer Method | Pattern Gravure Coating |
| Sheet Thickness | 0.08 0.25 mm |
| Product Type | DDP Paper Coating Machine |

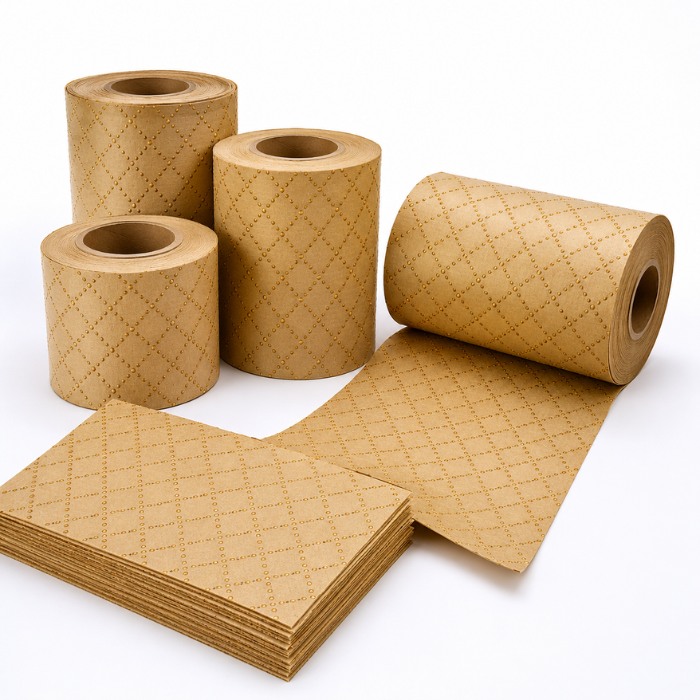

| General Use | Applying Diamond-Pattern Epoxy Resin on Insulation Paper |
| Material | Stainless Steel |
| Type | Adhesive Coating Machine, Other, Industrial Coating Machine |
| Weight (kg) | 14000 Kilograms (kg) |
| Coating Speed | Up to 100 m/m |
| Coating Head | Gravure Roller |
| Coating Width | Up to 1600 Millimeter (mm) |
| Coating Material | Other |
| Computerized | No |
| Automatic | Yes |
| Control System | PLC Control |
| Power Source | Electric |
| Power Consumption | 120 200 Kilowatt (kW) |
| Heating System | Hot Air |
| Drive Type | Pneumatic |
| Voltage | 440v Volt (v) |
| Humidification System | No |
| Glue Type | Water Based |
| Rewinder Type | Duplex Rewinder |
| Unwinder Type | Duplex Unwinder |
| Rewinding Width | Up to 1600 Millimeter (mm) |
| Unwinding Width | Up to 1600 Millimeter (mm) |
| Dimension (L*W*H) | 1800 450 500 Centimeter (cm) |
| Feature | High Precision, Coating, Low Energy Consumption, High Speed |
| Warranty | 1 Year |
| FOB Port | ICD Tughlakabad, Delhi |
| Payment Terms | Cash on Delivery (COD), Cheque, Others |
| Supply Ability | 2 Per Month |
| Delivery Time | 90 Days |
| Sample Available | No |
| Sample Policy | Contact us for information regarding our sample policy |
| Packaging Details | The machine is covered with waterproof protective wrapping. The pattern-coating unit, precision rollers, electrical panels, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea. |
| Main Export Market(s) | Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America |
| Main Domestic Market | All India |
| Certifications | ISO 9001:2015 Certified, CE Certified Standard Machinery |
| Color | Green, White or Customized |
| Returnable | No |
| Price | 3500000.00 INR (Approx.) |
| Pkg Box Height | 500.00 cm |
| Pkg Box Breadth | 450.00 cm |
| GSTIN | 18% |
| Stock Quantity | 1 |
| Packsize | 1 |
| Unit Type | Piece/Pieces |
| Mop | 1 |
| Shipping Type | actual |
| Brand Name | Mohindra Mechanical Works |
| Currency | INR |
| MRP | 4130000.00 INR |
| Pkg Box Length | 1800.00 cm |
| Weight | 14000.00 Kilogram |
| Price Type | fixed |
| Minimum Ordered Packs | 1 |
