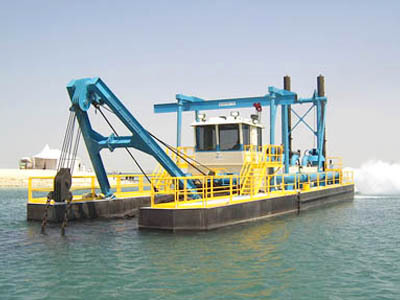

Cutter Suction Dredger - 4.5-5m Width, 10-20m Length, 5m Height | 60mâ³/h Sand Pumping, High Automation Operation, Dual Floating-body Design

We are offering our customers a wide range of Cutter Suction Dredger. The dredging body includes the hull, main frame, power, deceleration system, underwater part, transport driving part and operation part. Its width is 4.5-5 m and length is 10-20 meters, and height is 5 m, shaping sand-height is 2-8 m. Sand pumping is 60 m3 / h from a depth of 13 meters underwater.
The whole cabin is divided into three bodies, two for the floating-body, and the middle for the sand tank. Capacity: large-scale pumping sand is 30 m3 and general is 13 m3. The walking speed is 15km / hour, with diesel engine drives the pulp machine. Sand screening machine: dry sand is 100 m3 / h, including 2 conveys and 3 conveys
Operating Manual with high degree of automation, the machinery has been practiced and improved, it is easy for operation, only 2 persons needed in each shift. Concrete steps are as followsi a a
1. Before it starts, checking transmission system and fuel , then launching the engine backward for conveying belt, pulling the clutch to a normal speed. After all that, launching engine for zip bucket in the front.
2. Regulating to the needed speed. Then release the brake arm. Gradually, down slowly until more than the hoppera s 2 / 3 is full of sand. Release the arm again until 1 / 3 sand left. Then making the big arm is 45-degree angle (i.e., 5 meters or so), it should be parked.
