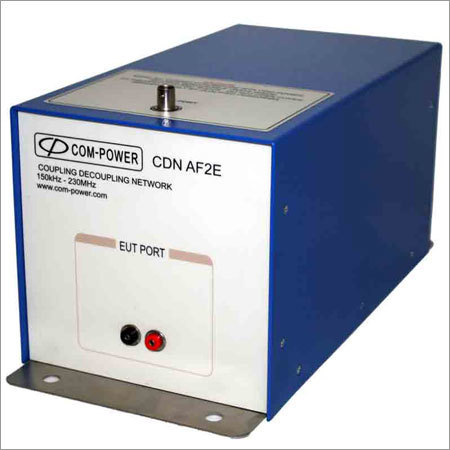

Coupling - Decoupling Networks Af2e - 15.2x15.2x33 Cm, 5 Amp, 150 Khz-230 Mhz | Iec 61000-4-6 Conducted Immunity Testing, Two-wire Unscreened Cable
Get Latest Price
In Stock
Product Specifications
| Product Name | CDN-AF2E |
| Standards Compliance | IEC 61000-4-6 |
| Frequency Range | 150 kHz - 230 MHz |
| RF Input Voltage | 40V max |
| Current Rating | 5 Amps |
| Dimensions | 15.2 x 15.2 x 33 cm |
| Weight | 2.3 kg |
| Usage | Testing two-wire unscreened cables for conducted immunity per IEC/EN 61000-4-6 |
| Features | EMI testing, Conducted immunity, Two-wire cables, IEC 61000-4-6 compliant, Pre-packaged solution, 5 Amp current |
Product Overview
Key Features
- Product Name: Coupling Decoupling Network (CDN)
- Compliant Test Standards: IEC / EN 61000-4-6
- Application: Two wire unscreened, unbalanced Cables
- Frequency Range: 150 kHz to 230 MHz
- RF Input Voltage: 40 V (Max)
- RF Input Connector: 50 BNC (Female)
- Voltage Rating: 310 V AC / 440 V DC (Line to Ground)
- Current Rating: 5 Amp (Max)
- AE and EUT Connections: 2 mm shrouded banana sockets
