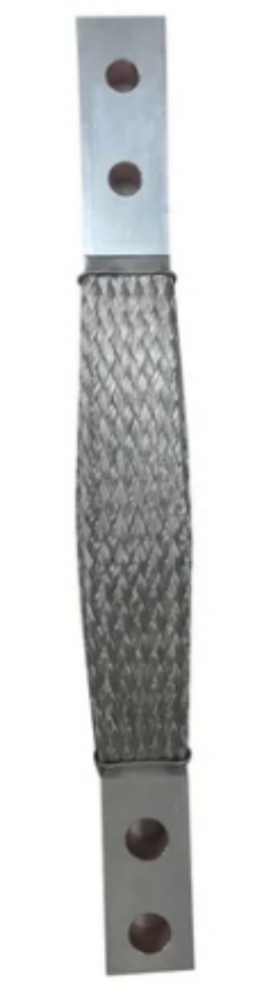

Copper Flexible Braid Connector - Multigrade Alloy With High Strength And Hardness , Galvanized Surface Treatment With Warranty

Copper flexible braid connectors are typically made from high-conductivity ETP grade copper and their specifications are primarily defined by their cross-sectional area, material finish, and current ratings. These vary widely based on the intended application, such as grounding, power connections, or shielding.
Copper braid and flexible grounding braid manufacturer in India
Key Specifications
Specification DetailsSource
MaterialETP Grade Copper, minimum 99.9% puritysidharthametals.com, Tradeindia
FinishBare (natural), tinned, or silver-platedsidharthametals.com
Single Wire DiameterRanges from 0.05 mm to 0.30 mm (or 47 SWG to 23 SWG)sidharthametals.com, technofusion.in
Cross-sectional Area (CSA)Ranges from 1 sq. mm to over 4000 sq. mm (or up to 6000+ mm)srgmetalcft.com, sidharthametals.com
Current RatingVaries by CSA and temperature, generally ranging from 10 Amps to 5000 Ampstechnofusion.in, metrobraid.com
StandardsOften manufactured according to BS EN 13602, BS 7430, IEC 60439.1 / 61439.1, and military spec QQ-B-575veraizenearthing.com,
InsulationTypically uninsulated, but PVC, silicone, or fiberglass sleeves can be added upon requestsidharthametals.com, metrobraid.com
Working TemperatureStandard range is typically -60C to 200C for some typesganpatiwire.com
