Common Emitter Amplifier - Application: Engineering Electronics Instruments
Price: 1000.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Response Time | Instantaneous |
| Features | High voltage gain, simple construction, suitable for basic amplification |
| Sensors Specification | No sensors |
| Power Source | External DC supply |
| Interface | 2-pin input, 2-pin output |
| Components | Transistor, resistors, capacitors, PCB, connectors |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Operating Temperature | 0C to 70C |
| Input | Low-level AC signal / microphone input |
| Thermal Conductivity | Standard PCB thermal dissipation |
| Display Type | Other, No display |
| Output | Amplified AC signal |
| IP Rating | Not rated |
| Power Supply | DC Power Supply |
| Product Type | COMMON EMITTER AMPLIFIER |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 9V - 12V DC |
| Size | Medium size board |
| Dimension (L*W*H) | Approx. 65mm x 50mm x 12mm |
| Function | Amplifies small AC signals |
| Color | Green (PCB), black and silver (components) |
| Weight | Approx. 40g |
| Thickness | PCB approx. 1.6mm |
| Capacity | Single channel amplification |
| Current Rating | Approx. 10mA |
| Frequency | Up to 100 kHz (depends on transistor and design) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features

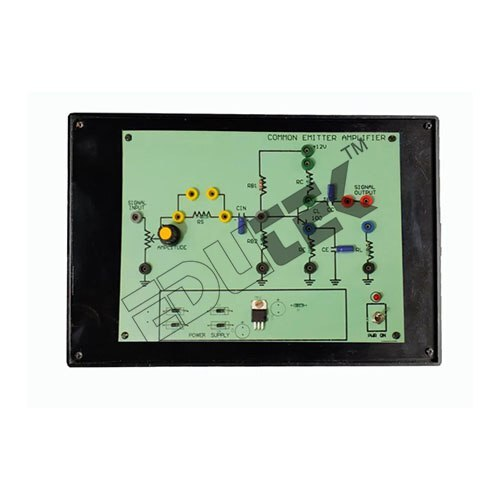

COMMON EMITTER AMPLIFIER
It is used to study common emitter amplifier.
Features:
On board circuit to study common emitter amplifier.
On board POT for varying amplitude of input signal.
On board test point to analyze the signal
ON/OFF switch and LED for power indication.
Bare board Tested Glass Epoxy SMOBC PCB is used.
Block Description Screen printed on glassy epoxy PCB
All interconnections are made using 2mm banana Patch cords
