Cold Test Chamber

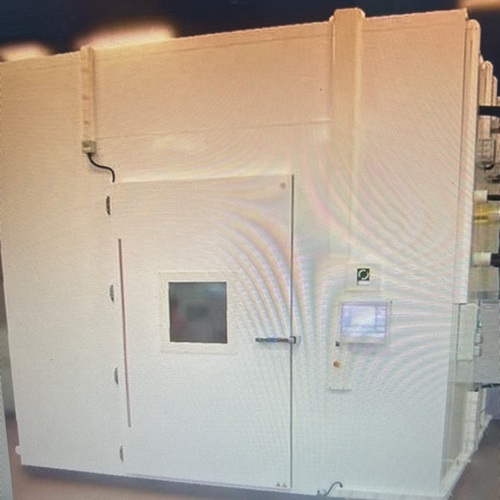

HOT AND COLD CHAMBER

We are an eminent name in the market as leading manufacturer and supplier of high performing Environment chamber. These incubators are extensively used in environmental chambers for testing climatic effect on products and identifying products' quality and defects. Provided incubators are manufactured using superior quality components under the guidance of our adept professionals in our advanced manufacturing unit. Further, offered incubators are available in different specifications to meet the desired needs of our clients. These Environment chamber can be purchased from us at industry-leading prices.

Features:

Temperature range:

-10 to +100C | -40 to +100C | -70 to +100C |-70C to +150C

Humidity range : 40% to 98% 30C to 80C.

Technical Specifications:

Temperature, Humidity Controller (Humidity - Dry and Wet bulb method) Digital Microprocessor based, PID, Temperature Indicator cum controller with display resolution of 0.1C. Digital Microprocessor based, PID, Humidity Indicator cum controller with display resolution of 1%Rh. (direct reading). Display accuracy 0.5%, full scale. Temperature controlling accuracy 2C. Humidity controlling accuracy of 2-3% @ 40% to 98% Rh. Class A grade PT-100 (RTD) Sensor for dry and wet temperature measurements. Construction: Vertical model. Inner Chamber made of dully polished Stainless Steel, 304 Grade. Outer made of Mild Steel, powder coated. Polyurethane Foam (PUF) and Glass Wool / Ceramic blanket Insulation. Handle, lock and heavy-duty hinges for door. Door with Silicon / Neoprene rubber gasket for leak proof. Forced air circulation to maintain uniformity of temperature. Frost Free Viewing Window to observe the testing components during working condition. Double walled full front opening door. Inner lined with SS. Long life Ni-chrome, SS heaters with fins for higher temperature. Automatic cut off for circulating fan when the door is opened. Lockable Wheels for easy movement. Drain facility to drain the condensed water from the chamber. Adjustable SS meshed trays. Refrigeration System: Hermetically sealed EMERSON Copeland make compressor. CFC free refrigerant filled. Fin and tube type air-cooled condenser. Safety features: Provided with Suitable overload protectors and MCB s to ensure absolute safety to Electrical / Electronics and Refrigeration Systems. Provided with automatic water filling for humidity test. Door light is provided for viewing window. Single phase preventor will be provided for 3-phase instruments. High Pressure and Low Pressure safety cut off for Compressors. Fully solid-state relay (SSR) control for heaters. High and Low temperature deviation alarms.

Standard sizes: 600 x 600 x 600 mm | 750 x 750 x 750 mm | 1000 x 1000 x 1000 mm Power Supply: Single-phase 230Volt / Three phase 440 Volt, 50 Hz.
