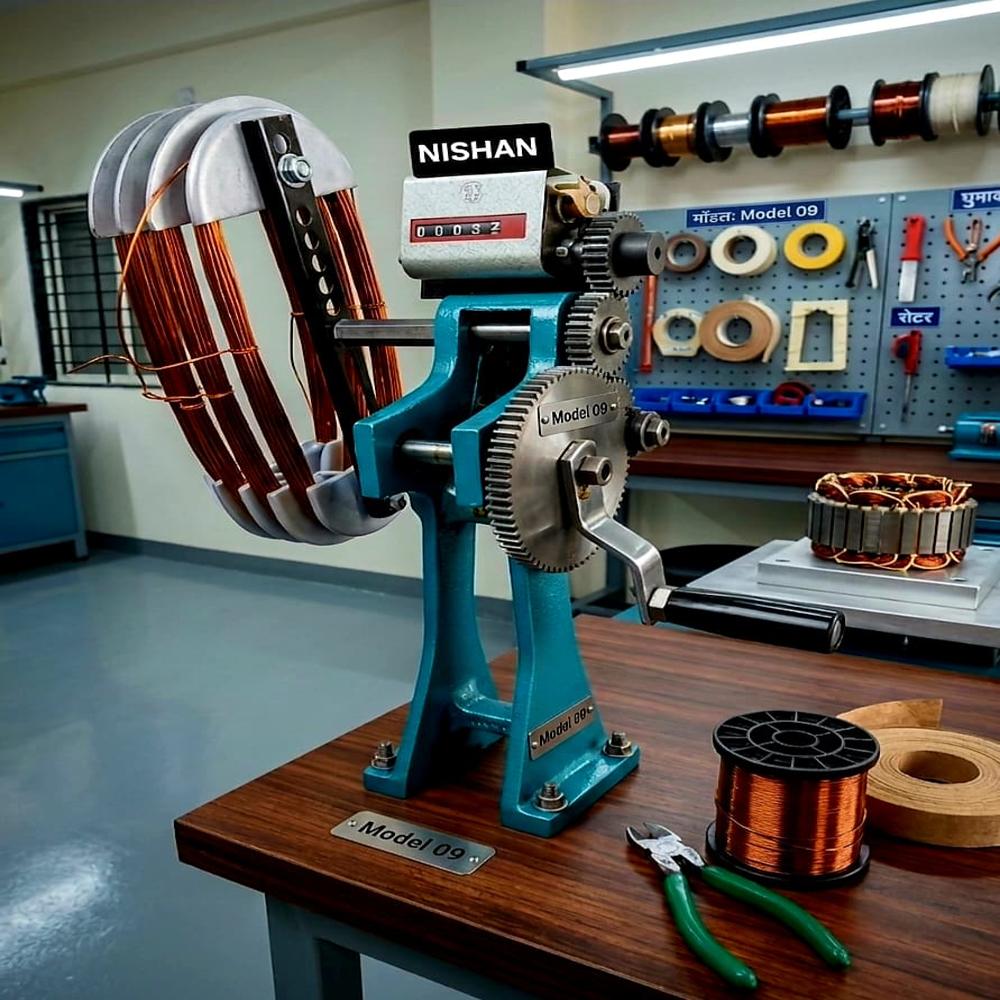

Coil Winding Machine By Trophy Tech India

With the support of highly experienced professionals, our organization is dedicated Manufacturer, Distributor & Supplier Company of Coil Winding Machine in Bengaluru, Karnataka, India.
This machine can be adjustable to suit different winding requirement by just changing suitable Tensioner, wire guides, and winding mandrels.

This machine based on Micro controller to control the programmed parameters, it has Four line LCD module, described keyboard for enter of numeric values and parameters, it has a 100 program memory coupled with set of programmable parameters and reset auto/manual, soft starting time and soft stopping turns to achieve complex wingdings like,

Conical Winding
Sectional Winding
Different pitch Winding
Layer Winding

Our machine are available with different models as follows,
Single Spindle - Side loading / Front loading
Dual Spindle - Side loading / Front loading
Four Spindle - Side loading / Front Loading
Semi Thick wire Machine Single Spindle - Side loading
Thick wire Machine Single Spindle - Side Loading



These machine usages are too simple to understand the winding parameters and working of the machine



Technical Specification :

Winding Turns - 0.1 TO 99999.9TURNS
Winding Width - 0.1 TO 135.0 MM
Winding Pitch - 0.02 TO 9.999 MM
Winding Swing Diameter - 110 MM (MAX)
Winding Speed - 200 TO 9000 RPM
Spindle Motor - 180 W,180 VDC, 1 A, 4000 RPM,PMDCMOTOR, AGNI MOTOR.
Stepper Motor - Hybrid Stepper Motor 1.8, 1 A,
Brake - Electro Magnetic Disc
Power Supply - 220/240V AC, 50 HZ, 0.2 KVA
Processor - MICRO CONTROLLER
Memory Type - Eeproms, 100 Programs
Display - 4 Line 20 Character LCD Modules
key Board - Normal Keyboard
