Cnc Machine Fire Suppression System - Capacity: 9 Kg

Cnc Machine Fire Suppression System - Capacity: 9 Kg

Price: 100300.00 INR / Set

(85000.00 INR + 18% GST)

Get Latest Price

MRP:

100300.00 INR / Set

Weight :

18.00 Kilogram

1 Pack Contains :

1

Minimum Pack Size :

1

In Stock

In Stock

-1+

Product Specifications

ColorRed
Product TypeDLP & ILP
MaterialSS
Shapecylinderical
Fire Extinguisher TypeAutomatic clean agent suppression
Installation TypeOn site
FeaturesAutomatic fire safety
Temperature Range100-120 Celsius (oC)
Fire ClassA,B & C
Operating Pressure15 Bar
Coverage Area12 Square Meter (m2)
Working Temperature100-120 Celsius (oC)
Voltage230 Volt (v)
Frequency50 Hertz (HZ)
Alarm100 DB
Weight18 Kilograms (kg)
Mounting Typewall/ panel
Connectivity TypeThread type
Control TypeMechanical
TechnologyILP
Dimension (L*W*H)0.5 x 0.3 x 0.25 Meter (m)
UsageApplications CNC Machine Fire Suppression System CNC Machining Centers Multi-axis machining units with high spindle speeds CNC Turning & Lathe Machines Fire protection against oil mist & tool overheating Milling Machines Spark and coolant fire suppression Grinding Machines Fine metal dust and spark hazard protection EDM (Electrical Discharge Machines) Fire risk from dielectric oils Injection Molding Machines Protection from hydraulic oil and heater fires Robotic & Automated Manufacturing Cells Localized machine-level fire safety
Warranty12 month
Coating Typecrome
Energy Efficiency Rating5 star
Input Power230 Volt-Ampere (VA)
ApplicationApplications CNC Machine Fire Suppression System CNC Machining Centers Multi-axis machining units with high spindle speeds CNC Turning & Lathe Machines Fire protection against oil mist & tool overheating Milling Machines Spark and coolant fire suppression Grinding Machines Fine metal dust and spark hazard protection EDM (Electrical Discharge Machines) Fire risk from dielectric oils Injection Molding Machines Protection from hydraulic oil and heater fires Robotic & Automated Manufacturing Cells Localized machine-level fire safety

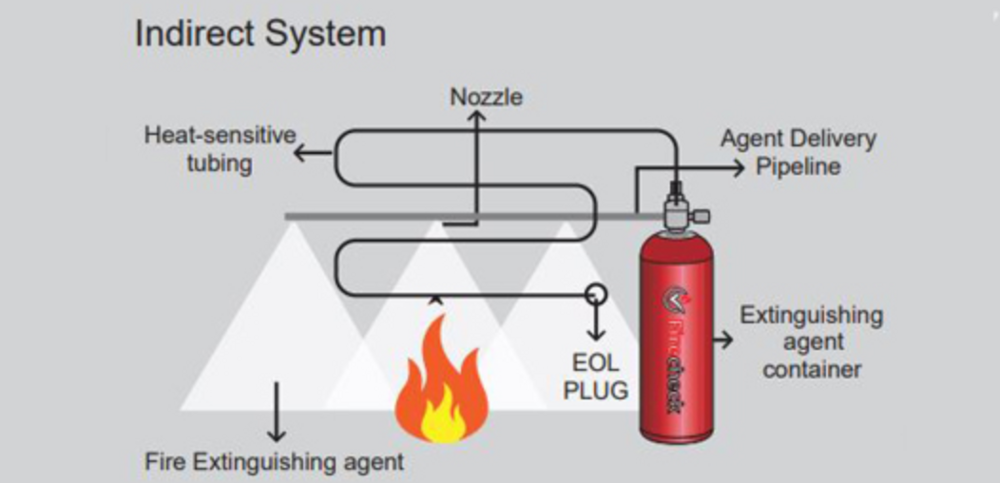

Max Flow RateDirect-release tube systems (tube ruptures & discharges through the hole): Typical peak mass flow 0.3 1.0 kg/s (per rupture point). Reason: small rupture hole ( 2 4 mm), lower effective orifice area and agent pressure (clean agents are often stored at 25 bar; CO is ~55 bar so CO can be toward the top end). Indirect-release systems (tube triggers valve discharge through nozzles): Typical peak mass flow 1.0 6.0 kg/s (system peak from cylinder/nozzle manifold). Reason: discharge through dedicated nozzles and larger orifice areas; multiple cylinders or large cylinders produce higher peaks.
Capacity9 Kg
DiameterCylinder Diameter (varies with capacity) 2 kg Cylinder: ~100 120 mm 4 6 kg Cylinder: ~140 160 mm 9 12 kg Cylinder: ~160 180 mm 20 kg Cylinder: ~200 220 mm Millimeter (mm)
Pressure30 Bar
FOB PortDelhi
Payment TermsOthers
Supply Ability100 Per Month
Delivery Time3 Week
Sample AvailableNo
Sample PolicySample costs shipping and taxes has to be paid by the buyer
Packaging DetailsStandard Kit Contents1 9 kg agent cylinder (pre-filled, pressure tested)1 cylinder valve with pressure gauge and safety cap1 detection tube (typically 8 mm OD) length as per order (commonly 10 15 m) coiled and tied1 mounting bracket set (cylinder & tube clamps)1 2 discharge nozzles (for indirect systems) or end fittings (for direct systems)1 accessories bag (fittings, O-rings, connectors, screws)1 installation & user manual (folded)1 certificate folder (test certificate / hydro date / compliance documents)
Main Domestic MarketGoa, Jharkhand, Himachal Pradesh, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal
CertificationsUL/ CE
Shipping Rate2.50
Packsize1
Pkg Box Length50.00 cm
Brand NameInnovex
Price Typefixed
Pkg Box Breadth30.00 cm
Pkg Box Height25.00 cm
GSTIN18%
Product Unit1 Set/Sets
Shipping Typeorder_percent
Stock Quantity5
ReturnableNo
Mop1
Price85000.00 INR (Approx.)
Weight18.00 Kilogram
CurrencyINR
Moq1
ColorRed
Unit TypeSet/Sets
MRP100300.00 INR
Minimum Ordered Packs1
Minimum Order Quantity1

Product Overview

Key Features

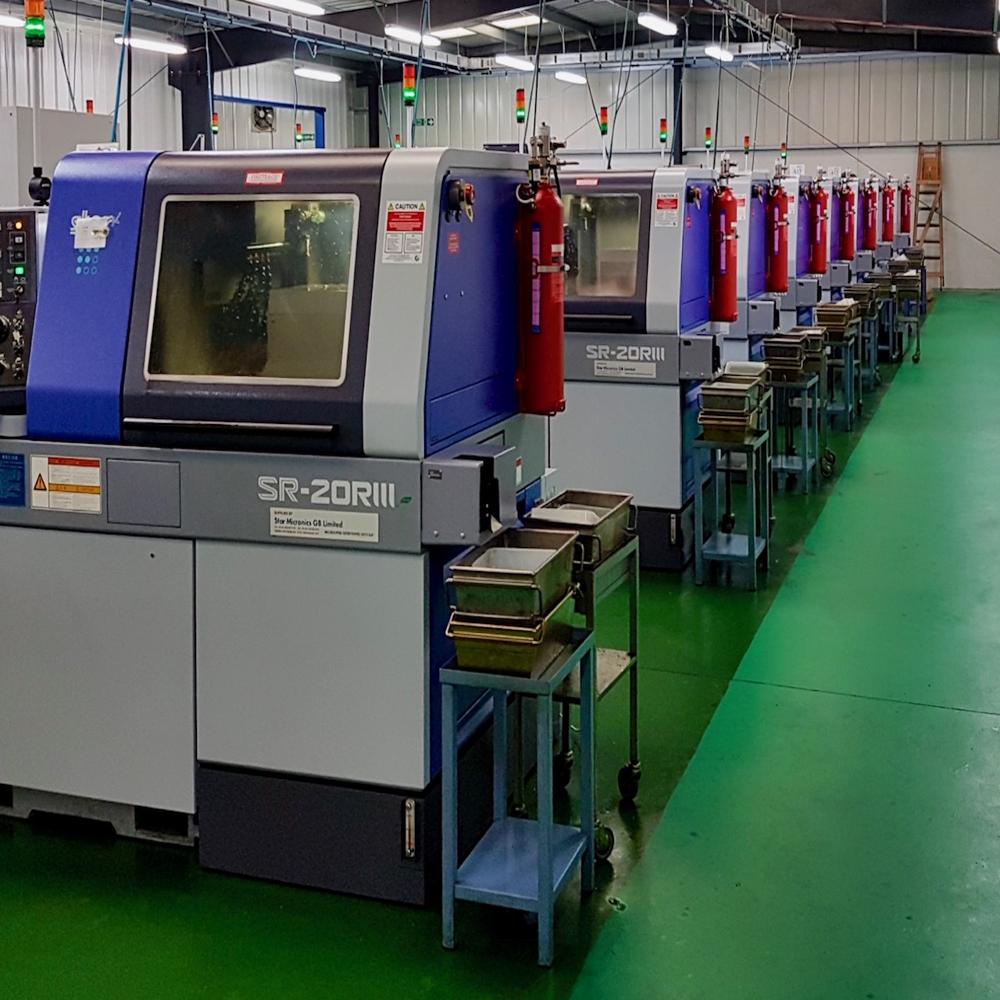

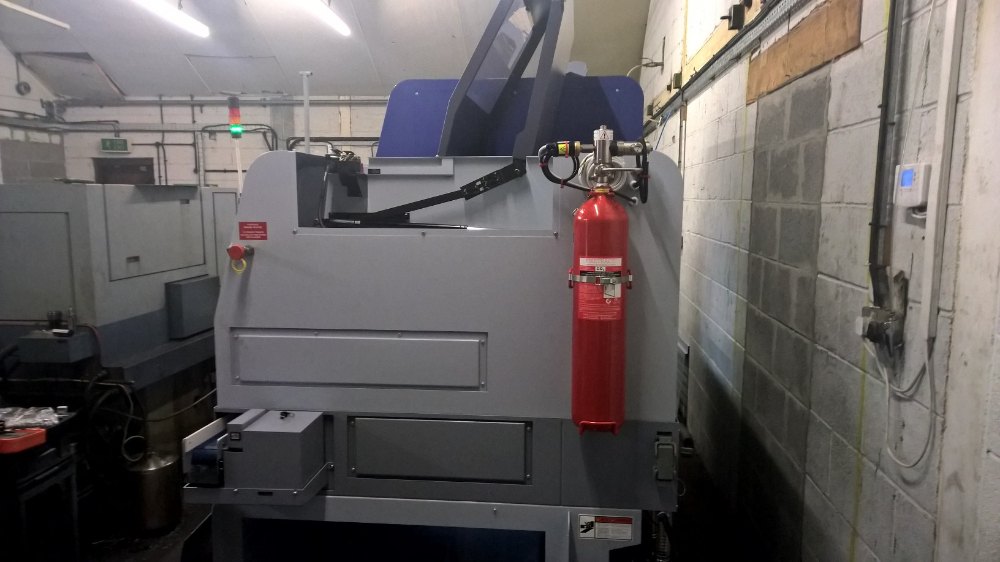

A CNC Machine Fire Suppression System is an automatic tube-based fire protection solution that detects and extinguishes fires inside CNC and machining centers. Using a clean agent or CO, it provides fast, localized suppression, minimizes downtime, and protects machines from costly fire damage.
