Busbar Sleeve - Durable Pvc Material, Customizable Sizes For Optimal Electrical Insulation

Busbar Sleeve - Durable Pvc Material, Customizable Sizes For Optimal Electrical Insulation

Get Latest Price

Minimum Order Quantity :

1

Brand Name :

Gala

In Stock

In Stock

Product Specifications

FeaturesHeat resistant, Easy install, Durable, Corrosion resistant, Safety enhancement, Space saving
Installation GuidelineTorch (preheat bar, shrink from one end) or air-circulating oven at 120 to 150 deg C for 10 to 15 minutes
SizeGMB 16/6 to GMB 250/100; rectangular bar W+B 11 to 314 mm; round bar 7 to 200 mm
Product TypeMedium wall heat shrink busbar sleeve
Rated VoltageUp to 24 kV
Tensile Strength9 N/mm2 min
ThicknessMedium wall, 1.70 mm to 3.30 mm after recovery (+5% / -2%)

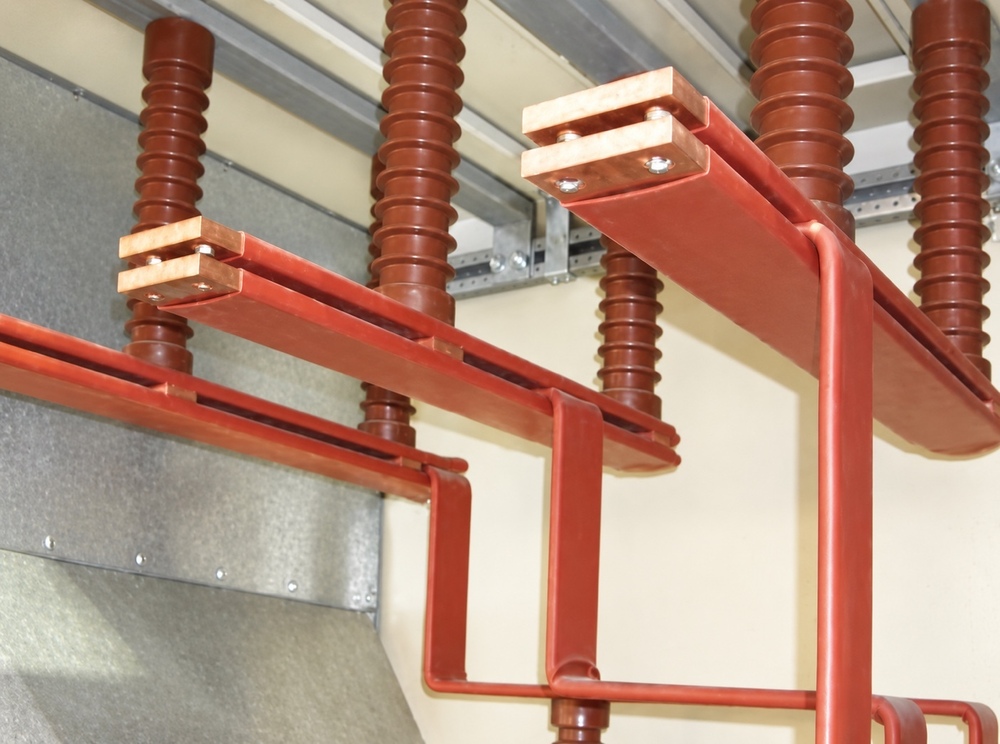

ApplicationInsulation of busbars in MV switchgear, panels and bus ducts
Usage & ApplicationsInsulation of busbars in MV switchgear, panels and bus ducts
ColorBrick red
Operating Temperature-40 deg C to +115 deg C continuous (Aug 2026 catalogue)
MaterialCross-linked polyolefin
Packaging DetailsReels of 25 m or 20 m; 1.5 m lengths for GMB 205/85 and GMB 250/100
CertificationsPOWERGRID manufacturer approval for insulation sleeves and tapes, valid to 17 Feb 2028

Product Overview

Key Features

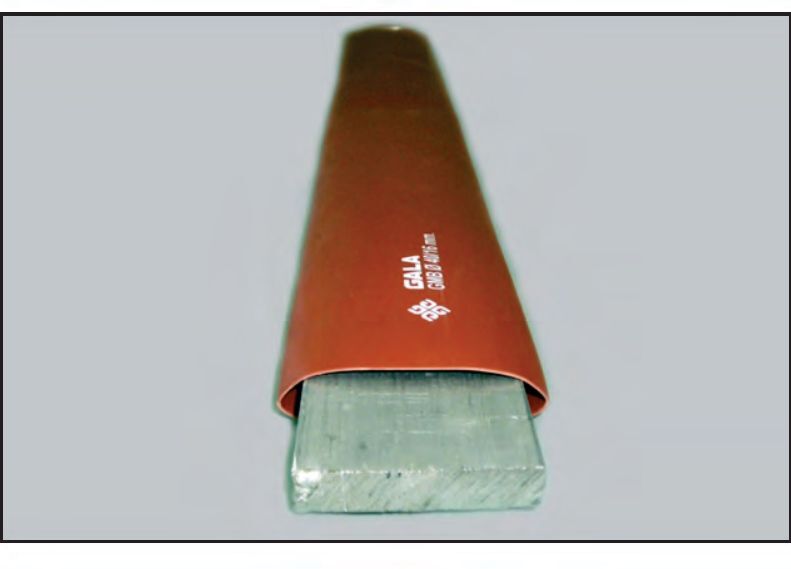

Brick-red medium-wall heat-shrink busbar sleeve for insulating MV busbars in switchgear and bus ducts up to 24 kV. 14 sizes for rectangular bars 11 to 314 mm (W+B) and round bars 7 to 200 mm.
