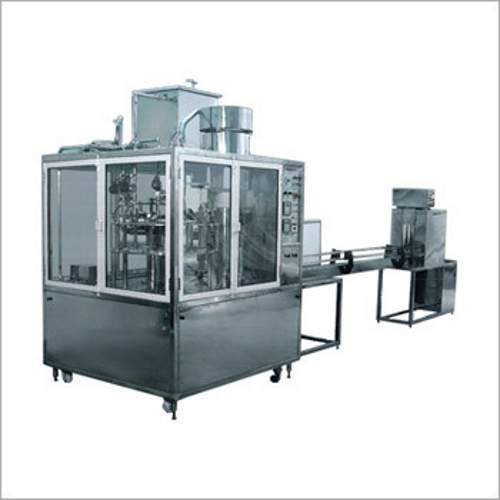

Bottles Filling Capping Machine - Application: Beverage

Eva Pack Machinery offers a high-performance Bottles Filling and Capping Machine designed for precise, hygienic, and efficient packaging of liquid products across various industries. This fully automatic machine seamlessly integrates filling and capping operations into a single compact unit, significantly improving production speed and reducing manual labour. Whether you're packaging water, oil, syrup, juice, detergent, or pharmaceuticals, this machine ensures accurate volume control and tamper-proof sealing for every bottle.

Built with advanced PLC control systems, stainless steel contact parts, and high-speed servo-driven filling technology, our machine guarantees durability, consistency, and compliance with GMP standards. Ideal for PET, HDPE, glass, and other types of bottles ranging from 50 ml to 5 litres.

Key Features:
Fully automatic operation: bottle feeding, filling, and capping
Suitable for free-flowing and semi-viscous liquids
High-speed performance: up to 60 bottles/min (varies with model & bottle size)
Accurate volumetric/servo-based filling system
No bottle a no fill a no cap system
Adjustable capping torque for various cap types
Touchscreen HMI for easy operation and monitoring
Compact design with stainless steel finish (SS304/SS316)
Easy changeover for different bottle sizes

Technical Specifications:
Filling Range: 50 ml to 5 Litre
Filling Accuracy: A 0.5%
Production Capacity: 1000 to 3600 bottles/hour (based on configuration)
Power Supply: 220V/440V, 50Hz, 3 Phase
Air Consumption: 6 CFM @ 6 bar
Material Contact Parts: SS316 / SS304
Cap Type Supported: Screw caps, ROPP caps, Flip tops, Press-fit caps
Bottle Type: Round, square, flat bottles (PET, HDPE, glass)
Automation Grade: Automatic

Applications:
Edible oil filling and capping
Drinking water and juice bottling
Cosmetic products like shampoos and lotions
Chemical and detergent packaging
Pharmaceutical syrups and liquids
Ayurvedic and herbal products
Automatic In feed and Exit of Bottles
Minimum Change Over time
Unique Free Spinning Bottle Separator- No pneumatic operation
Built-in A.C. Variable Freq. Drive System.
