Biological Comparison Microscope

Biological Comparison Microscope is a device used to analyze side-by-side specimens. It consists of two microscopes connected to an optical bridge, which gives you the choice of four different observation modes: full right image, full left image, split-image comparison and overlapping mode. C117M comparison microscope is designed for identifying objects structure, comparing similarities and differences between specimens, such as pathological slides, biological slides and so on. It is an ideal instrument for teachinga biological and medical field.
Standard Specifications:

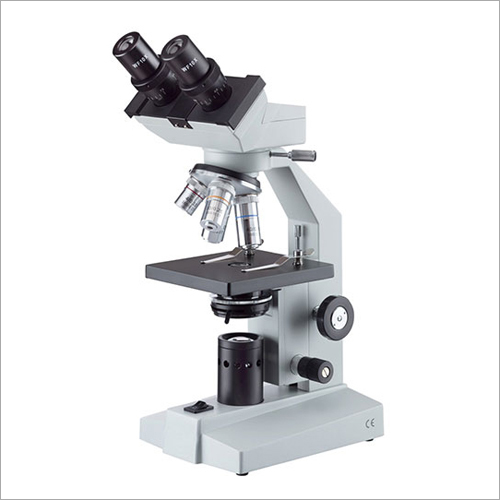

Biological microscope C117B series
Standard Specifications:
Viewing Head: Compensation Binocular Head ,30 A inclined, Interpupillary Distance 48-75mm
Eyepiece: Wide Field Eyepiece WF10X/18
Bridge: Full Right Image, Full Left Image, Split-image Comparison, Superimposed Mode; A 3% Magnification Compensation of the Right Side; Magnification of Relay System In The Bridge 1X
Objectives: Achromatic Objectives 4X 10X 40X(S) 100X(S Oil)
Nosepiece: Backward Quadruple Nosepiece
Stage: Double layers Mechanical Stage Size:132X142mm/75X40mm
Condenser: Abbe NA1.20 condenser With Iirs Diaphragm & filters
Focusing System: Coaxial Coarse and Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per rotation, Moving Range 24mm
Illumination: 220V or 110V/, 3W LED , Brightness Adjustable.
