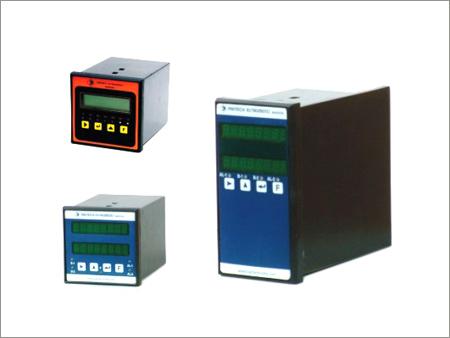

Batch Controller - Panel Mounted, 96x96x100 Mm Dimensions | Programmable Range 0.1 To 99999, Modbus Rtu Communication, High Accuracy +/- 0.25%

Under the supervision of our experts, we are engaged in exporting, manufacturing and supplying of Batch Controller in Vadodara, Gujarat, India. The quality we give is unmatched. All the parts used are highly durable and suited for tough conditions. They consume more power for a given compaction effect than internal vibrators. The external vibrators are more often used for pre-casting of thin in-situ sections of such shape and thickness as cannot be compacted by internal vibrators.

Technical Specification:-

Input : input type
Flow : 0 ~ 20 mA dc , 4~20 mA DC , 0-10 V DC
Pressure : 4~20 mA DC / 0-10 V DC or Other linear type
Temperature : RTD PT 100 3 wire / 4-20 mA
Transmitter power supply : 24 V DC @ 30 mA max, isolated from I/p & O/P
Range limits : 0.1 to 99999 Programmable with decimal point selection
Accuracy : +/- 0.25 % of span
Output Communication : Modbus RTU RS- 485/RS- 232 communication
Analog Current & Voltage outputs : 0/4~20 mA, 0~5V, 0~10V, 1~5V DC, fully 3 port isolated


Other :
(A) Dimensions - (A) 96(H) x 96(W) x 100(D)
(B) Panel cutout - (B) 92 x 92
(C) Mounting - (C) panel mounted

(A) Supply voltage - (A) 110/230 V AC, 50/60 Hz
(B) Power consumption - (B) 4 watt maximum
