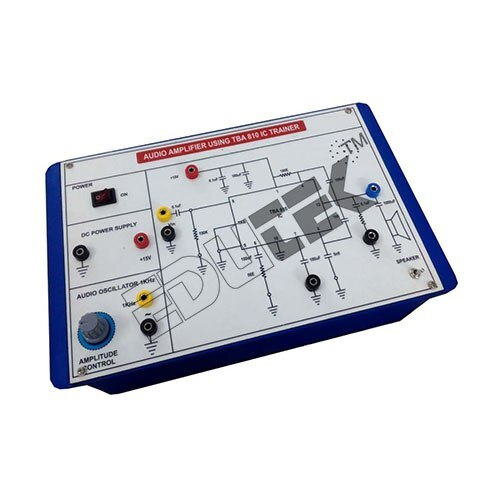

Audio Power Amplifier Using Ic Tba 810 - Application: Engineering Electronics Instruments
Price: 1500.00 INR / Piece
(1500.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Input | Low-level audio signal (microphone, audio device) |
| Output | Speaker (Typically 8 Ohm, 5W max) |
| Color | Green (PCB color), Black (IC body) |
| Interface | Terminal blocks for input/output; DC Jack for power |
| Thermal Conductivity | Depends on heat sink used; IC includes inbuilt overheat protection |
| Response Time | Instantaneous for audio signals |
| Power Supply | Battery or DC Adapter |
| Components | IC TBA810, capacitors, resistors, speaker connector, terminal block, PCB, heat sink |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Operating Temperature | 0C to +70C (IC TBA810 specification) |
| Features | Simple construction, compact size, short circuit protected, integrated gain, suitable for small speakers |
| Power Source | External DC supply |
| Product Type | AUDIO POWER AMPLIFIER USING IC TBA 810 |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 9V DC |
| Supply Voltage | 9V to 15V DC (Typical) |
| Size | Compact, fits in palm (PCB ~5cm x 3cm) |
| Dimension (L*W*H) | Approx. 50mm x 30mm x 15mm |
| Function | Audio Power Amplifier Circuit |
| Weight | Approximately 50 grams (with PCB and components) |
| Thickness | PCB: 1.6 mm (typical) |
| Current Rating | 500mA (Typical, depending on load) |
| Capacity | 5 Watts output power |
| Frequency | Audio frequency range (20 Hz to 20 kHz) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Green (PCB color), Black (IC body) |
| GSTIN | 0% |
Product Overview
Key Features
AUDIO POWER AMPLIFIER USING IC TBA 810
Features:
Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
Fuse for Short Circuit protection
Instruction manual.
Connections are brought out through 4mm Colored Sockets.
Patch Cords 4mm.
The trainer is housed in ABS Plastic cabinet
