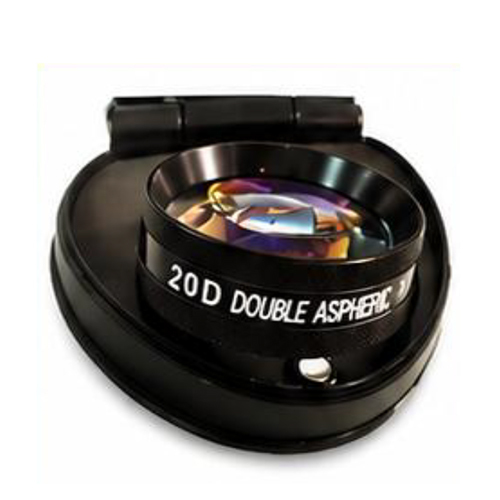

Aspherical Lens - Bk7, B270 Or Pyrex Materials, Diameter Range 10-300 Mm, ±0.15 Mm Tolerance, Premium Optical Quality

We have attained a notable position in the market by exporting, manufacturing and supplying an excellent quality collection of Aspherical Lens in Changchun, Jilin, China. Glass aspherical lens is also called condenser lens, mainly applicable for stage lighting, optical lighting system, etc. We bring in hot briquetting technology from Japan, with volume production ability, including aspherical lens such as BK7 aspherical lens, B270 aspherical lens, PYREX aspherical lens which surface form error is within 100 micron.
Specification:
MaterialBK7,A B270 or PYREX
Diameter Range10-300A mm
Diameter Tolerance+0.00/-0.15A mm
Center thickness+/-0.5%
Focus+/-7%
Aspheric lens face formchecked by caliper
Surface finish: processing surfacex: I /2; y: 2I
A
Standard Products:
Part No.MaterialEFLOD1OD2CTET
TCA101B27018.5124A 10.41.54
TCA102PYREX37.150A 232.5
TCA103PYREX36.452A 242
TCA104B27074.473530.6810.052.3
TCA105PYREX4850A 192
TCA106PYREX61.7868.5A 24.122
TCA107B2706.256.5A 2.6790.942
TCA108PYREX126.5775A 14.252.8
TCA109B270190.180A 15.243.8
Note: Other size,A material and coatings are available upon request.A
