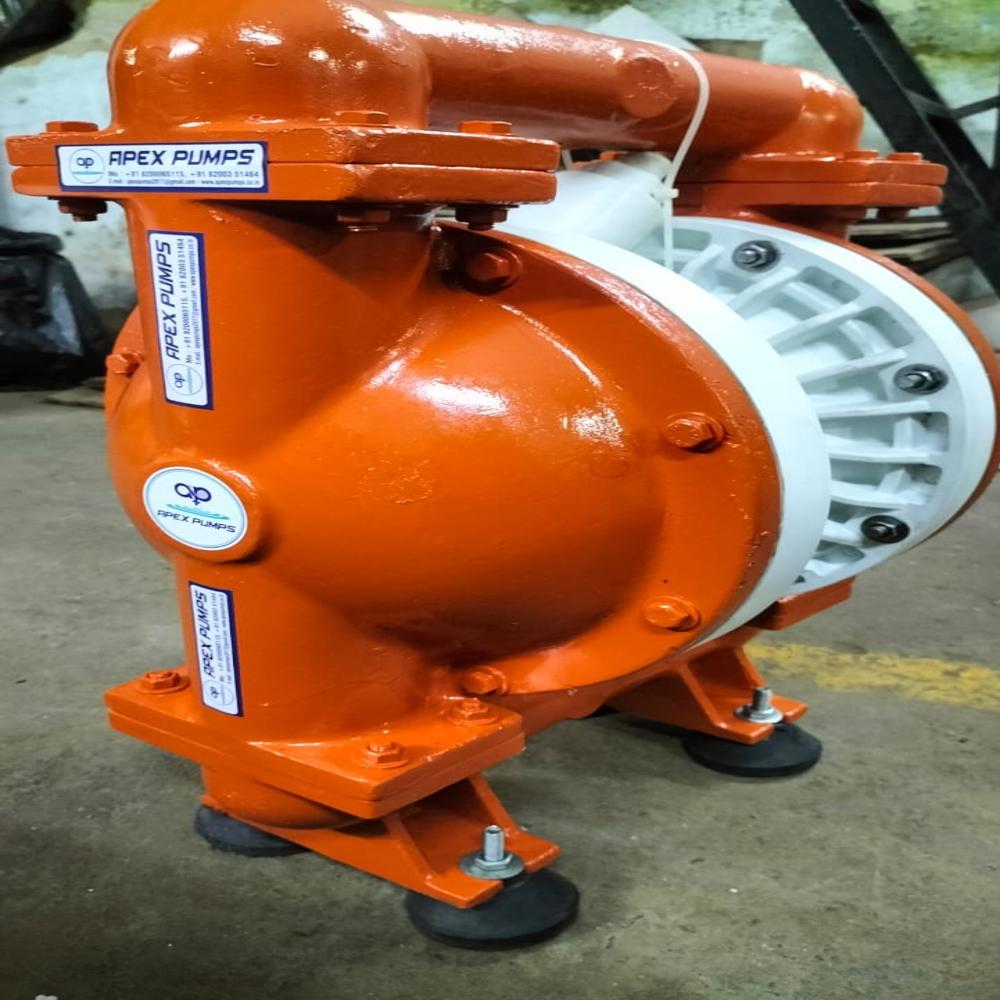

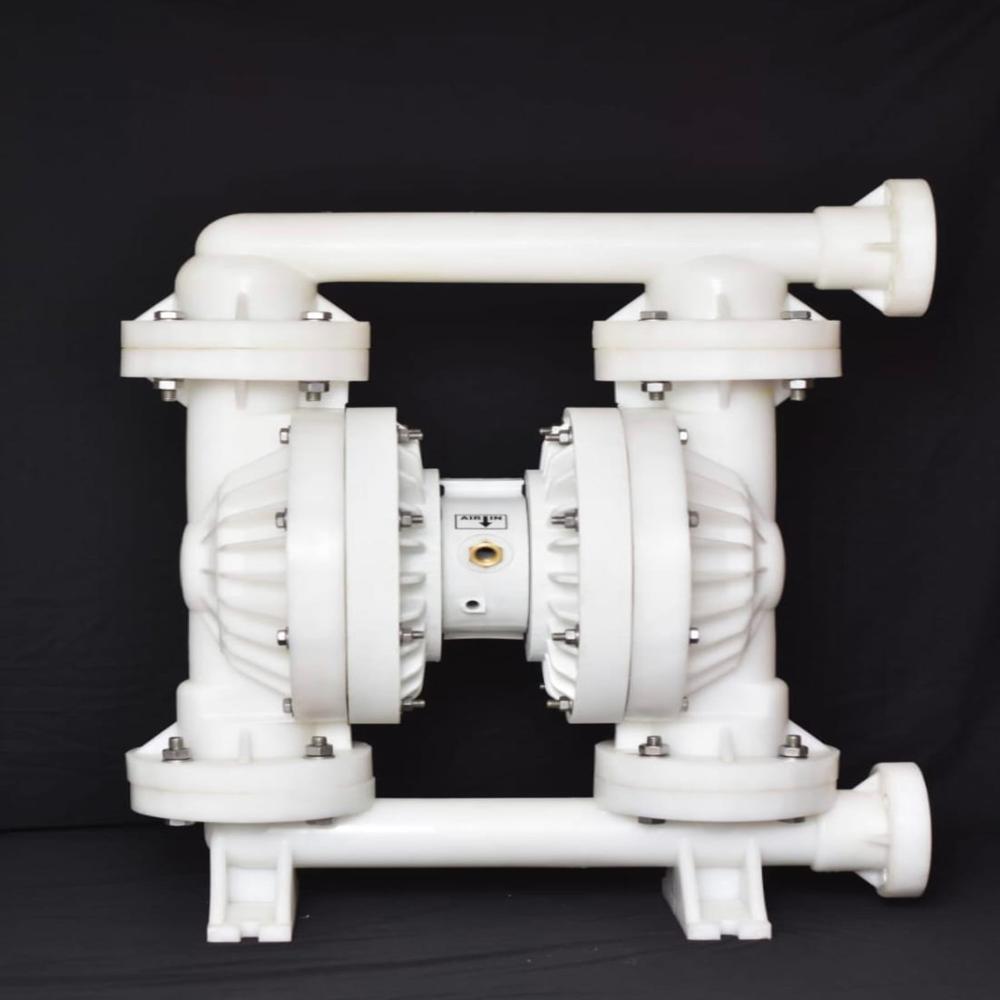

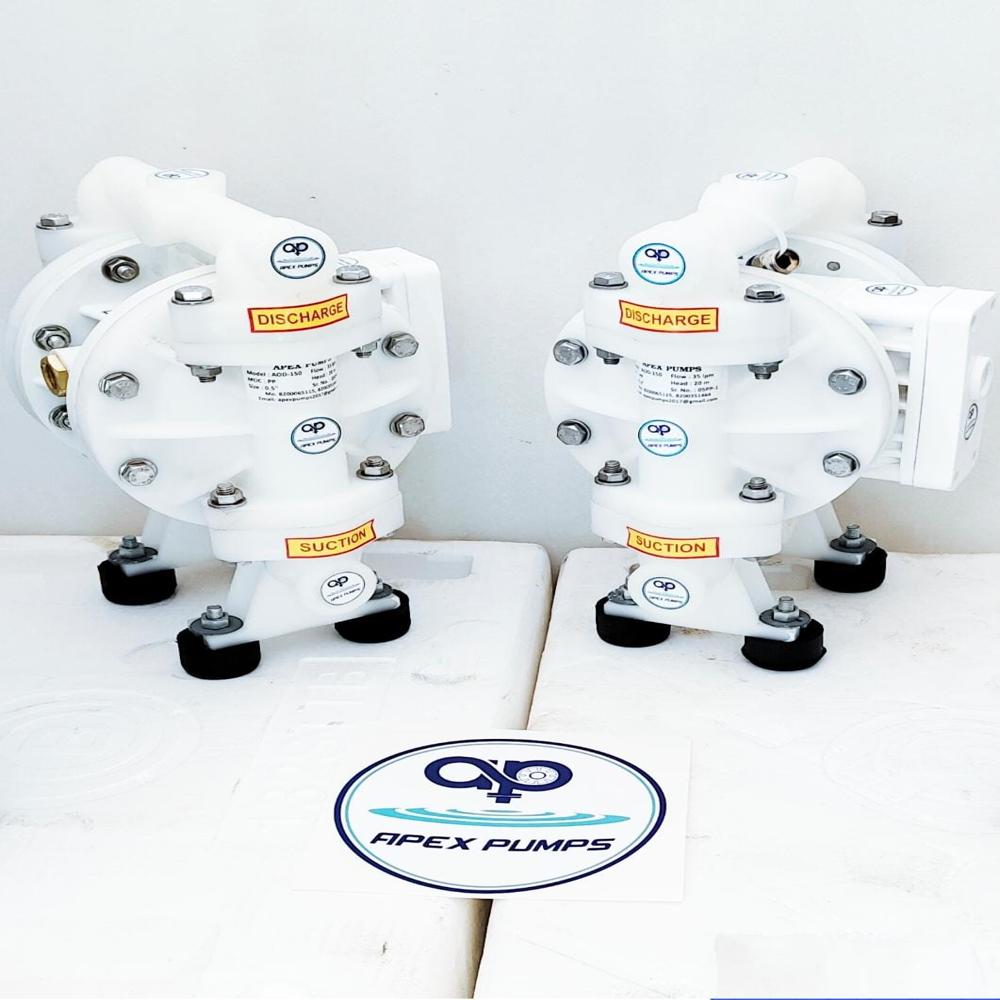

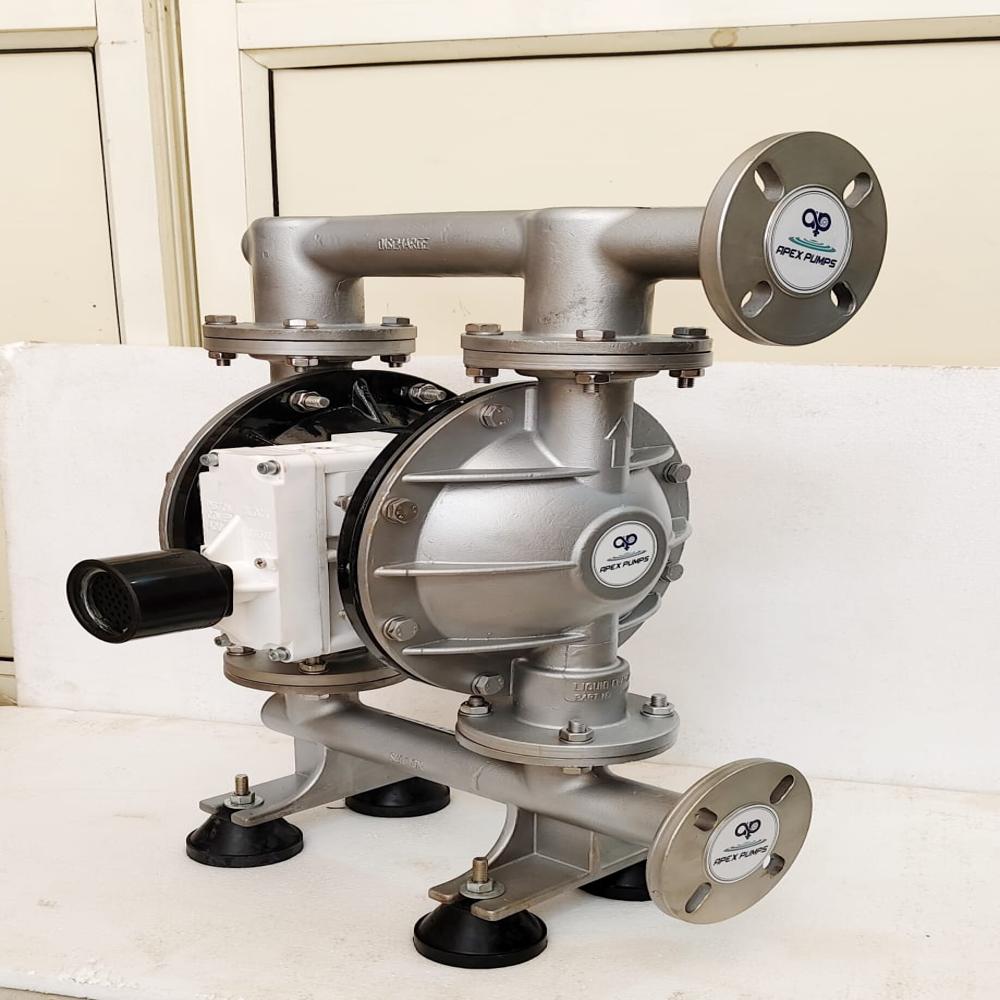

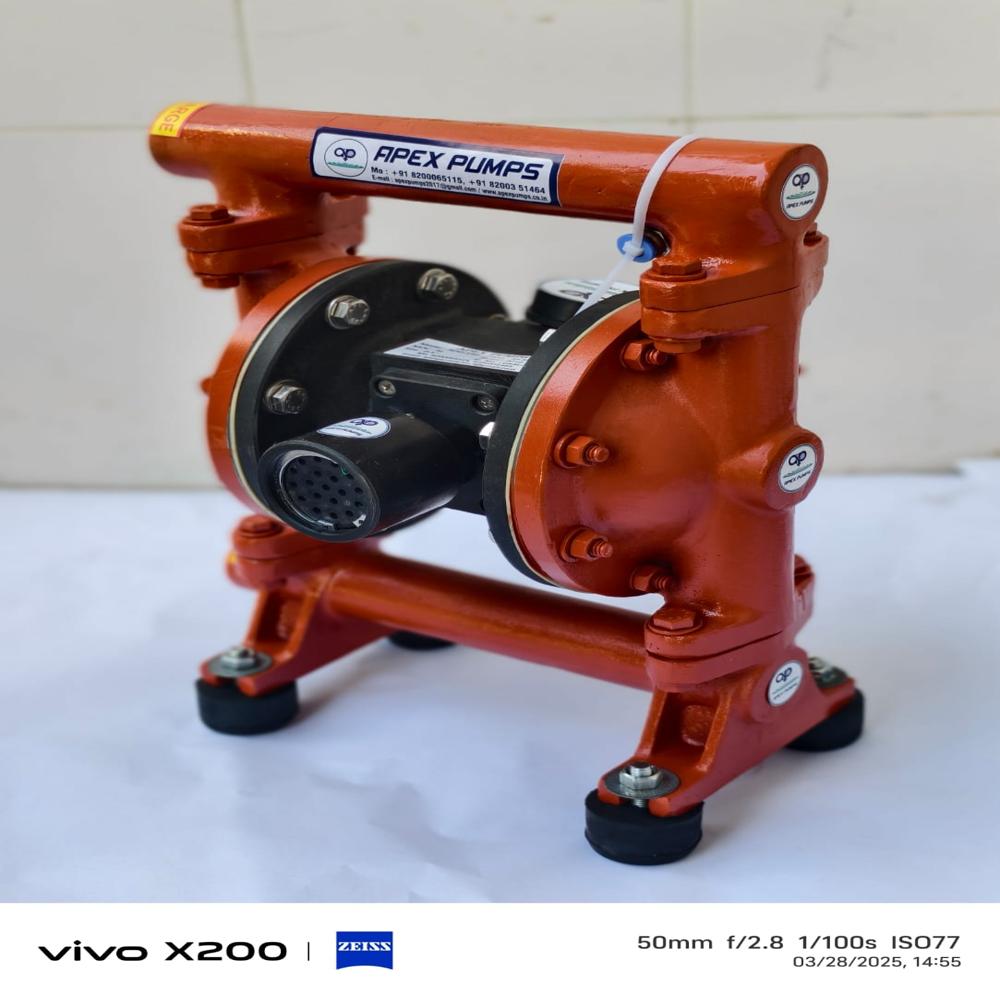

Aod Diaphragm Pump

Name: AOD Diaphragm Pump
Price: 15000.0 INR
Availability: InStock

Price: 15000.0 INR / Piece

Get Latest Price

Minimum Order Quantity :

1 Piece

In Stock

Max Suction	Up to 5 meters (wet), Up to 3 meters (dry)
Voltage	Not Applicable (Operation by compressed air)
Working Temperature	-10C to 80C
Noise Level	Below 85 dB(A)
Discharge Pressure	Up to 120 psi
Theory	Other, Reciprocating, Air Operated Double Diaphragm (AODD)
Inlet/Outlet	1 BSP/NPT (Other sizes available: 1/4 to 3)
Mounting Type	Floor or Base Mounted
Flow Rate	Up to 340 LPM (varies by model)
Features	Run Dry Capability, Self-Priming, Handles Solids, Low Shear, Dead-head without damage
Control System	Manual or automatic (via air controls)
Caliber	19 mm to 76 mm (dependent on model)
Head Size	Up to 84 meters (varies by model)
Speed	Variable (dependant on air supply)
Material	Aluminum, Polypropylene, Stainless Steel, Cast Iron, PVDF, PTFE
Structure	Other, Diaphragm Pump, Double Acting
Power	Other, Pneumatic - Compressed Air
Standard	ISO, CE Certified
Pressure	Other, Up to 8.4 bar (120 psi)
Usage	Other, Chemical Transfer, Slurry, Food Processing, Water Treatment, Paint & Ink, Solvents
Application	Other, Industrial, Chemical, Mining, Food & Beverage, Pharmaceutical
Suction Type	Positive
Seals Type	Nitrile, PTFE, EPDM, Viton depending on model
Priming	Self-priming
Pump Type	Other, Air Operated Diaphragm Pump
Capacity	Up to 340 L/min
Delivery Time	5-10 Days
