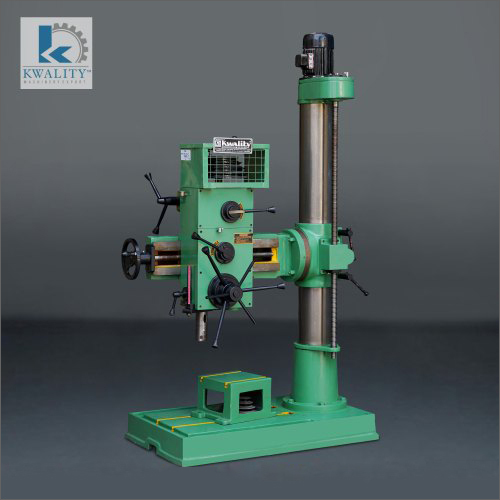

All Geared Radial Drilling Machine By Kismat Machinery Sales

With the help of skilled professionals and good knowledgeable experience, we are involved in supplying and trading quality-assured spectrum of All Geared Radial Drilling Machine in Bhosari, Maharashtra, India. Product Details: Minimum Order Quantity 1 Number Automatic Grade Semi-Automatic Drilling Capacity 50 mm Spindle Travel 325 mm Weight 3500 kg Maximum Speed(rpm) 40-2300 Capacity (Millimeter) 50 Column Diameter (Millimeter) 300 Condition New Drill Type Radial Motor Power (Horsepower) 5 Key Features: The main spindle is made of "EN9" material & Hardness. MT bore internally ground. Accuracy and run out of 0.01 to 0.03 is main spindle shafts. Pinion Shafts is made of "EN8" material and hardness. Provided 4-8 Speeds by accurate balancing. Spindle Sleeve is ground. Drill head can be set on column guide way by simply adjusting the wedge only. Work light. Box work table. Auto feed [4/0.10 To 0.25mm] Coolant system. Adjustable depth control [with auto stop] Nitride hardened "RAM" All gears are made of alloy steel [Gear Material] Heat treatment [50 to 60 HRC] hardened & Lapped running in oil bath fitted with splined shafts. Ram is accurately ground and honing process is done in the body bore containing ram. All Bearing [SKF & NBC Bearing] All Electrical parts are of standard make. Square column guide surface is precision scraping process Precision ground alloy gears Spindle reverse and tapping control (optional) Especially spring type balanced spindle travel Emergency stop button Auto/Manual feed options Drilling last Capacity.:50mm Heavy Duty structures Strongly ribbed and a thick-walled base plate having built-in coolant tank & arm for maximum rigidity and minimum deflection Size of T-slots : 4/200MM.
