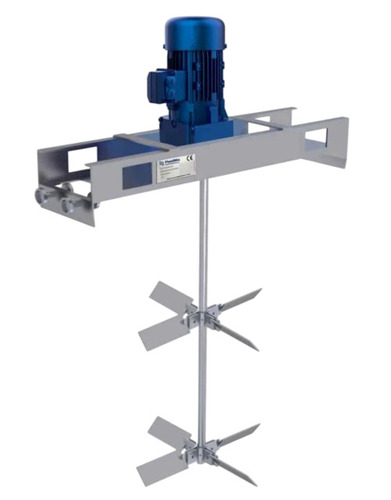

Aja Mud Agitator

Our range of AJA Mud Agitator is for drilling mud mixing. To keep drilling mud suspension but not precipitate

Features
Typical C face motor installation
Small footprint without skid
Helical-Bevel gearbox
Motor can be horizontal or vertical

Benefits
Longer usable life on motor and gear box
Require less space also easy to handle
High efficiency, low noise, low operating temperature
Adaptable for different application

Technique parameters
Model AJA5.5 AJA7.5 AJA11 AJA15 AJA22
Motor 5.5KW(7.5hp) 7.5KW(10hp) 11KW(15hp) 15KW(20hp) 22KW(30hp)
Shaft length According to tank size and clienta s requirement
Impeller type Canted or turbine paddle
Impeller layer Double or single
Impeller diameter A 600~A 1200mm
Speed 60RPM or 73RPM
Remark When shaft length exceeds 1.7m, there will be stabilizer

AJA Mud Agitator can be used widely in various applications. Including drilling mud mixture, chemical agitating, food or beverage, etc. It will be mounted on mud tanks or set right overmud pit. The mud agitator will help mix subject with powerful rate. To select mud agitator should know the processed subject, the tank dimension (including length, width, height). Then we'll get proper horse power, shaft length and impeller type.
