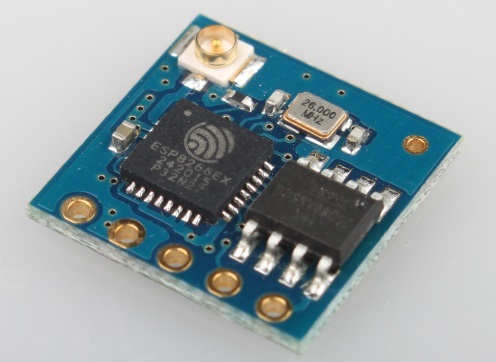

Ai-thinker Esp-02 Esp8266

With the support of our expert, our company is dedicated Manufacturer of Ai-thinker ESP-02 ESP8266 in Shenzhen, Guangdong, China.
Product Feature:
a c 802.11 b/g/n
a c Integrated low power 32-bit MCU
a c Integrated 10-bit ADC
a c Integrated TCP/IP protocol stack
a c Integrated TR switch, balun, LNA, power amplifier and matching network
a c Integrated PLL, regulators, and power management units
a c Supports antenna diversity
a c Wi-Fi 2.4 GHz, support WPA/WPA2
a c Support STA/AP/STA+AP operation modes
a c Support Smart Link Function for both Android and iOS devices
a c Support Smart Link Function for both Android and iOS devices
a c SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM,GPIO
a c STBC, 1x1 MIMO, 2x1 MIMO
a c A-MPDU & A-MSDU aggregation and 0.4s guard interval
a c Deep sleep power <10uA, Power down leakage current < 5uA
a c Wake up and transmit packets in < 2ms
a c Standby power consumption of < 1.0mW (DTIM3)
a c +20dBm output power in 802.11b mode
a c Operating temperature range -40C ~ 125C

Dimension:
Length*width*Height:16.3*14.9*3mm
PAD Size(Bottom):0.9*1.7mm
Pin Pitch:2.54mm

ApplicationA areaA
-- Latest version
--Serial CH340 turn wi-fi;
--Industrial passthrough DTU;
--Wi-fi remote monitor/control;
--Toys field;
--Color LED control;
--Fire control, security intelligent integration management;
--Smart card terminals, wireless POS machine, wi-fi camera, handheld devices, etc
