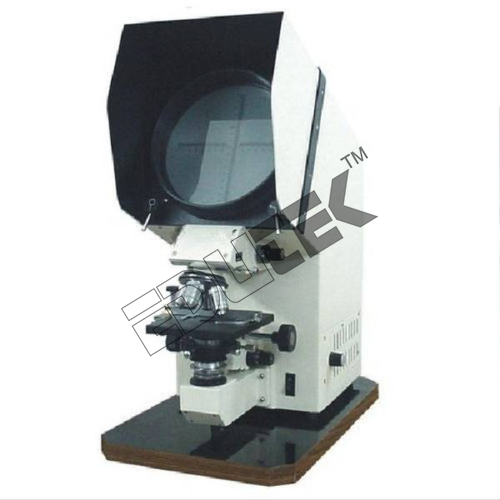

Advance Projection Microscope Etms-148 - 195 Mm Graduated Screen, 360â° Rotatable Screen-head | 5x To 40x Objective Magnification, Built-in Base Illuminator

Price:

Get Latest Price

Brand Name :

Edutek

In Stock

Product Specifications

Spare Parts	Lamp, fuse, projection bulb, stage clips, objectives, eyepiece
Focus System	Coarse and fine coaxial knobs
View Head	Inclined monocular projection head
Features	Bright and sharp screen image, rugged body, precision focusing, suitable for group viewing and demonstration
Theory	Other, The Advance Projection Microscope is designed for enlarged viewing of microscopic specimens, allowing projection onto a screen for group observations, demonstrations, and teaching purposes.
Drawtube	Other, Monocular projection tube
Sensor	Not applicable (Optical projection system)
Resolution	Depends on projection optics; typically up to 0.2 micron with standard achromatic objectives
Interface	Manual controls; no digital output
Frame Rate	Not applicable (optical projection only)
Focal Distance	Adjustable, typically 45mm
Magnification	100x, 200x, 400x, 600x, 1000x (depending on objective and eyepiece combination)
Dimensions	Approx. 430mm x 230mm x 210mm (H x W x D)
Focus Range	Coarse and fine focus, range up to 20mm total
Eyepieces	Projection eyepiece 10x wide field
Eyepiece Tube	Inclined monocular projection head (60Adeg inclination)
Illumination	Built-in incandescent lamp with condenser for bright field illumination
Coarse Adjustment Range	Approximately 30mm
Fine Adjustment Range	Approximately 2mm
Working Stage	Large mechanical stage with slide clips, stage size approx. 120mm x 120mm
Still Image Capture Resolution	Not applicable (no camera hardware)
Video Capture Resolution	Not applicable (no camera hardware)
Image Format	Projected optical image; suitable for screen sizes up to 150mm diameter
Interpupillary Distance	Not applicable (monocular head)
Objective Achromatic	Achromatic objectives 10x, 40x, 100x (oil immersion)
Condenser	Abbe condenser with iris diaphragm and filter holder
Light Source	6V/20W halogen lamp, adjustable intensity
Payment Terms	Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
Sample Available	Yes
Sample Policy	Sample costs shipping and taxes has to be paid by the buyer
Packaging Details	carton box, export quality also available
Main Export Market(s)	Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001 ,CE
