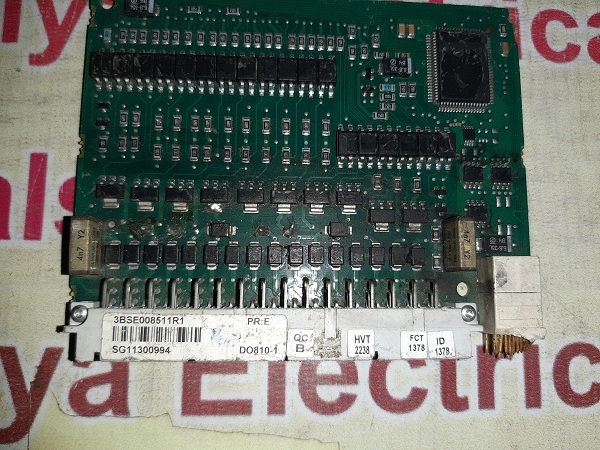

Abb Pec Card - Multi-layer Fr4 Pcb, 150x100x20mm, Green, Digital & Analog Output, Upgradable Firmware, Edge Connector, Low Energy Consumption, Abb Acs Series Compatible

Abb Pec Card - Multi-layer Fr4 Pcb, 150x100x20mm, Green, Digital & Analog Output, Upgradable Firmware, Edge Connector, Low Energy Consumption, Abb Acs Series Compatible

Get Latest Price

Brand Name :

Abb

In Stock

In Stock

Product Specifications

Mounting TypeScrew/Plug-in Mount
FeatureReliable, Precise Control, Easy Replacement
Surface FinishSolder Masked and Silkscreened
Overheating ProtectionOther, PCB-level thermal resistance
ShapeRectangular
IP RatingNot Rated (for internal enclosure use)
Operating Temperature-10AdegC to 60AdegC
Humidity %<95% (Non-condensing)
Connector TypeEdge/PIN type
EfficiencyHigh
Insulation MaterialFR4 Epoxy
Product TypePEC (Power Electronic Controller) Card
ApplicationIndustrial Automation, AC Drive Control, PLC
Protection LevelOther, Standard Electronic PCB Coating
Frequency (MHz)50-60 Hz Compatible
Rated Voltage24V DC
Energy ConsumptionLow
Output TypeDigital and Analog
ColorGreen PCB with Mixed Components
Dimension (L*W*H)Approx. 150mm x 100mm x 20mm
WeightApprox. 200g
PhaseThree Phase Compatible
Input Voltage24V DC
SizeStandard ABB Drive Module Size
Connection TypeEdge Connector / Plug-in
MaterialHigh-grade PCB Material

Product Overview

Key Features

ABB PCB CARD
