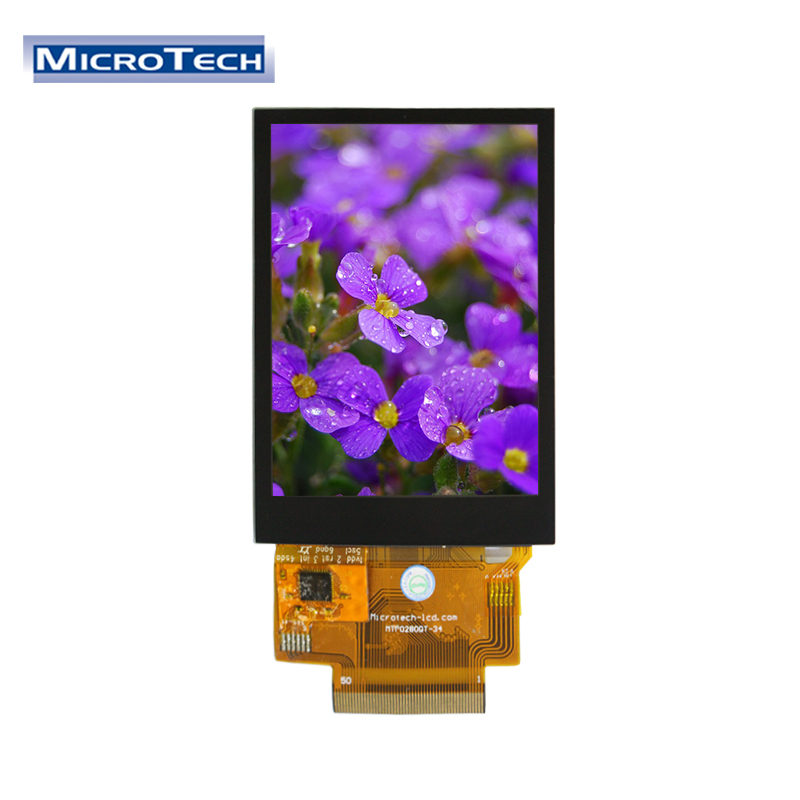

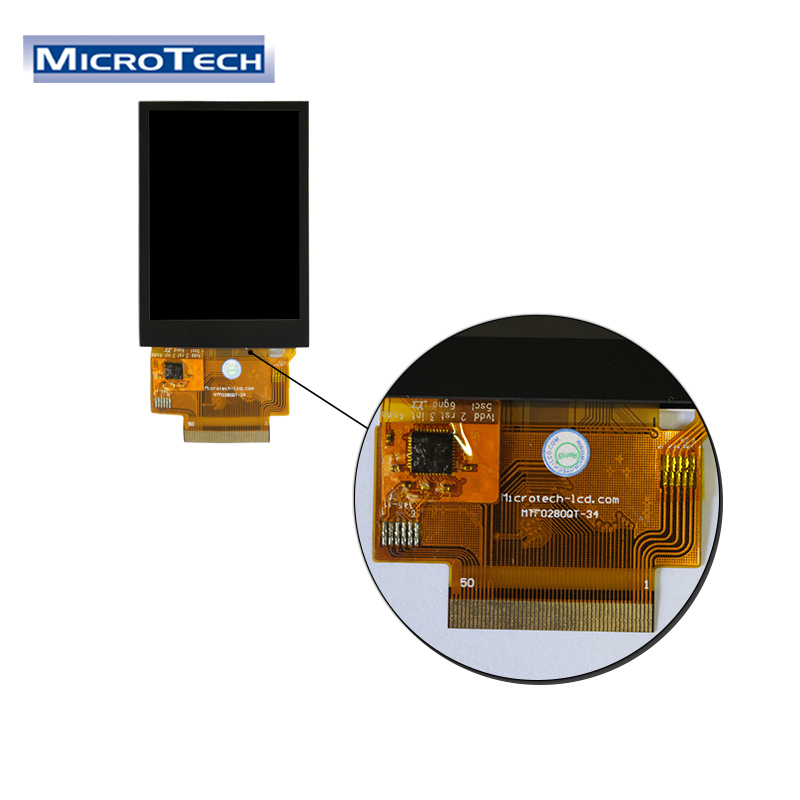

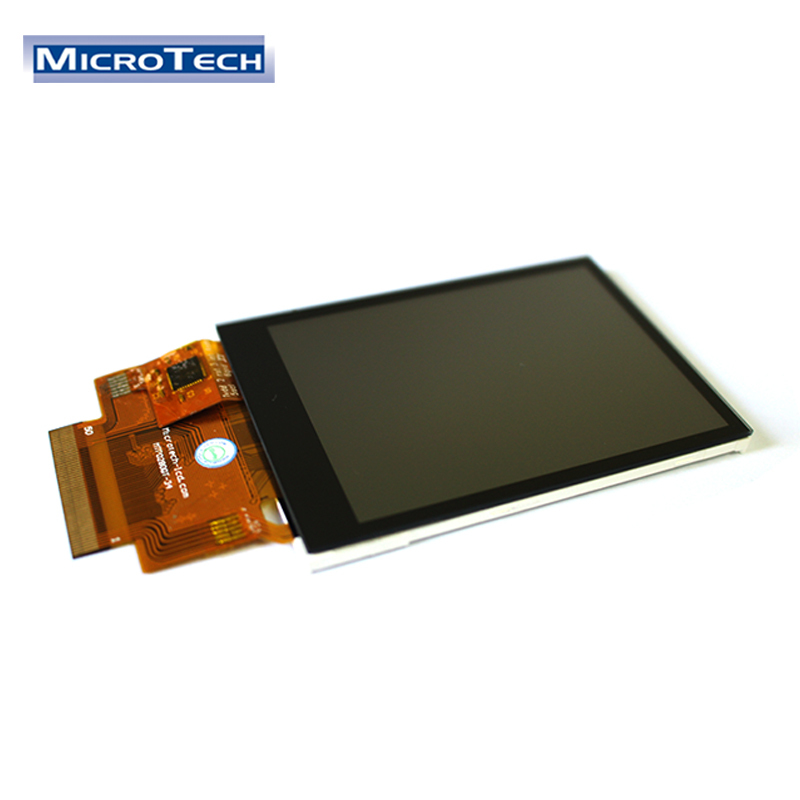

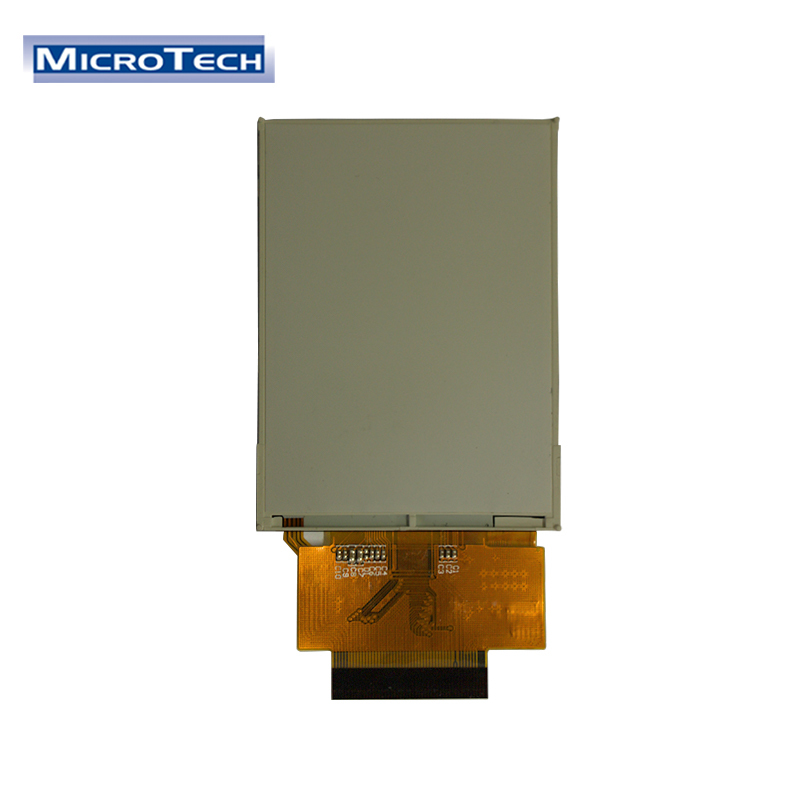

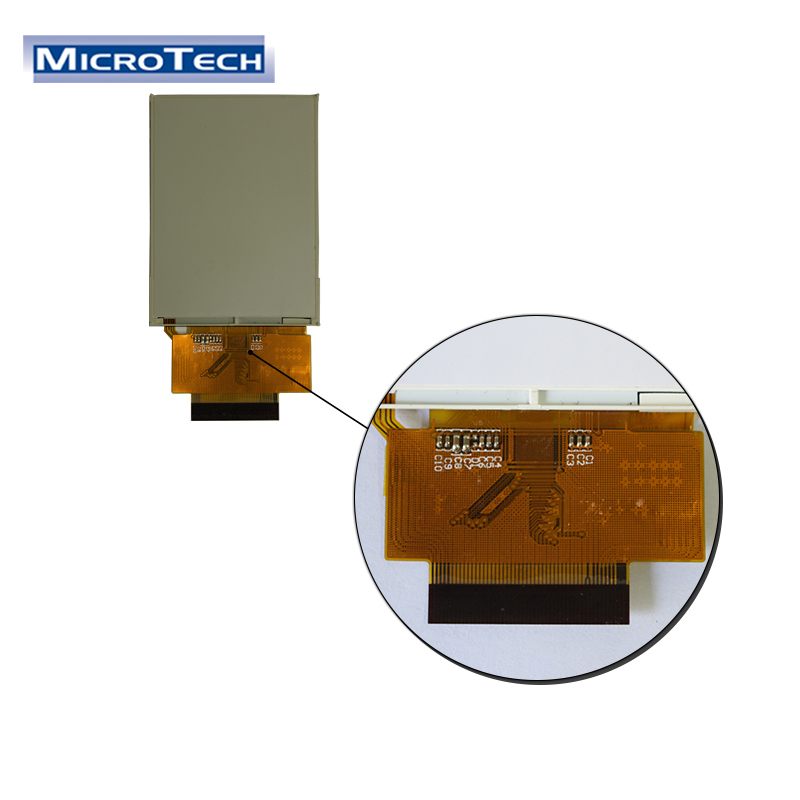

2.8 Inch Tft Lcd Screen Display Module - 240x320 Resolution, 50.0x69.2x2.45 Mm Dimensions, Fast Response Time, Wide Viewable Angle, Low Power Consumption

2.8 Inch Tft Lcd Screen Display Module - 240x320 Resolution, 50.0x69.2x2.45 Mm Dimensions, Fast Response Time, Wide Viewable Angle, Low Power Consumption

Name: 2.8 inch TFT LCD Screen Display Module
Price: 9.9 USD
Availability: InStock

Price: 9.9 USD / Piece

Get Latest Price

Minimum Order Quantity :

2 Piece

Brand Name :

Microtech

In Stock

Product Specifications

Power Supply	DC
Power Source	External DC supply 3.3V
Display Type	Other, TFT (Thin Film Transistor)
Input	SPI/Parallel 8-bit/16-bit interface
Output	Visual output on TFT LCD screen
Features	Touch function, wide viewing angle, high contrast, fast response
Components	TFT LCD panel, PCB, touch screen
Interface	Parallel 8/16-bit and SPI
Resolution	240 x 320 pixels
Usage	Arduino, Raspberry Pi, ARM, STM32 microcontroller projects
Sensors Specification	Resistive touch screen (if touchscreen variant)
Response Time	Approx. 5-20 ms
IP Rating	Not rated / None
Operating Temperature	-20AdegC to +70AdegC
Product Type	TFT LCD Display Module
Application	Embedded systems, industrial control, consumer electronics
Rated Voltage	3.3V
Supply Voltage	2.7V - 3.6V
Size	2.8 inch (Diagonal)
Dimension (LWH)	78 mm x 60 mm x 3 mm
Function	Displays visual data and interfaces for embedded projects
Color	Full Color (RGB) / 262K colors
Weight	Approx. 35 g
Thickness	~3 mm (including PCB)
Current Rating	Approx. 150 mA (operating)
Frequency	Typically not specified, depends on interface mode
