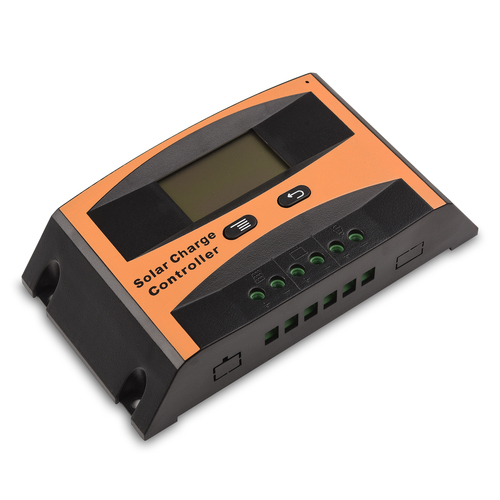

192v-50a Solar Charge Controller

Our company is widely involve in offering 192V-50A Solar Charge Controller, that is designed by using top quality components and material to ensure industrial quality standards. These are used for controlling charging & discharging of battery and protects the whole battery bank. These are precisely made and checked on different quality parameters to provide a flawless range of Solar Charge Controllers at the clients end.
Model SDC192V 50A/60A
Matched battery group192V
Rated current of solar panel 50A/60A
Maximum voltage of solar panel352V
Maximum power of solar panel9.6KW/11.52KW
Solar panel group quantity 2 circuits
Rated current of each solar panel25A/30A
Method of workingWorking continuously
Function Charging and control
State display LCD
Protection class IP30
Operating environment Temperature:-10-40 a Humiditya 80%
Solar panel group stop charging voltage i 235VA 2
Solar panel group recharging voltage i 216VA 2
Integrated battery connection cable i 10mmA /12mmA
Max itself power consumption without load 300mA
Voltage drop between solar panel and battery 2V
Applicable altitude i 1000 m
Product size 520*430*220mm
Weight 18Kg
