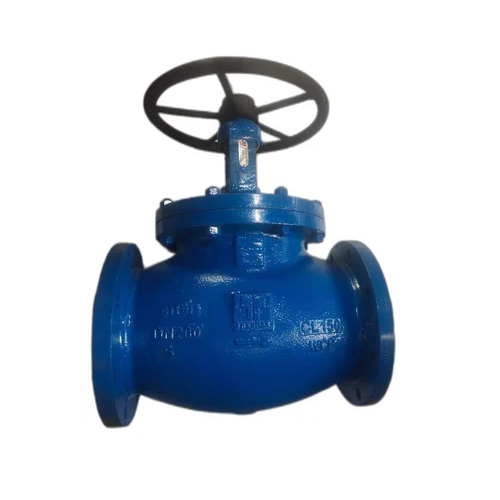

125 Lbs Globe Valve
Price:
Get Latest Price
In Stock
Product Specifications
Body Material | Astm A126A(B) |
Pressure | 125Lbs |
Design Standard | Mss Sp-85 |
Flange Dimension | Ansi B16.10 |
Face To Face | Ansi B16.1 |
Test Standard | Mss Sp-85 |
Working Temp | 100 C |
Features | High Pressure, Reliable Sealing, Durable Design, Easy Operation, Versatile Use, Precise Control, Long Lifespan |
Product Overview
Key Features
Material: A126B
Trade term: FOB
Certification: ISO, CE, DQS
Pressure: 125lbs Design standard: MSS SP-85
Face to face: ANSI B16.10
Flange dimension: ANSI B16.1
Test standard: MSS SP-85
Application:
Working temp: 100A C
Working pressure: 125LB
Suitable media: water, steam, oil and more not recommended for steam service
Caution: freezing weather precaution - subsequent to testing a piping system, globe valves should be left in an open position to allow complete drainage
Materials:
Body material: ASTM A126A(B), GG20 GG25
Seat ring material: ASTM B36/B62, SS410, brass, bronze
Disc material: ASTM A126A(B), GG20 GG25
Steel ball material: A216 WCB, GS-C25
Packing material: graphite, graphite bonnet gasket
materials: graphite, graphite
Stud materials: A216 WCB, GS-C25
Nut materials: A216 WCB, GS-C25
Gland materials: ASTM A126A(B), GG20 GG25
Stud materials: A216 WCB, GS-C25
Bonnet material: ASTM A126A(B), GG20 GG25
Yoke nut material: ASTM B36
Brass Screw material: A216 WCB, GS-C25
Stem material: SS410, X10Cr13
Hand-wheel material: ASTM A126A(B), GG20 GG25
Washer material: A216 WCB, GS-C25
Nut material: A216 WCB, GS-C25
