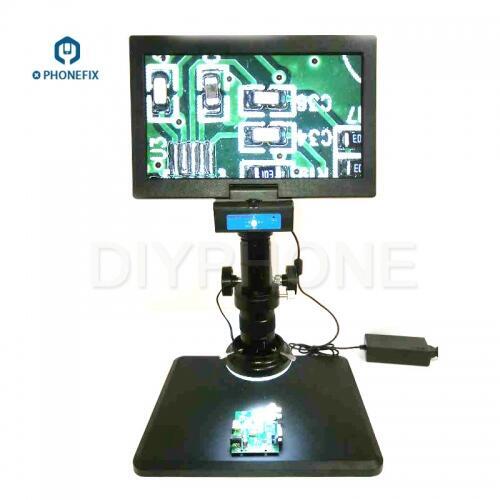

10.6 Inch Display Multi-functional Two Dimensional Integrated Digital Microscope - 10.6 Inch Ips Rotatable Screen, 1920x1080 Camera, 17-130x Magnification | Mobile Phone Logic Board Repair

All-in-one 2D integrated digital microscope for mobile phone logic board repair.
Digital camera: 1/2.5 inch, 2 million pixels, image resolution 1920*1080, output
Interface: USB 2.0 Output HDMI-USB 2.0 Output

The Introduction of Integrated Machine Parameter
Integrated design, patented appearance design, the screen can be rotated and folded
The whole machine has only one power input plug and it is simple to install the wiring
Comparative instructions: About the traditional video microscope, the display is a separate suspension installation
There are three power lines, namely cameras, displays, and light sources. But the installation is troublesome
Display: 10.6 inch IPS full-angle display, can be rotated 270A , left and right, can be folded 180A , back and forth
Display Resolution: 1366*768 / 1920*1080
Digital Camera: 1/2.5 inch, 2 million pixels, high speed
Image Resolution 1920*1080
Frame Rate: 45 frames / second
Output Interface: USB 2.0 Output HDMI-USB 2.0 Output
Optical Magnification: 0.7-4.5X
Electronic Magnification: 17-130X (standard) Max 1000 times
Auxiliary Illuminant: 72 high-brightness a R5mm LED lamp beads, brightness can be adjusted
Focusing Type: Column focusing bracket
Workbench :320*260MM
