Durable : Yes\015\012Condition : New\015\012Power Source : Electric\015\012Country Of Origin : India\015\012Style : Charging Discharging Machine\015\012\015\012It is suitable for aging test of ternary, lithium iron phosphate, lead acid, nickel-hydrogen-\015\012nickel-cadmium battery packs.\015\012

Scope of equipment application: mainly used in battery production or experiments including lithium-ion batteries, lead-acid batteries, cadmium-nickel batteries, nickel-hydrogen batteries, etc. Life aging test (Circle Life Testing) and quality control. Supported test content: Battery cycle life test

\342\200\242 Energy feedback energy-saving, in the test process has the effect of charging energy saving (90%), discharge feedback (88%), small heating, so as to achieve the purpose of saving energy and reducing costs for users.\015\012\342\200\242 The voltage and current of the equipment are connec

Charging and Discharging mode: \015\012Stand still, pause, constant current charging CC, constant voltage charging CV, constant resistance charging CR, constant current and constant voltage charging CCCV, constant power charging CP, constant current discharge DC, constant power rate discharge DP, co

Battery test system is independently developed by Semco Infratech Pvt Ltd. This product is used for battery module in production or experiment life aging test and quality control, device channels are single point independent, support multi-channel parallel, independent duct thermal stability. When

Functionality\015\012Life cycle testing Capacity testing\015\012Charging and discharging characteristics testing\015\012Charging and discharging efficiency testing\015\012Over charging and over discharging endurance testing\015\012DC Internal resistance testing\015\012Dynamic testing

Scope of application: BCDS series charge-discharge test equipment is mainly used for lithium discharge cycle test. \015\012Battery charge-Test items: Battery charging protection voltage, discharge protection voltage, capacity etc. The device has four test steps: charging, discharging, shelving, and

1.Input power AC380V\302\26115% 50/60\302\2615Hz\015\0122.Power factor \342\211\24599%(Full load)\015\0123.THDi \342\211\2445%(Full load)\015\0124.Input resistance \342\211\2451M\316\251\015\0125.Input power 50.8KW\015\0126.Input current 77.2A/single\015\0127.Overall system efficiency(Max) 90%\015\

Channel features: Discharge energy feedback to the grid; adopting a dual closed-loop structure, constant current and constant voltage conversion can smoothly transition, effectively preventing current spikes and large currents from impacting the battery cells, protecting the battery cells.\015\012Cu

It is applicable to the aging test of battery packs such as ternary, lithium iron phosphate, lead acid,\015\012nickel-nickel-cadmium, etc.\015\012It is suitable for the same battery pack and separate battery pack.\015\012Equipment output voltage rangeTenV~200VModulation, stability, output current ra

The constant voltage and constant current charging is safe and smooth, and the voltage and current sampling output of the device is controlled through the four-wire system connection for soft start, so as to make a safe and smooth transition in the constant voltage and constant current charging pr

Equipment characteristics Energy Feedback Energy-Saving Type, There is energy saving during the test (80%), the effect of discharge feedback (75%), heat is small, so as to achieve the purpose of energy saving and cost reduction for users Constant Current to Constant Voltage Charging Safely and Smoot

We are well established firm offering Battery Testing Equipment including Charging Discharging Battery Testing Machine, Semco SI BCDS 75V 20A 8CH, Battery Charging Discharging System Semco SI BCDS-V 60V 200A 4CH that are highly demanded among the clients.

SEMCO INFRATECH PRIVATE LIMITED - Manufacturer of Battery Testing Equipment, Semco Cell Testing Machine For Lab, Battery Charging and Discharging System (Semco SI BCDS 75V 40A 6CH) from Delhi, Delhi, India.

Semco Infratech Private Limited - Battery Testing Equipment (76)

All Categories

Charging Discharging Battery Testing Machine

Semco SI BCDS 75V 20A 8CH

Battery Charging Discharging System Semco SI BCDS-V 60V 200A 4CH

Battery Charging and Discharging System 120V 60A 1CH

Semco SI BCDS-P 750V 200A 2CH

HYNN Battery Charge and Discharge Cabinet (HYNN Semco -PT 60V 30A 8CH)

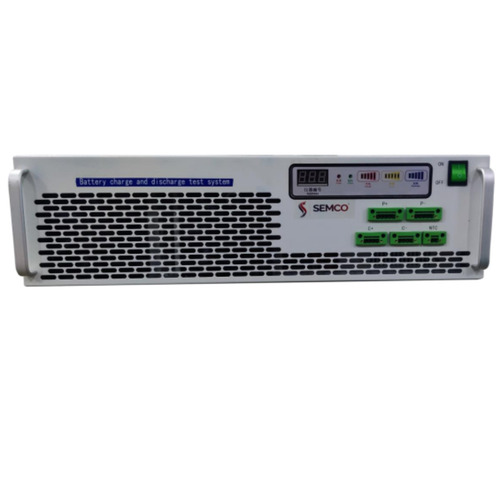

Battery Charging Discharging System Semco SI BCDS 100V

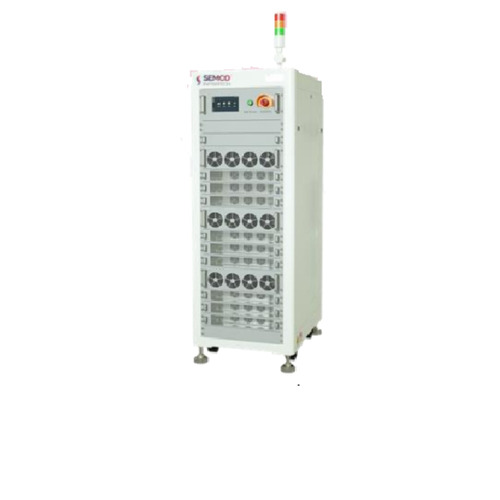

Battery Charging Discharging System Semco SI BCDS 120V 30A 12CH

PT Battery Charging Discharging System 100V

Battery Charging and Discharging System Semco SI BCDS 200V 100A 1CH

Battery Charging and Discharging System Semco SIT 5V 60A 8CH

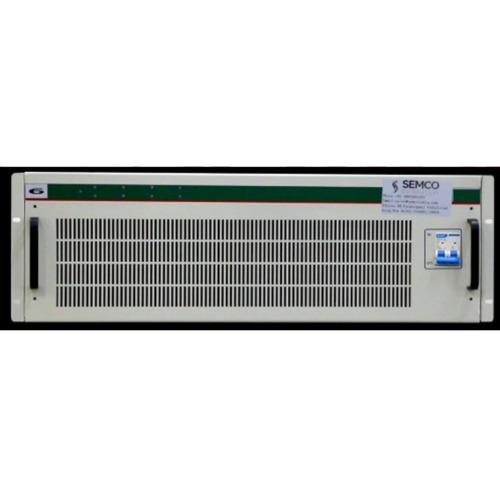

Battery Charging Discharging System Semco SI BCDS 75V 40A 4CH
