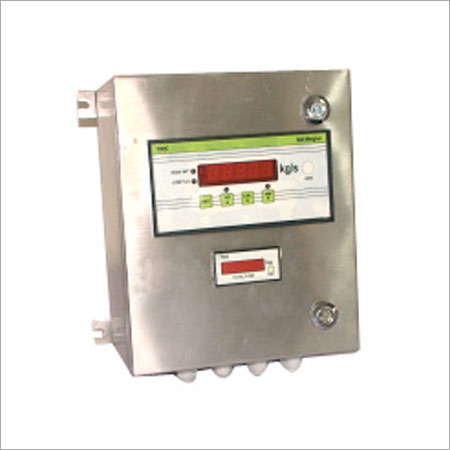

Weight Indicator Smit 3016

This Weight Indicator SMIT 3016 is a micro-controller based Indicator unit. It is highly versatile, accurate and different from the conventional indicators. It displays analog signal (mV) input form the load-cell into engineering values. With the help of the keypad and display, unit allows to set and modify various configuration parameters and calibration. General Specifications of this unit are: On board 24-bit ADC is provided for Digitising Analog Input. Filtering: Analog & Digital Sampling speed: 15 readings/second Power Supply: 24 VDC Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor Remote input for GROSS/NET, TARE and Zero functions Display: 6-digit 7-segment 0.56a Red LED Decimal position: Selectable. Key board: Four keys membrane like Programmable Parameters: Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range Configuration Data are stored in serial NVRAM, Battery back up not required Calibration through software (Offset: a Za & Span: a Sa stored in NVRAM) Optional: Serial Port for communication with the remote display/Printer/Computer using RS-485/RS-232 Outputs: One Digital output (opto isolator) Retransmission: 4-20 mA/0-10V Proportional indicated weight Enclosure: Plastic, General Purpose, Panel Mounting type Dimension: Outer: 96 mm (W) x 48 mm (H) x 110 mm (D) Cut-out: 92 mm (W) x 44 mm (H)
