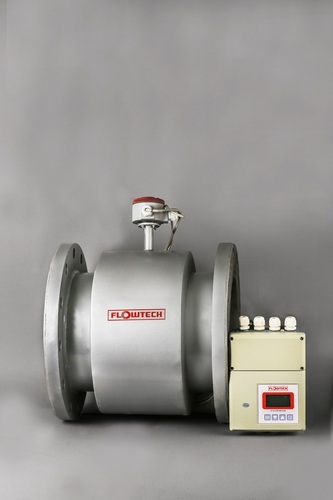

Magnetic Flowmeter - Accuracy: +/- 1 Fsd %

The Electromagnetic Flowmeter or Mag Meters are suitable for flow measurement in all kinds of conductive fluids, and it is especially suited for flow measurement of Water, Waste Water, Sludge and other fluids containing particles. The flow meter is easy to install and put to service.

Measurement :

Electromagnetic flow meters may have either Direct Current (DC) or Alternating Current (AC) excitation. When systems are AC excited, electrostatic and/or electromagnetic noise may influence the measurements. A DC excited system however, is less sensitive to noise produced by electromagnetic induction, simply because the voltage induced over the electrodes will be a DC voltage. The drawbacks are measurement errors due to electro-chemical polarization between the electrodes and the fluid.The Electromagnetic Flow Meters are excited by a 2.5 Hz square wave and thereby eliminate the drawbacks of both DC and AC systems. A microprocessor receives and measures the amplitude of the pulse with a 16 - bit resolution, and converts and displays the result on the display unit.


Working Principle:
This is working on the principal of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field.

Applications:
Scientific laboratory
Research centres
Chemical industries

Specifications:
Material of Construction: MS, SS 304, SS 316 & SS 316L
Process Pressure: Max. 25 kg/cm2
Process Temperature: Max. 150 Deg C
Nominal Dia (mm): 15 to 1600mm
Material of Construction: MS, SS 304, SS 316 & SS 316L
Electrode Material: SS 316, SS 316L, Hastelloy a ca , & Tantalum
Process Pressure: Max. 25 kg/cm2
Process Temperature: Max. 150C
Flow Tube Material: SS 316
End Connection: Flange/Wafer
Flange- Standard: ANSI B 16.5 150 #RF / 300 # RF
Measuring Range: 0.5 m/sec for Minimum & 5m/sec for Maximum
Accuracy: A 1%
FSD Optional: A 0.5% FSD
Repeatability: 0.3%
Display: 2 Line Alfa Numeric LCD
Display Version: Integral /Remote
Display Unit: Standard Unit in M3, Litre
Power Supply: 230 VAC, 110 VAC & 24 VDC
Output: Std. 4 a 20 mA / RS 485 / PULSE / HART
Protection Class for Sensor: IP 65
Protection Class for Transmitter: IP 65
Cable Length for Remote: 30meters
Meters Installation: Inline Flange Type.
