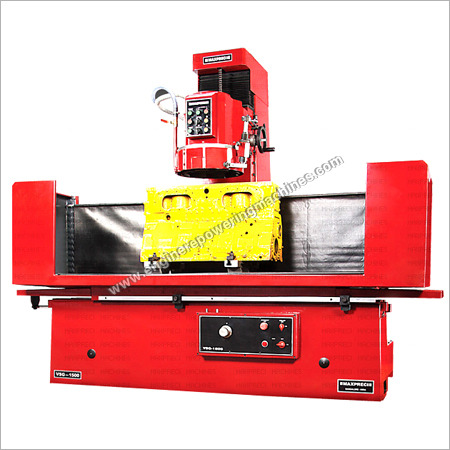

Vertical Hydraulic Surface Grinding Machine - Dimensions 4000x1300x2250mm, Grinding Length 1500mm | High Speed, Maintenance Free, Unmatched Performance
Price:
Get Latest Price
In Stock
Product Specifications
| Features | High Speed, High Productivity, Maintenance Free, Unmatched Performance, Affordable Rates, Speed Driven, Reliable Operation |
| Head Vertical Traverse | 900Mm, 720Mm, 600Mm |
| Machine Dimensions | 4000X1300X2250Mm, 2600X1200X2050Mm, 2480X1200X1900Mm |
| Max Grinding Length | 1500Mm, 1200Mm, 1000Mm |
| Max Grinding Width | 450Mm, 400Mm, 350Mm |
| Max Table Traverse | 1800Mm, 1500Mm, 1300Mm |
| Segment Wheel Dia | 450Mm, 400Mm, 350Mm |
| Spindle Motor | 7.5Kw, 5.5Kw, 3.75Kw |
| Weight | 3000Kg, 1850Kg, 1500Kg |
Product Overview
Key Features
With our reliable efforts and dedication, we are able to manufacture and supply a hi- tech Hydraulic Surface Grinding Machine and Vertical Hydraulic Surface Grinding Machine. Integrated with the combination of high speed and productivity, our machines are available in different hydraulically operated milling speeds and table movements. Further, our clients can avail the Vertical Hydraulic Surface Grinding Machine at affordable rates. Before final dispatch, we inspect the machines on various defined quality parameters.
Features:
- Speed driven model
- Maintenance free
- Unmatched performance
Further Details:
| TECHNICAL SPECIFICATIONS | VSG 1800V | VSG 1500V | VSG 1300V |
| MAX.AUTOMATIC TABLE TRAVERSE | 1800 MM (71") | 1500 MM (59) | 1300 MM (51) |
| HEAD VERTICAL TRAVERSE | 900 MM (35.45') | 720 MM (28.3) | 600 MM (24) |
| SEGMENT WHEEL DIA | 450 MM (17.7") | 400 MM (15.7) | 350 MM (14) |
| MAX. MILLING WIDTH | 400 MM (15.75") | 300 MM (14) | 300 MM (11.8) |
| MAX.GRINDING WIDTH | 450 MM (17.7") | 400 MM (15.7) | 350 MM (14) |
| MAX. GRINDING LENGTH | 1500 MM (59") | 1200 MM (47) | 1000 MM (41) |
| MIN./MAX.DISTANCE BETWEEN TABLE & SEGMENT WHEEL | 0 - 900 MM (0 - 35.5") | 0 - 720 MM (0-28.4) | 0 - 600 MM (0-24) |
| DISTANCE FROM COLUMN TO TABLE CENTER | 396 MM (15.6") | 350 MM (14) | 350 MM (14) |
| GRINDING SPINDLE ROTATION SPEED | 900 RPM | 1440 RPM | 1440 RPM |
| MILLING SPEED VARIABLE | 80 - 600 MM | 80 - 700 RPM | 80 - 700 RPM |
| MIN./MAX.TABLE FEED SPEED (STEPLESSLY VARIABLE) | 0 - 4500 MM / MIN | 0 - 4500 MM / MIN. | 0 - 4500 MM / MIN. |
| SPINDLE MOTOR | 7.5 KW / 10 HP | 5.5 KW / 7.5 HP | 3.75 - 0.75 K.W / 5 -1 HP |
| HEAD RAPID FEED MOTOR | 0.44 KW servo motor | 0.19 KW / 0.25 HP | 0.19 KW / 0.25 HP |
| HYDRAULIC SYSTEM MOTOR | 1.1 KW / 1.5 HP | 0.75 KW / 1 HP | 0.75 KW / 1 HP |
| COOLANT PUMP MOTOR | 0.09 KW / 0.12 HP | 0.09 KW / 0.12 HP | 0.09 KW / 0.12 HP |
| LENGTH OF MACHINE | 4000 MM (157") | 2600 MM (103) | 2480 MM (95) |
| WIDTH OF MACHINE | 1300 MM (51") | 1200 MM (47) | 1200 MM (47.25) |
| HEIGHT OF MACHINE | 2250 MM (89") | 2050 MM (81) | 1900 MM (75) |
| WORK SPACE REQUIRED (LXW) | 5750 MM X 1600 MM | 3800 X 1500 MM (122 X 59) | 3100 X 1500 MM (110 X 59) |
| WORK HEIGHT REQUIRED | 2350 MM (93") | 2150 MM (85") | 2050 MM (81) |
| NET WEIGHT | 3000 Kg ( APPROX ) | 1850 KG (APPROX.) | 1500 KG (APPROX.) |
| GROSS WEIGHT | 3250 Kg ( APPROX ) | 2500 KG (APPROX.) | 2420 KG (APPROX.) |
| SHIPPING VOLUME | 15 M3 | 9 M 3 | 8 M 3 |
| PACKING CASE OUTER SIZE (LXWXH) | 4250 X 1500 X 2485 MM (114 X 55 X 93) | 2900 X 1400 X 2360MM (114 X 55 X 93) | 2650 X 1400 X 2205 MM (104 X 55 X 87) |
| STANDARD ACCESSORIES | VSG 1800V | VSG 1500V | VSG 1300V |
| SETTING UP PARALLEL 135 HEIGHT | 1 PAIR | 1 PAIR | 1 PAIR |
| SEGMENT WHEEL | 1 NO | 1 NO | 1 NO |
| SEGMENT STONES | 8 NOS | 8 NOS | 8 NOS |
| T-BOLT WITH NUT AND WASHER | 8 NOS | 8 NOS | 8 NOS |
| BLOCK TIGHTENING CLAMP | 4 NOS | 4 NOS | 4 NOS |
| HEAD CLAMPING PLATE WITH STUDS | 2 NOS | 2 NOS | 2 NOS |
| WHEEL BALANCING SHAFT WITH NUT | 1 NO | 1 NO | 1 NO |
| GRINDING WHEEL DRESSER | 1 SET | 1 SET | 1 SET |
| COOLANT TANK WITH ELECTRIC PUMP | 1 NO | 1 NO | 1 NO |
| DOUBLE END SPANNER (24 26) | 1 NO | 1 NO | 1 NO |
| ALLANKEY SET (9 NOS) | 1 SET | 1 SET | 1 SET |
| LEVELLING PLATES WITH BOLTS | 3 NOS | 3 NOS | 3 NOS |
| FOUNDATION BOLT WITH NUTS | 3 NOS | 3 NOS | 3 NOS |
| MILLING TOOL DIA. 12MM | 1 NO | 1 NO | 1 NO |
| SEGMENT WHEEL PULLER | 1 NO | 1 NO | 1 NO |
| HANDLE TYPE ALLENKEY 4MM | 1 NO | 1 NO | 1 NO |
| DIALING ROD | 1 NO | 1 NO | 1 NO |
| OPERATING MANUAL | 1 NO | 1 NO | 1 NO |
OPTIONAL ACCESSORIES:
- HEAD CLAMPING DEVICE
- WHEEL BALANCER
- ROLL OVER FIXTURE
- SETTING UP PARALLEL 50MM HEIGHT
- SETTING UP PARALLEL 250MM HEIGHT
- UNIVERSAL HEAD CLAMPING FIXTURE
- FLY WHEEL & CLUTCH PLATE GRINDING ATTACHMENT
Company Details

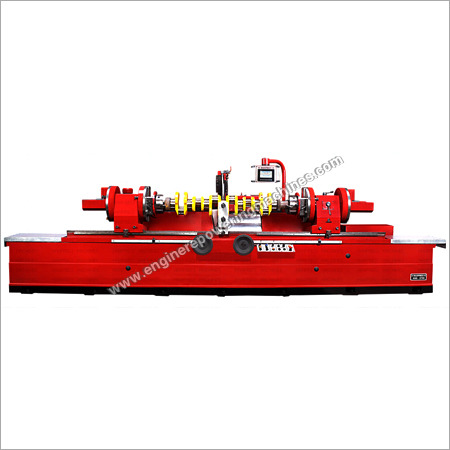

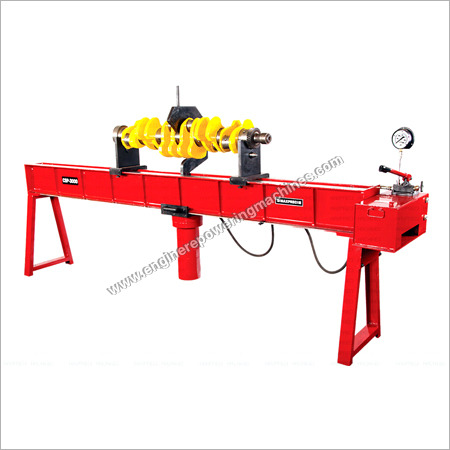

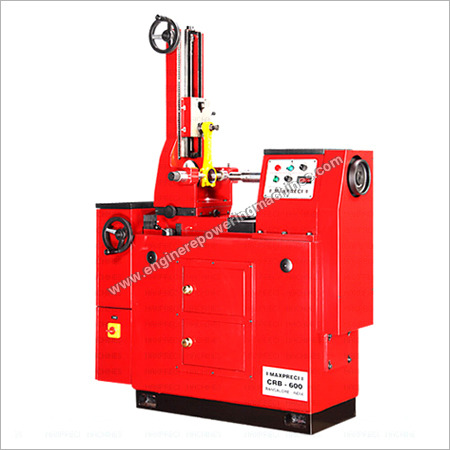

MAXPRECI MACHINES PVT. LTD. is listed in Trade India's list of verified sellers offering supreme quality of Connecting Rod Boring Machine, Crankshaft Grinding Machines, Crankshaft Straightening Press, etc. Buy Machineries in bulk from us for the best quality products and service.
