Vacuum Contactor - Psgvc-400, 3.3 Kv/6.6 Kv Rated Voltage, 400a Current | High Breaking Capacity, Long Life, Compact Design, Electrical & Mechanical Latch Types
Price:
Get Latest Price
In Stock
Product Specifications
| Control Supply Voltage | 110/220VDC |
| Electrical Life | 0.25 Million |
| Features | High Breaking Capacity, Long Life, Less Maintenance, Compact Design, Safety and Reliable, Versatile Applications |
| Interrupting Capacity | 36/72MVA |
| Mechanical Life | 2.5 Million |
| Rated Current | 400A |
| Rated Voltage | 3300/6600V |
Product Overview
Key Features

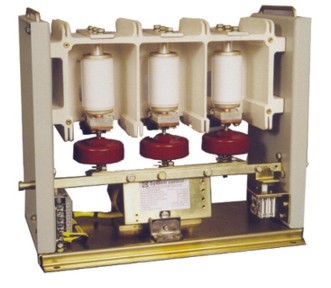

Pentagon Switchgear manufactures Single pole / Three pole VACUUM CONTACTOR - PSGVC - 7.2 of 3.3 kV / 6.6 kV, 400A with Electrical latch and Mechanical Latch types. These Vacuum contactors are manufactured using stringed quality checks. Vacuum contactors can be supplied as fixed type or Trolley trape. These contactors can be used for versatile applications such as high voltage motors, transformers, capacitors for improving power factor, electric furnace etc.,
"Pentagon" Brand Vacuum Contactors have the following special properties.
- High Breaking Capacity
- Long life time Less maintenance
- Compact Design
- Safety and Reliable
- Can be well operated with conditions of worse environment and frequent operation
- Mechanical interlock for forward and reverse operation
| Applicable Standards | IEC 470 - 1974 / IS 9046 - 1978 | Type PSGVC - 400 | |
| Rated Voltage | Operational | Volts | 3300 / 6600 |
| Rated Current | Operational | Amps | 400 |
| Interrupting | Capacity Current Voltage | MVA Amps Volts | 36 / 72 6300 3300 / 6600 |
| Making and Breaking Capacity | Making Current Breaking Current Duty Interval | Amps Amps Operations Seconds | 400 3200 'C' X 100 'O' X 25 10 |
| Short time current carrying capacity | Amps (RMS) | 4400 Amps for 12 secs 8800 Amps for 1 sec | |
| Over Current (Peak) Switching Frequency Mechanical Life Electrical Life Impulse Voltage withstand Power Frequency Voltage withstand | Amps Times/Hr Operation Operation kV KV | 85000 Amps in 10 ms 1200 2.5 Million 0.25 Million 60 20 | |
| Closing Time Opening Time Opening Speed (Average) Control Supply Voltage | ms ms m/Sec Volts | 105-150 25-40 500-600 110 / 220 (DC) | |
| Applicable Load Capacity | Motors Transformers Capacitors | KW KVA KVAr | 1500 / 3000 2500 / 5000 2000 / 2000 |
'C' - Close, 'O' - Open
