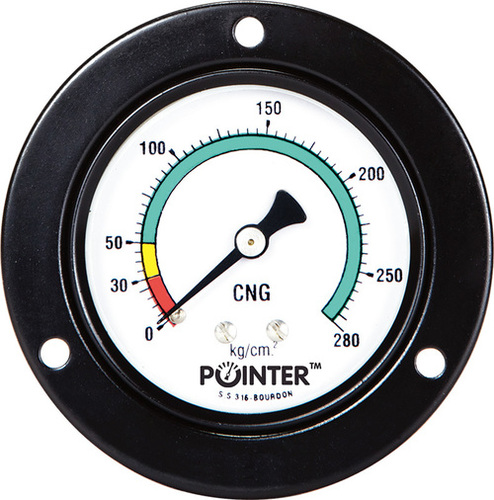

Available In Multicolor Utility Bourdon Type Pressure Gauge
Product Overview
Key Features
@page { margin: 0.79in } td p { margin-bottom: 0in } p { margin-bottom: 0.1in; line-height: 120% }
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
LatentStyleCount="267">
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-qformat:yes;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin-top:0in;
mso-para-margin-right:0in;
mso-para-margin-bottom:10.0pt;
mso-para-margin-left:0in;
line-height:115%;
mso-pagination:widow-orphan;
font-size:11.0pt;
font-family:"Calibri","sans-serif";
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;}
Being
a proficient entity of the industry, we are engaged in manufacturing and
exporting Utility Bourdon Type Pressure Gauge. This pressure gauge is used to
take the correct measurement without any complication. Our pressure gauge is
designed with finest quality materials and technical support to take
exact measurement in a simple way. This Utility Bourdon Type Pressure Gauge is
extremely popular for its low operating cost. We customize this pressure gauge
on the basis of the client's specifications.
Features:
Longer
functional lifeRugged
constructionHigh
performanceSpecial Features- Low Cost Version. Dry Or Liquid Filled. Accuracy Available (1.6% / 2.5%). Scales (On Demand) Ps i / Feet of Water / Meter of Water / Bar / Mpa / Kg/cm2 Application- Mainly For Water / Air / Food And Beverages / Pharmaceuticals / Pretrochemicals Industries / Pumps / Hydro Cleaning Machines , Presses , Engine Compressors Refrigeration / H V A CTechnical Specifications Technical Issues Specifications Size Available 40 / 50 / 63 / 80 / 100 / 150 / 250 mm Accuracy (Of Full Scale) 1.6% ( 100 / 150 / 250 mm) 2.5% ( 40 / 50 / 63 / 80 mm) Ambient Temperature (Deg C) -20 To 60 Deg C ( Max ) Process Temperature (Deg C) 120 Deg C ( Max ) Operating Pressure (% Of The Scale Value) 25 % To 75% ( Fs ) Over Pressure Limit (Upto 600 kg/cm2) Not Applicable Case Steel Black Powder Coated Ring Steel Black Powder Coated Joints Alloy Brazing / Soldering Socket Copper Alloy Bourdon Copper Alloy Upto 70 Kg 316 SS ( Above 70 Kg Upto 400 Kg ) Movement Copper Alloy Dial (Black Graduation On White Back Ground) Alluminium Pointer (Micro Meter Zero Adjustable) Alluminium / Black Window Sheet Glass Options - Accuracy: Refer The Specification Of Regular Series.Ambient Temperature: Refer The Specification Of Regular Series.Process Temperature:Max 65 Deg C.Dampining Liquid: lycerine 98%.Options Code -F G:Fillable Glycerine.F S: Fillable Silicon Oil.
