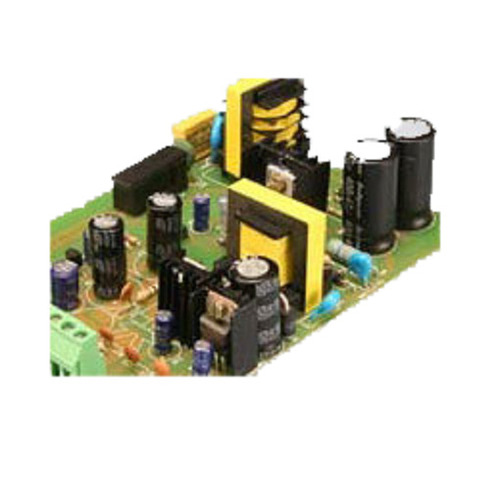

Switch Mode Power Supply - High Efficiency, Compact Design, 9-15v Adjustable Output | Latest Pwm Controller, Reliable Mosfets, Emi/rfi Filtering

We Microtech system is manufacturer & supplier of high quality diverse types of SMPS System in Ahmedabad, Gujarat, India. Manufactured as per the needs and specifications detailed by clients. These are used in Industries. You can also call this product as power pack, Dc to Dc converter, Switch Mode Power Supply, etc.

SALIENT FEATURES:

Latest state of the art current mode PWM controller.
Precise Designed
High Sturdiness
High Efficiency
MOSEFTs & UFR diodes used - increases reliability & efficiency.
Consumption 230/25 VAC compact, light weight, very efficient saving valuable & costly power.
DC UPS for battery backed instruments.
All I/O connections are available on wire connectors or screw terminals.



TECHNICAL SPECIFICATION:

Input


Output

On board EMI / RFI filter fuse protection, soft I/P rages:


LED status indicator

AC = 90-270 V upto - 50W


Line & load regulation <+/-0.5%

AC = 90-135 V or 180-270V


Ripple & noise <+/-1% p-p

DC = 9-15 V or 20-60 or 90-270 V


O/P, S/C, protection with optional OVP for single

AC = or 90-135 V or 180-270


o/p - precise current limit with VVCC & o/p voltage



+/-5% adjustable

Units can be directly paralleled for higher current requirements

By using external diode blocks (N+1) redundancy possible

I/O isolation 2 KV / 4 KV. up to 50 Deg. C ambient
