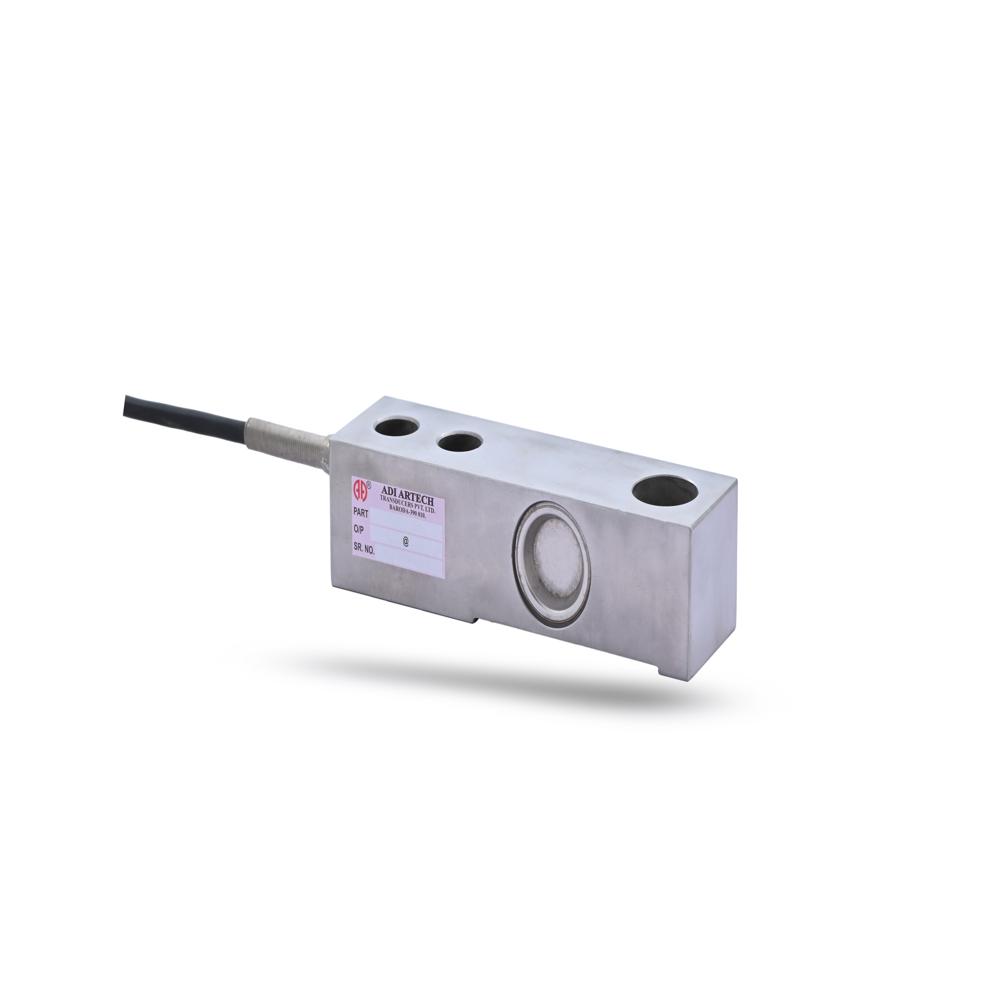

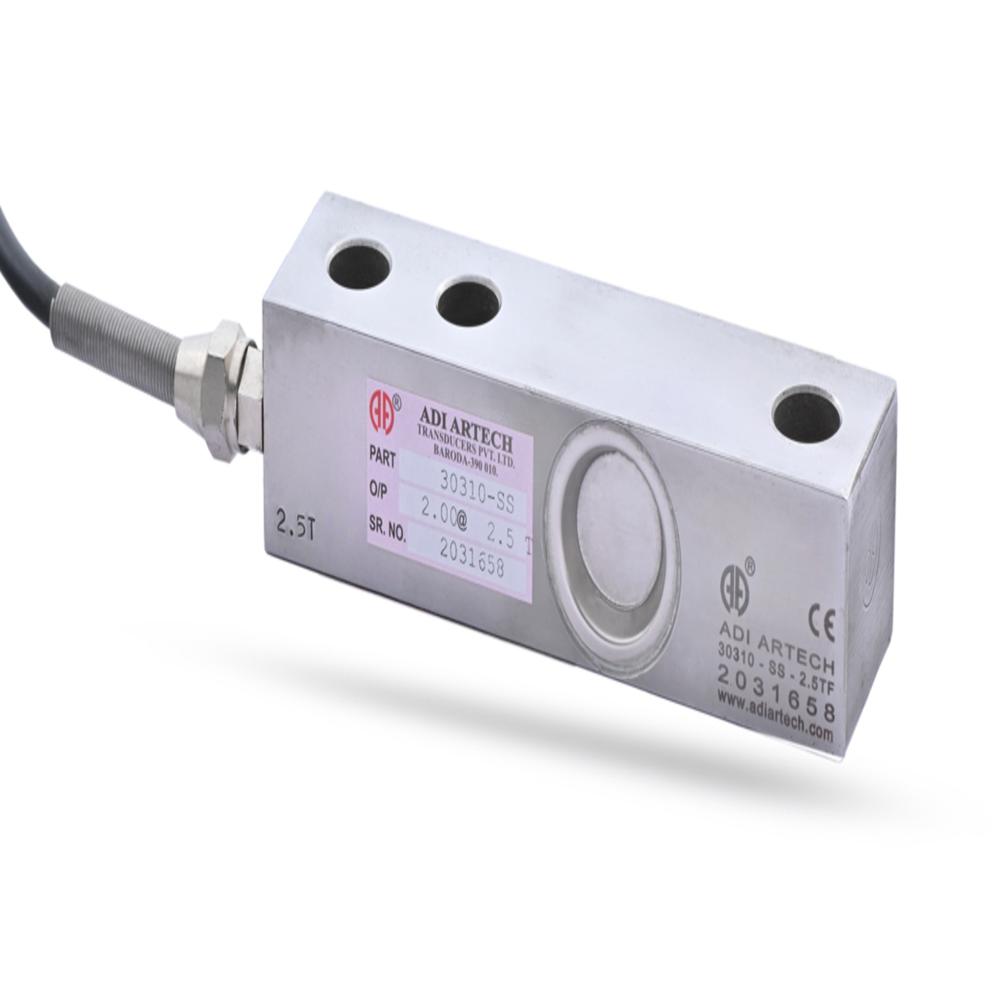

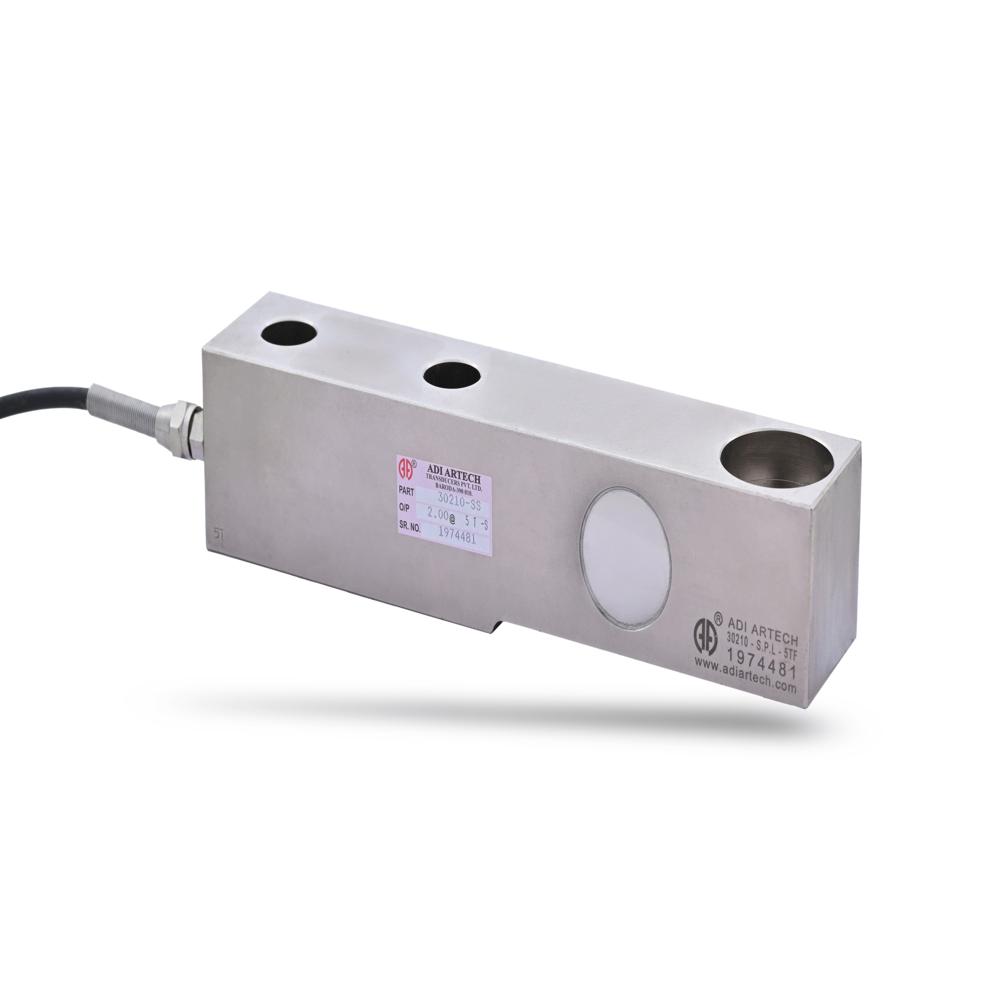

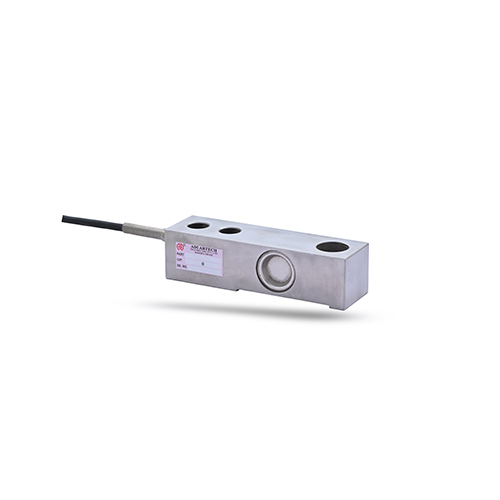

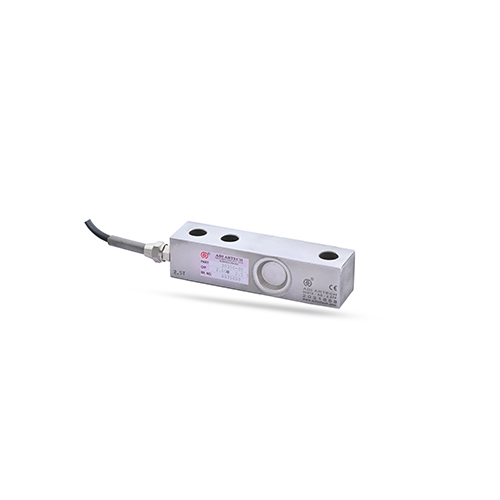

Single Ended Shear Beam Load Cell-ss - Accuracy: 1% F.s.
Price: 7080.00 INR / Number
(6000.00 INR + 18% GST)
Get Latest Price
MRP:
7080.00 INR / Number
Weight :
1.50 Kilogram
1 Pack Contains :
10
Minimum Pack Size :
1
In Stock
Product Specifications
| Operate Method | Force/weight applied in shear; strain gauges convert mechanical load into electrical signal |
| Display | Digital LCD |
| Product Type | Single Ended Shear Beam Load cell-SS |
| Capacity | 30 to 20000 Kg |
| Weight | 1.5 Kilograms (kg) |
| Application | Tank, hopper & bag weighing, Hanging & crane scales , Mechanical to electronic scale conversion ,Force, tension & compression measurement , Industrial automation, Process & machine automation, Robotics |
| Color | silver |
| Classification | Strain gauge based load cell (industrial weighing sensor) |
| Material | Stainless Steel 17-4 PH |
| Power | Rechargeable Battery Pack |
| Resistance | Input resistance: 392 15 Output resistance: 350 5 |
| Usage | Industrial weight and force measurement in harsh environments |
| Voltage | 10 VDC nominal, Maximum 15 VDC Volt (v) |
| Dimension (L*W*H) | 130*32*32 Millimeter (mm) |
| Output | Analog Sensor |
| Design | Compact & Portable |
| Theory | Resistance Sensor |
| Type | Single ended shear beam load cell |
| Power Source | Battery Operated |
| Accuracy | 0.025% FSO % |
| Illuminant | Inbuilt Backlight Display |
| Operating Voltage | 10 15 VDC excitation voltage Volt (V) |
| Output Voltage | 2 mV/V Volt (V) |
| Detector | Strain Gauge Based Load Cell |
| Charging Time | Approx. 2-3 hours |
| Compensated Temperature | 10 C to 50 C Celsius (oC) |
| Storage Temperature | 10 C to 50 C Celsius (oC) |
| Operating Temperature | 0 C to 60 C Celsius (oC) |
| FOB Port | VADODARA |
| Payment Terms | Cash Advance (CA), Cash in Advance (CID), Cheque, Others |
| Supply Ability | 100 Per Week |
| Delivery Time | 1 Week |
| Packaging Details | Standard |
| Main Export Market(s) | Middle East, Africa, Asia, Australia, North America, South America, Central America, Eastern Europe, Western Europe |
| Main Domestic Market | All India |
| Certifications | OEM TEST CERTIFICATE |
| Packsize | 10 |
| GSTIN | 18% |
| Weight | 1.50 Kilogram |
| Shipping Type | actual |
| Pkg Box Breadth | 5.00 cm |
| Price | 6000.00 INR (Approx.) |
| Currency | INR |
| Color | silver |
| Mop | 1 |
| Returnable | No |
| Price Type | fixed |
| MRP | 7080.00 INR |
| Pkg Box Height | 5.00 cm |
| Stock Quantity | 1 |
| Brand Name | ADI ARTECH TRANSDUCERS PVT LTD |
| Unit Type | Number |
| Pkg Box Length | 18.00 cm |
| Minimum Ordered Packs | 1 |
