Sewer Suction Machine By Supertech Engineers

1. Tractor Mounted Sewer Suction Machine
TANK
1.Capacity a 5000 ltr
2. Shape a Round shell and spunned dish end with knucle radius.
3.Material a 5 mm thick m.s. sheet.

Material a Mild steel sheet of Grade IS: 2062 With 5mm Thick &
6mm thick for rear Dished ends.
Axle Size a 100mm size of the axle of sufficient strength to carry around
Ton Load.
CHASIS a Heavy Duty Double Axle Trailer Chasis with 2 Wheels.

Suction Hose a 5*3 Mtr. & 100 mm Dia.

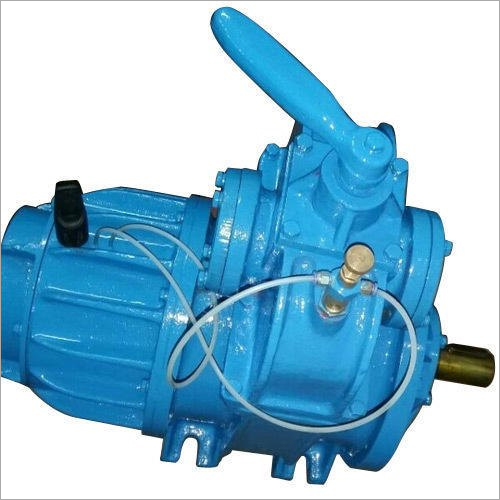

SUCTION PUMP

1.MODEL NO.- ST84D
2.HORSE POWER a 15 HP
3.FREE AIR DISPLACEMENT a 540 M3/Hr,
4.LPM a 9000 LPM
5.VACUUM IN MM HG a 650MM, 92%
6.PRESSURE a 1.5 BAR
7.RPM a 900-1300 RPM
8.BLADES a 6 Blades in one pump
9.12 MONTHS ON REPLACEMENT WARRANTY

Machine Plant a Auxiliary Diesel Engine of Super tech Engineers
With a capacity of 15 HP Kirloskar Make Diesel. Engine Drive Both Pumps .

Control System a All necessary Indicators, instruments and level
Gauge etc.

Drive System a Direct Drive And Fan belt operated
Pumps with rated RPM.

a cPrimary shut off valve
a cSecondary shut off & safety filter
a cCompound gauge
a cLevel gauge
a cTool box
a cMudguard
a cPaint a Epoxy paint inside the tank body
Two coat of zine based red- oxide
Two coat of synthetic enamel

NOTE a ENGINEERS VISIT CHARGES WILL BE EXTRA IF YOU WANT ENGINEER FOR INSTALLATION IN YOUR SITE AREA.
