Schmit Trigger And Comaparator - Application: Engineering Electronics Instruments
Price: 1000.00 INR / Piece
(1000.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Power Supply | External DC Source |
| Power Source | DC Power Supply |
| Components | IC, PCB, Resistors, Capacitors, Connectors |
| Interface | Wire Terminal / Pin Header |
| IP Rating | IP20 |
| Output | Digital |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Color | Black |
| Input | Analog |
| Operating Temperature | 0C to 60C |
| Response Time | Fast, typically < 1us |
| Features | Noise Immunity, High Switching Speed, Stable Output |
| Thermal Conductivity | Standard for PCB modules |
| Product Type | SCHMIT TRIGGER AND COMAPARATOR |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 5V-30V DC |
| Supply Voltage | 5V to 30V |
| Size | Medium |
| Dimension (L*W*H) | Approx. 65mm x 45mm x 18mm |
| Function | Signal Conditioning, Waveform Shaping |
| Weight | Approx 55g |
| Thickness | Standard |
| Capacity | Standard |
| Current Rating | 10mA to 50mA |
| Frequency | DC to Few kHz operation |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Black |
| GSTIN | 0% |
Product Overview
Key Features

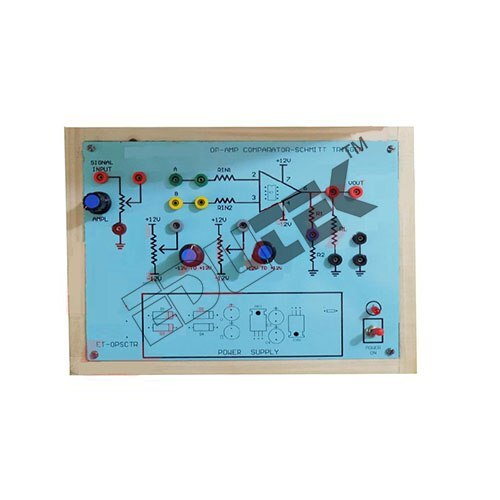

SCHMIT TRIGGER AND COMAPARATOR
It is used to study function of op-amp as comparator-Schmitt trigger.
On board POT to vary input signal
On board 2 varying voltage from -12v to +12v
On board test points to analyze the signal
ON/OFF switch and LED for power indication.
Bare board Tested Glass Epoxy SMOBC PCB is used.
Block Description Screen printed on glassy epoxy PCB
All interconnections are made using 2mm banana Patch cords with built-in power supply
