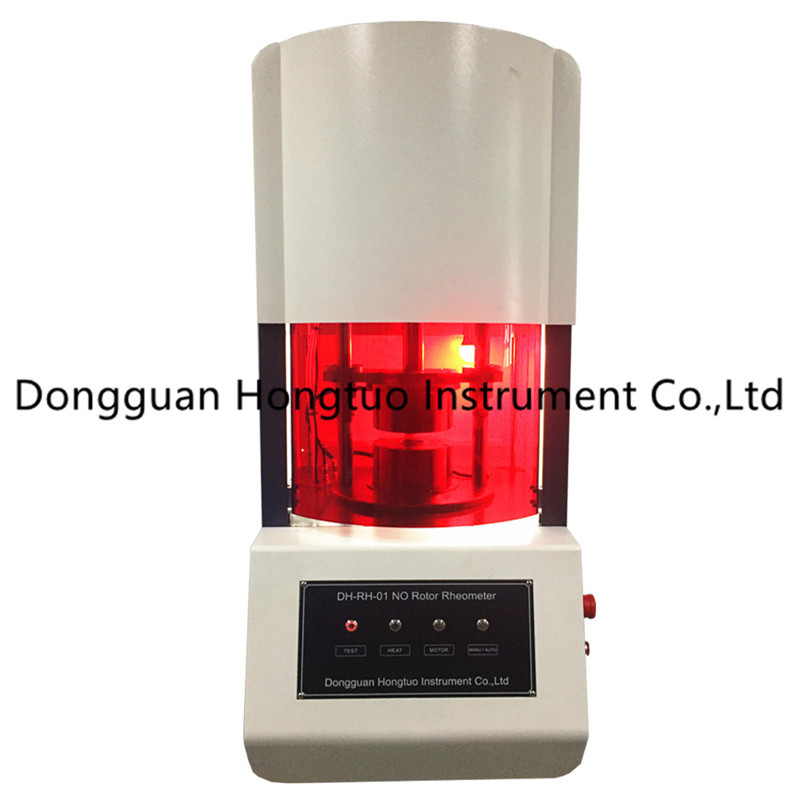

Rubber No Rotor Rheometer For Vulcanization Testing

Name: Rubber No Rotor Rheometer for Vulcanization Testing
Price: 4750.0 USD
Availability: InStock

Price: 4750.0 USD / Unit

Get Latest Price

Minimum Order Quantity :

1 Unit

Brand Name :

Hontotest

In Stock

Features	No rotor design, precise digital control, real-time data acquisition
Mounting Type	Floor standing, caster wheels for mobility
Operating Voltage	220V AC
Response Time	1 second
Humidity	80% RH (non-condensing)
Hardness	Configurable per standard requirements
Number of Specimens	Single specimen per test cycle
Automation Grade	Fully Automatic
Application	Vulcanization testing of rubber compounds
Measuring Range	0 - 25 Nm (torque)
Frequency	50 Hz
Max Height	Approx. 1100 mm
Specimen Size	Diameter 20 mm 6 mm
Test Range	0-25 Nm
Gas Pressure	0.5 - 0.8 MPa
Power Supply	AC 220V, 50Hz
Display Type	Digital LCD/LED touch interface
Port Size	Standard gas/air inlet ports
Temperature	Room temperature to 200C
Accuracy	0.1C (temperature), 0.02 Nm (torque)
Equipment Type	Rubber No Rotor Rheometer
Resolution	0.01 Nm (torque), 0.1C (temperature)
Interface Type	USB/RS232 (optional)
Usage	Laboratory, research, quality control
Capacity	Single test chamber
Machine Weight	Approx. 75 kg
Test Speed	Standard, user programmable
Test Width	Standard test chamber
Test Stroke	Custom programmable based on test
Control Mode	Microprocessor-based digital control
