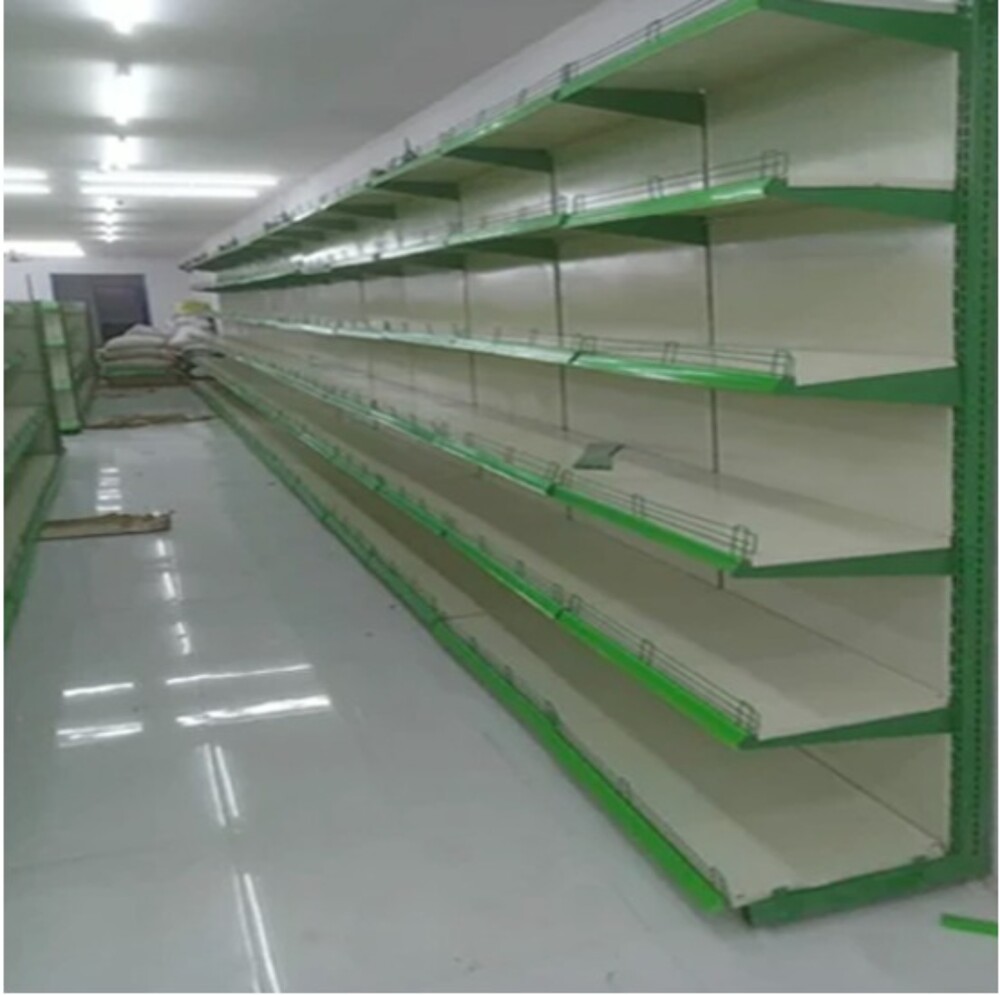

Supermarket Easy To Assemble Retail Display Rack - Color: Green

. Dimensions


Height: 1500 mm 2400 mm (customizable)


Width: 600 mm 1200 mm


Depth: 300 mm 600 mm


Shelf Depth: 300 mm / 350 mm / 400 mm (as required)


Number of Shelves: 46 adjustable shelves


Load Capacity per Shelf: 50120 kg (depending on material thickness)



3. Material


Frame: Mild Steel (MS) / Powder-coated Steel


Shelves: Cold Rolled Steel (CRS) sheet 0.81.2 mm thickness


Back Panel: Solid / Perforated / Slotted panel


Finish: Powder-coated (6080 microns thickness)


Color: Customizable (RAL shades available)


Optional:


MDF or Wooden shelves


Stainless Steel (SS 304/316) for food-grade applications



4. Design Features


Adjustable shelf brackets (pitch adjustment 2550 mm)


Modular boltless design


Anti-rust treatment


Rounded edges for safety


Price tag holders


Branding panel/top header option


Base leveling screws


Optional caster wheels



5. Types Available


Wall-mounted rack


Gondola (double-sided) rack


End display rack


Corner rack


Heavy-duty storage rack



6. Surface Treatment


7-tank chemical treatment process


Powder coating with oven-baked finish


Scratch and corrosion resistant



7. Installation


Knock-down (KD) structure for easy transport


On-site assembly required


Installation manual included



8. Compliance & Safety


Load tested as per standard retail fixture norms


Fire-retardant coating (optional)


Stable base design to prevent tipping
