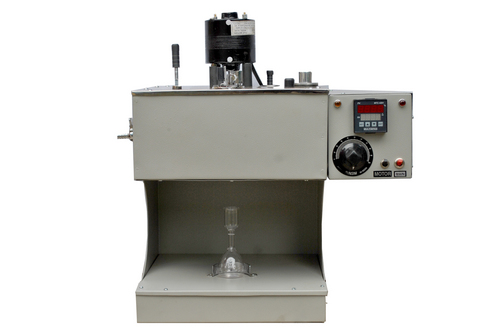

Redwood Viscometer By Double R. Optics & Scientific Works

Redwood viscometer apparatus are widely used in Petroleum Laboratories, Industries, Oil Refineries, Educational Institutions, Research Organizations for standardization and determines the Viscosity of Petroleum products, which flows in a Newtonian liquid except cut back Bitumens and road oils at the set temperature, They confirm to requirement of IP 70. Two adaption of Redwood Viscometers are available. Redwood Viscometers No. I for liquids having Redwood Flow 20 seconds to 2000 Seconds and Redwood Viscometers No. II exceeds 2000 seconds. The complete outfit comprises hemmertone finish, copper/Stainless steel bath with drain plug, electrical heating arrangement, Suitable to operate at 220 Volts 50 Hz AC mains Or gas heating arrangement with silver plated oil cup with precision stainless steel jet, ball value, cover, thermometer clip, stirrer and suitable stand with levelling screws. The sample required to be tested, is to fill in to the required level as indicated by the gauge in a cup having a Stainless Steel jet fixed in the bottom. The temperature is maintained during the test by heating the liquid in a bath surrounding the cup, and the flow time for 50 ml of the sample is measured.
Optional Accessories

Redwood viscometer No.I
Gas Heated Model (Without burner).
Electric Heated Model (Without any control)
Electric Heated Model with separate energy regulator control.
Electric Heated Model with solid state electronic regulator.
Electric Heated Model wi
